Brewing water is the most important raw material for beer equipment, so brewing water is also called "the blood of beer". The particularity of the world-famous beer is determined by the respective brewing water, so the quality of brewing water not only determines the quality and flavor of the product, but also directly affects the entire brewing process. Therefore, the correct and reasonable use of brewing water produced by water treatment is of great significance in production.
Using acid to improve water quality is a simple and effective method commonly used in production. Although acidification cannot change the hardness value of water, it can convert carbonate hardness into non-carbonate hardness, thereby reducing the RA value and improving water quality.
Adding gypsum or calcium chloride has a significant effect on improving water quality and reducing RA value. Reasonable use has no effect on beer quality, and the cost is much lower than acidification. It is a widely used water treatment method in beer production.
Reverse osmosis can remove salt from water more thoroughly. In addition, reverse osmosis can also remove organic matter, bacteria, viruses, etc. in water. Reverse osmosis water treatment is a more common water treatment method in equipment.
Preliminary treatment of raw water to improve the water quality of the water supply to meet the requirements and reduce and delay membrane pollution. In order to extend the service life of the membrane, the main treatment objects are microorganisms, bacteria, colloids, organic matter, heavy metal ions, solid particles, free chlorine, etc. entering the water to meet the water inlet requirements of the reverse osmosis device and ensure the long-term stability of the reverse osmosis device.

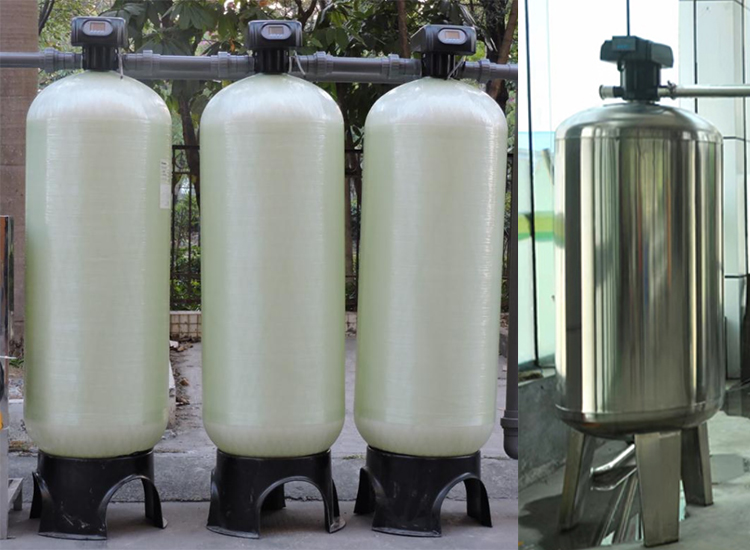

Pretreatment consists of sand filter, activated carbon filter, water softener and security filter.
Sand filter: removes silt, impurities and suspended solids in the water, and reduces the SDI (pollution index density) value of the raw water.
Carbon filter: has the dual functions of adsorption and filtration, and can filter out chemical organic matter, heavy metals, discoloration, odor, residual chlorine, etc. in tap water to improve the taste.
Water softener: removes scale ions such as calcium and magnesium in the raw water through the exchange treatment of sodium type cation exchange resin, and reduces the hardness of the raw water.
Security filter: uses 5μm PPF (polypropylene fiber filter) filter element, which can intercept objects larger than 5μm and extend the service life of the membrane.

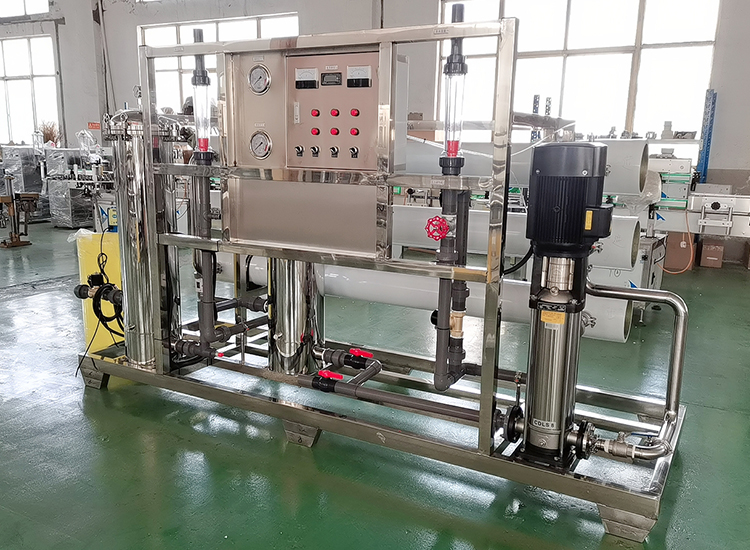

The separation pore size of the membrane is 10-7~10-6cm, which can remove organic matter, heat sources, viruses and other substances in the water. The raw water after the first three stages of pretreatment is deeply separated and treated by the reverse osmosis RO membrane host, so that water that is beneficial to human health is discharged, and the desalination rate reaches 98%. The produced pure water enters the pure water tank. Good system design can ensure that the entire system does not need to replace the membrane element within three years (the service life is related to the water quality of the water source); the online conductivity display can dynamically display the water quality of the purified water at any time. The high-pressure pump provides the working pressure of the membrane permeation water to maintain the water production rate, and diverts it to one or two high-pressure pumps for pressurized osmosis treatment.
This system changes the corresponding output signals of the actuators such as the water inlet valve, high pressure pump, flushing valve, etc. according to the changes of input signals such as high pressure, low pressure, liquid level, reset, switch, etc., so as to realize the automatic control of the standard RO system and realize functions such as pressure protection, liquid level control, power on/full water/automatic flushing, etc.
Water treatment plays a vital role in the beer brewing process and affects the flavor of beer. The correct use of water treatment equipment is essential. If you want to open your own brewery, please contact Degong. We will provide you with corresponding beer equipment solutions and professional technical support. Degong looks forward to cooperating with you!
