The compact Brewhouse section consists of two universal apparatus: Mash-Lauter tun (M-L) and Kettle-Whirlpool tun (K-W). Both devices are able for heating, which gives a wide range of opportunities for the implementation of creative ideas of brewers. Well-thought-out piping system brewhouses makes the workflow simple and convenient. Leave a request and our responsible manager will contact you to discuss the cooperation possibilities.

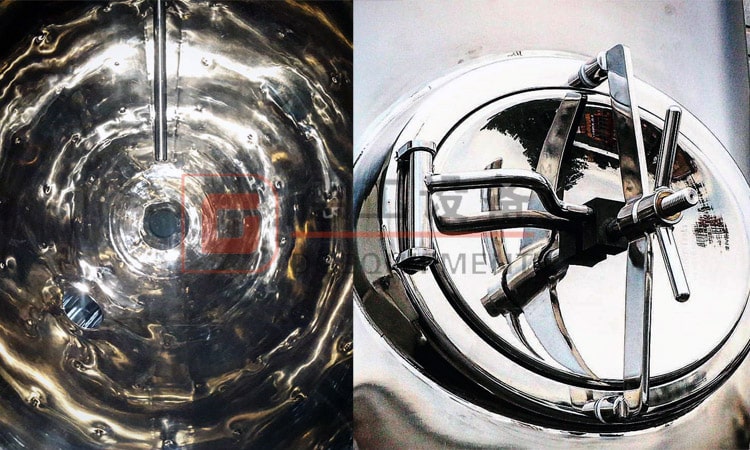

|manhole for fermenter:|
500L Brewing system CE standard 500L beer breing equipment is completed brewing system, it is including the Malt milling system, Mash System, Fermentation system, Refrigerating System, CIP cleaning system and Control system. The six systems work stable with each other to help you brew the tasty...
We plan and design complete breweries, all systems can be designed with the customer’s input for a defined process;
A variety of different vessel combinations and a number of vessels: multifunctional tanks (mash – lauter, kettle – whirlpool), individual process tanks (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks);
Fully piped and wired, including valves and sensors;
Integrated pump system;
CIP system: separated CIP for individual tanks to prevent cross product interference;
Master brew interface control system (touch screen control panel),
Staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping;
Automated lautering, automated water mixing
High quality insulation effect: polyurethane thickness: 80mm
Beautiful weld and polish: all argon gas protection welding. Polishing precision up to Ra0.6µm
World's top brands' electronic components: siemens PLC and touch screen, Schneider button of circuit breaker other pneumatic parts, etc.
Good abrasion resistance material: inner-Jacket(SUS304)thickness: 3.0mm; external-Jacket thickness: 2.0mm; seal head thickness: 3.0mm
Fermentation Unit: standard stainless steel conical cylindrical fermentation tanks; tanks quantity is exactly calculated by fermentation cycle for various beers; all manhole, valves, pressure gauges, fittings etc are included
Bright Tank Unit: standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation; tanks quantity is exactly calculated for various beers and the function; all manhole, valves, stone, gauges, fittings etc are included
Cooling Unit: insulated glycol water tank with or without copper coil for glycol liquid holding and mixing; efficiency chillers or refrigerators with fryonto supply cooling energy; sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger; all pipes, fitting, insulation materials are included
Controlling Unit: electrical controlling cabinet with temperature, on-off controlling for brewhouse; electrical controlling cabinet with temperature, on-off controlling for cooling parts; temperature controller, thermocouple, solenoid valves etc are included; PLC with touch screen panel for special request.
Mature welding technique ensure the leakproofness of tanks, it will increase the service life.
Polishing Technique: Mature polishing technique can avoid the impurities inside of the tanks to ensure the hygiene.
Glass Manhole: The glass manhole design will make the operator check the condition of mash process much easier and safer.
World's famous brand accessories: We use the ABB motor on our mash tanks to make sure the whole equipment works stably and efficient.
If you are interested in our brewery equipment, please feel free to contact directly.
