|Heating source:|| |
|Electric element brand:|| |
|Control panel:|| |
DEGONG Brewing Equipment will size the boiler and chiller system to ensure they match each individual brewery layout.DEGONG can provide complete brewing equipment,including basic brewing system and other assistant equipment,such as bottling machine,canning machine,filter machine,kegging machine,pasteurization machine.......DEGONG will dispatch engineer to perform the complete installation on site,we can be on site to provide start-up assistance and walk the brewers through the complete brewing process with a water brew. If needed, we would even be happy to assist with the initial batches of beer produced on your new system.
|1000L brewery equipment introduction|

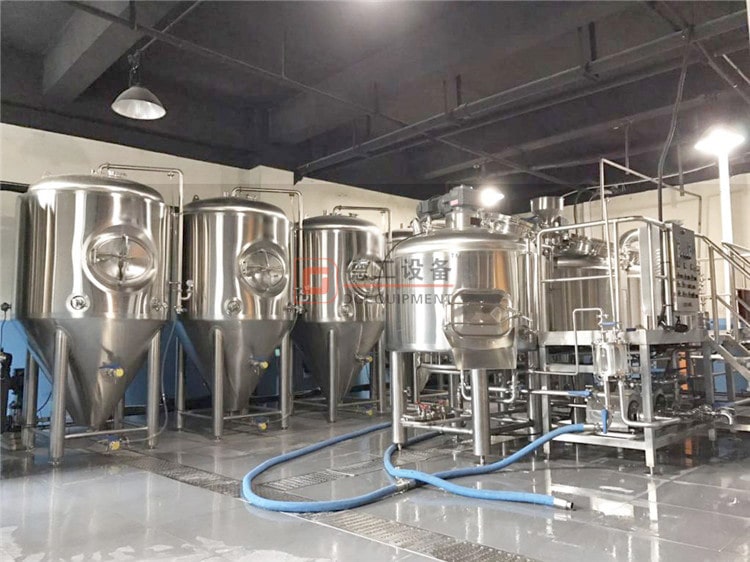

A completed brewing system contains six parts:malt milling system,beer brewhouse.fermenting system,cooling system,control system and CIP system.Each system can be configured differently depending on customer requirement or production plan. Let's briefly introduce some of important systems in the brewing system.

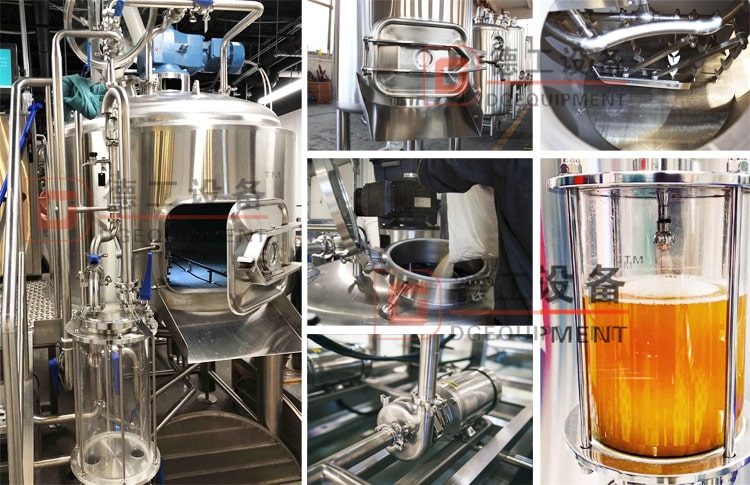

Beer brewhouse,the beer brewhouse contains four functions:mash,lauter,boiling and whirlpool.These four function can be combined into different configurations based on customer’s site,budget and brewing plan.
2-vessel:mash/lauter tank+boiling/whirlpool tank
3-vessel:mash tank+lauter tank+boiling/whirlpool tank
4-vessel:mash tank+lauter tank+boiling tank+whirlpool tank.
If you will add some auxiliary ingredients,we can add a cooking tank.
2-Vessel Brewhouse system is a normal configuration,but you could add a third vessel (3-vessel beer brewhouse)to reduce your brew turn over time.

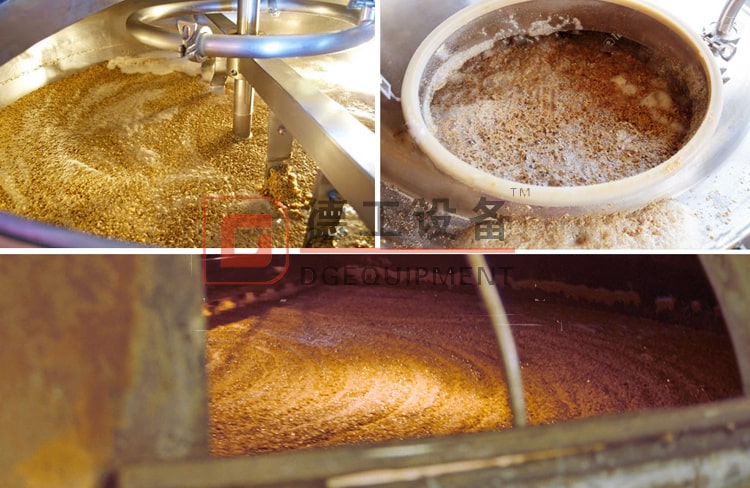

Mash Tun:Mash Tun, Mixer tank is also known as a Mash Tank.Primarily used for beer, mixing crushed grain and hot water.
Lauter Tun:Mainly used to separate wort and spent grains
Brew Kettle/ Whirlpool:Brew Kettle is used for boiling the wort after the mashing process before fermentation.
The fermentation system is the site where the wort is converted to alcohol and carbon dioxide,it generally involves fermentation and maturation.

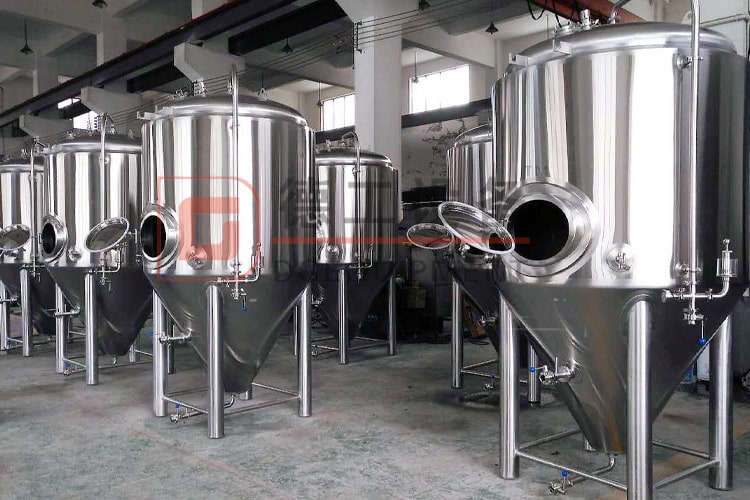

Fermentation tank:It's where the main fermentation takes place, where the wort is converted to alcohol and carbon dioxide.
Maturation tank,also called bright beer tank.These stainless steel tanks are designed specifically to aid in the aging of the beer.
Bright beer tank

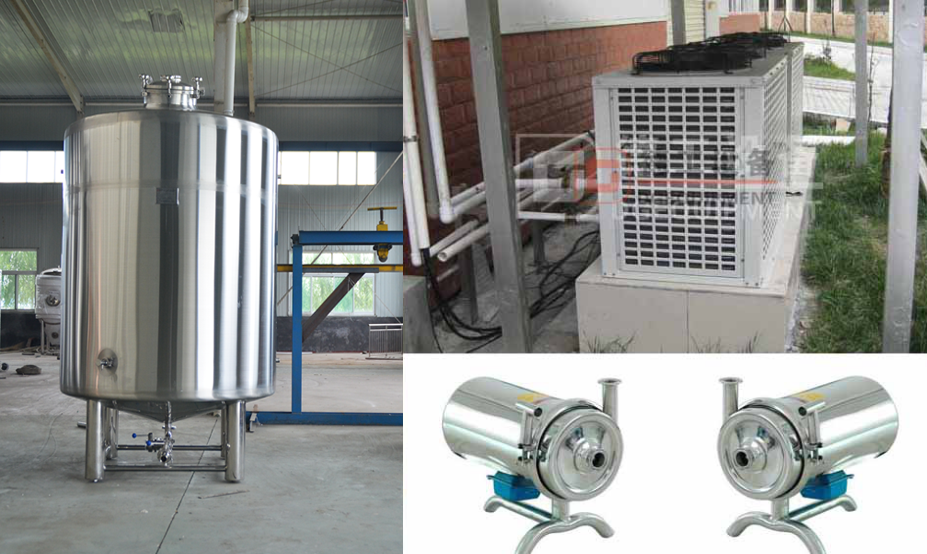

The cooling system contains cold water tank,glycol water tank .
First,when the final step of wort preparation is completed, the temperature of wort is about 95 degrees, and the fermentation process is carried out in a low temperature environment. Therefore, after the preparation of wort, cold water and ice water flow through the plate heat exchanger to exchange heat with the hot wort and quickly cool the hot wort to the temperature needed for fermentation.
Secondly, the fermentation process generates heat. Once the temperature set for the fermentation is exceeded, the cooling system will automatically turn on to cool the fermenter.
If you have interest in DEGONG BEER BREWING EQUIPMNENT,welcome to contact me freely
