Any Size High Pressure Stainless Steel Braided PTFE Fuel Line Oil Gas Hose

We control the materials of PTFE (PTFE) and stainless steel wire according to customer requirements. Some are from Japan and Taiwan, and some are from mainland China. Choose only high-quality materials. We test the leakage of each roll before weaving, and then we cut 300mm and crimp to test the burst pressure after brazing.
Availability:
Quantity:
  • Any size Metal Fuel Oil Delivery Hose

  • DEGONG

Product Description

Any size Metal Fuel Oil Delivery Hose


Produced under the control of ISO 9001:2008 and CE. High-quality products and customer satisfaction are our pursuit. Good integrity cooperation is a bright future.

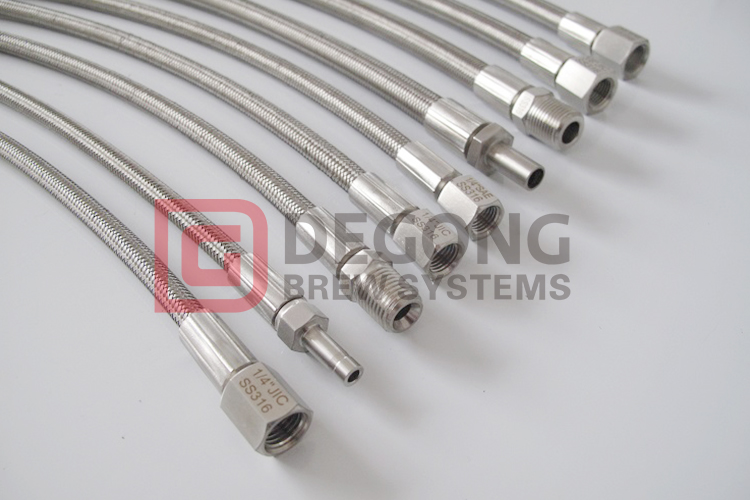

20

PTFE flexible hose specification:

Item Size Inner Dia. PTFE hose thickness   (mm) Working Pressure (bar) Working Pressure (psi) Burst Pressure (bar) Burst Pressure (psi) Bending Radius (mm)
1 3/16" 5 1 206 3000 827 12000 36
2 1/4" 6 1 175 2537 700 10150 45
3 5/16" 8 1 150 2175 600 8700 50
4 3/8" 10 1 135 1957 540 7830 55
5 1/2" 13 1 120 1740 480 6960 70
6 5/8" 16 1.5 100 1450 400 5800 130
7 3/4" 19 1.5 90 1305 360 5220 190
8 1" 25 1.5 65 942 260 3770 270


Product:

Any Size High Pressure Stainless Steel Braided PTFE Fuel Line Oil Gas Hose

Size:

1/8" --- 1".

Fitting Material:

304, 316, 316L.Carbon steel zinc plated.

Hose Material:

PTFE/PTFE, FEP, PFA.

Thickness:

0.76mm --- 1.5mm.

Working pressure:

Max. 6,000 psi.

Burst pressure:

Max. 12,000 psi.

Temperature:

-70 to 260 °C

Thread:

BSP, JIC, SAE, UNF, METRIC, NPT, BSPT, DIN2999...etc.

Connection:

Male / Female.

Length:

12", 24", 36", 48", 60", 72" or as per customer’s request.

Certificate:

ISO 9001:2008, CE.

Package:

Label with necessary information on products, Packaged in plastic bags, Plastic bags in carton boxes, Carbon boxes in wooden pallets or as per customers' request.

Note:

Standard or Non-standard as per sample or drawing are all available.

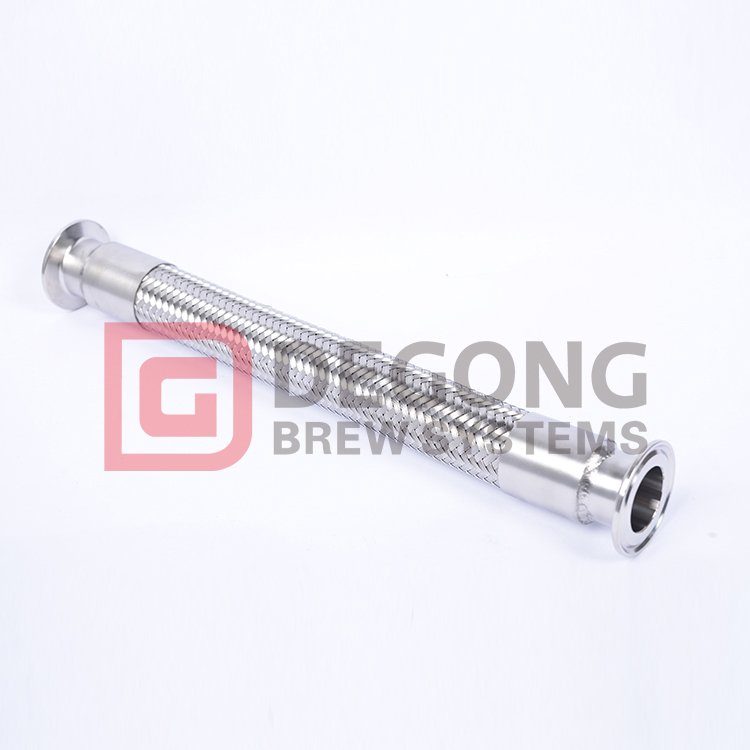

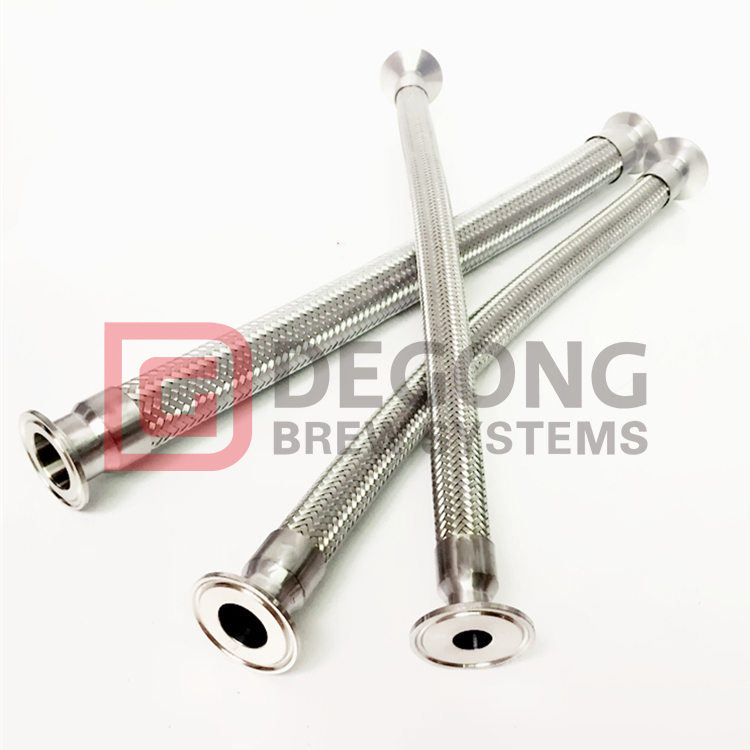

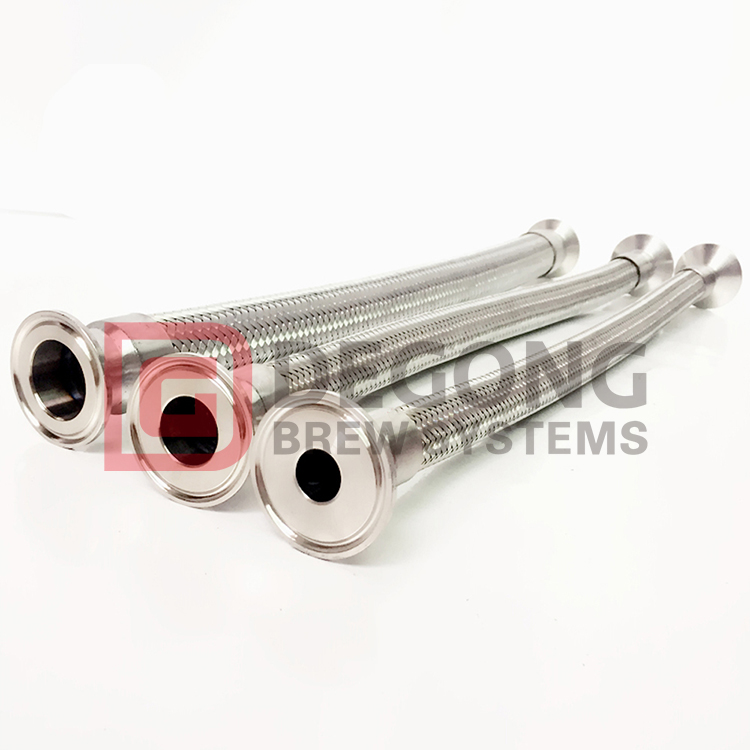

1918171516

Custom logo

Custom packaging

Graphic customization

Welcome to inquire about high pressure stainless steel braided PTFE fuel pipe oil and gas hose.
