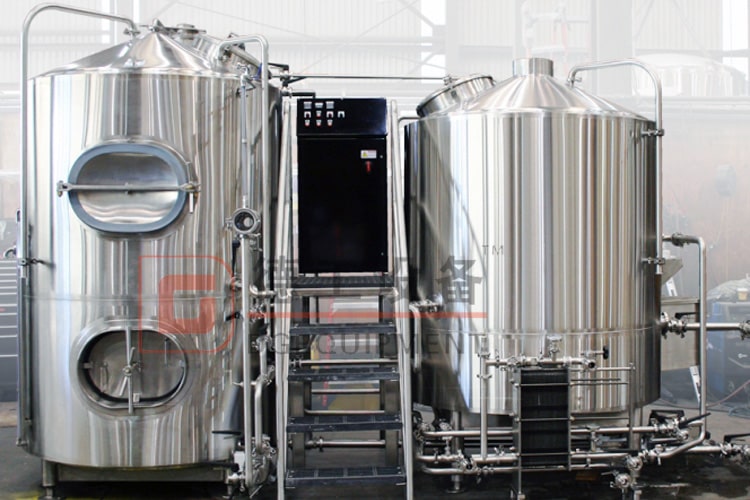

AISI 304/316 Stainless Steel Beer Brewhouse Free Combination for Brewpub, Farms, Beverage Manufacturers, Restaurant

Consisting of an AISI 304/316 stainless steel single-block structure with all its parts already connected, this Brewhouse is ready for operation after connection to the electric, water and/or gas supply lines. Complete with a mash / kettle / Whirlpool tun, a lauter tun, a hot liquor tank and a cooling exchanger, the Brewhouse also provides the possibility to connect another tun for the production of double batches.

Mash/Kettle/Whirlpool tun

• AISI 304 stainless steel material

• Steam heating

• Mechanical Agitator with two blades connected to the bottom

• Internal cleaning spray-ball

• Double-wall thermal insulation

• External glass graduated level

• Tangential inlet for Whirlpool

• Safety probe to control overboiling

Lauter tun

• AISI 304 stainless steel material

• Stainless steel removable filtration plate

• trapezoidal passage.

• Side hatch with chute to unload spent grain

• Internal cleaning spray-ball

• Double wall thermal insulation

• External glass level indicator to control filtration speed

• Rake

• Rotating blade to cut and extract spent-grain

Hot Liquor tank

• AISI 304 stainless steel tank

• Internal cleaning spray-ball

• Thermal insulation

• Water heating system

• Water flowmeter and transfer pump

Components

• AISI 304 stainless steel plate heat exchanger

• Plate degree (°P) cooled inspection station and basin

• Hygienic stainless steel piping and valves

• Flowmeter

• Flowmeter to check the filtration speed and wort clarity

• Manual or pneumatic stainless steel throttle valves

• Liquid transfer pump

Electric control

• AISI 304 stainless steel panel

• Pump and agitator control

• Touch-Screen PLC for the automatic control of the mash and production process with the possibility to memorize the recipes

• Technologically advanced personalized and modular automation system with low energy request

• Interface with analog and digital input/output signals

• Inverter to regulate the speed of pumps and agitator

• Possibility to manage Remote Assistance, Report of the Production Process and implement with utilities and other accessories

Suitable for the production of any types of beer, this Brewhouse is user-friendly, simple to operate and requires no extra labour when being moved or replaced. The wort recirculation process inside the wall under the level of the liquid and the transfers from the lower part that limit the possibility of oxidation of the wort, together with the lautering performed in a independent tun, guarantee the high efficiency of this Brewhouse.

If you want to join in beer brewing, please feel free to contact me.
