DGET-50-5000L
DEGONG
| Gin Distillery Equipment Red Copper Distilling Alcohol 50-5000L |
Standard Features:
All parts can be customized
1. red copper, stainless steel 304/ 316
2. Pot still, top, copper head, column,dephlegmator, condenser, parrot outlet, alcohol collecting tank, CIP, connecting pipes.
3. Sight glasses, Temp sensor, analog temp gauge
4. Electric heating (with heating elements)/steam heating
5. CE, ISO, TUV Certificate
6. One year warranty
7. Semi-automatic control panel
(The first batch you got can reach 65 degrees, and the maximum is 90 degrees.
One batch duration is 2-8 hours, and the total distillation time depends on your expected alcohol purity.)

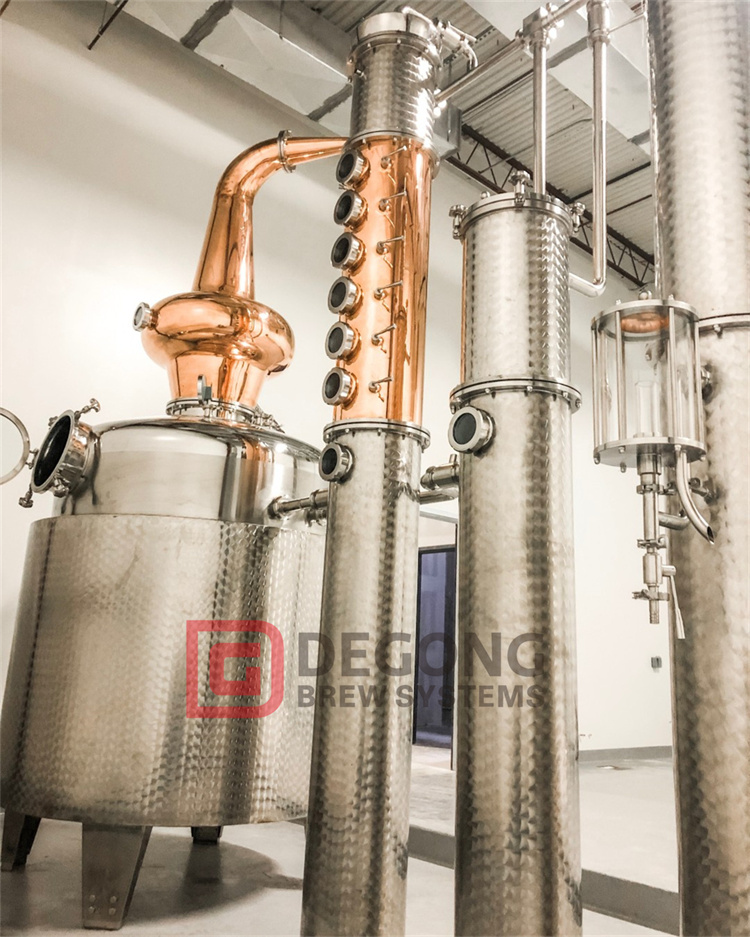

Copper distillery equipment
Component | Volume | Component |
Whisky Distiller | 200-5000L | Still pot,Swan neck,Condenser,CIP,Pipe system |
Vodka Distiller | 200-5000L | Still pot,Onion head,Column,Dephlegmater,Condenser,Pipe system |
Brandy Distiller | 200-5000L | Still pot,Onion Head,Column,Dephlegmater,Condenser,Pipe system |
Rum Distiller | 200-5000L | Still pot,Column,Condenser,CIP,Pipe system |
Gin Distiller | 200-5000L | Still pot,Column,Gin basket,Condenser,CIP,Pipe system |
Multi-Function Distiller | 200-5000L | Still pot,Column,Onion head,Dephlegmater,Gin basket,Condenser,CIP,Pipe system,Collecting tank |

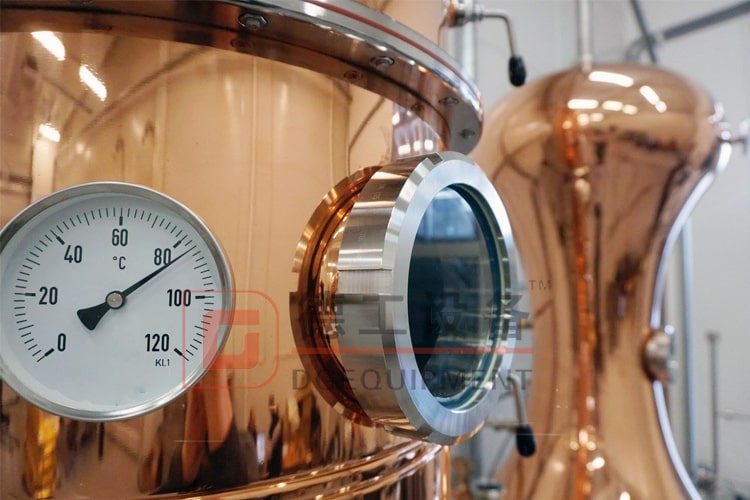

Thermalmeter & Glass sight
Copper column
Producers of the finest spirits rely on the capabilities and effectiveness of the distilling equipment it utilises throughout the process. At DEGONG, we supply whisky, rum and gin making equipment. From all sizes of still – 200 litres to 5000 litres – we will have an option for you.
The plant consists of:
one cavity boiler in copper or stainless steel complete with: insulation for cavity boiler
stainless steel/glass manway
copper stack rectification column
six copper plates
two sight glasses located on side of column, one for light one for viewing
side discharge outlet with valve DN100, manual operated
explosion proof agitator,
manometer and safety gauges for steam jacket
reflux complete with flowmeter
copper tube condenser, dephlegmator
stainless steel cooling coil
glazed basin for temperature and alcohol reading
Contact Alice today |
In our excellent collection of brewing equipment, we offer our clients premium quality Microbrewery Equipment. This brewery equipment is well-manufactured by the use of premium quality components, basic material and sophisticated technology.
