CIP Cleaning System Cleaning In Place 50L-500L Size stainless steel insulated 2/3 tank

CIP Cleaning System are the units which purposes best cleaning in production lines and provides automatic cleaning with water and various cleaning solutions without seperating the machines into pieces like we do in manual cleaning. With another word, they are the easily used automatic systems which provide clenaing the compounded close circuits with high hygiene level.
Availability:
Quantity:
  • DEGONG 50-500L

  • DEGONG

  • 8438400000

Product Description

CIP Cleaning System



WHAT IS CIP Cleaning System ?  HOW IT WORKS?

CIP Cleaning System are the units which purposes best cleaning in production lines and provides automatic cleaning with water and various cleaning solutions without seperating the machines into pieces like we do in manual cleaning.  With another word, they are the easily used automatic systems which provide clenaing the compounded close circuits with high hygiene level.  It consists of the head letters of the word “cleaning in place”. This system is quite effective about hygenical cleaning and succesfully used in high capacity tanks, long and complex pipe lines for years. The use of cip cleaning system also prevents the operator to touch dangerous chemical cleaning materials.

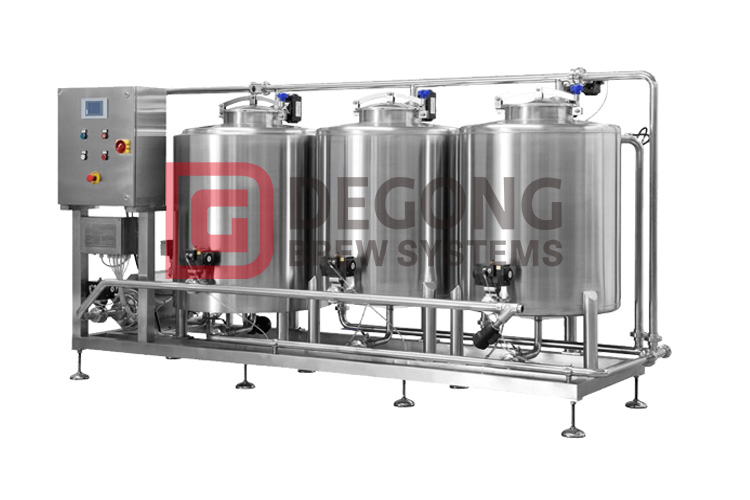

cip01

Custom design CIP system 500l


It is completely made of AISI 304 stainless steel quality.

It consists of three tanks containing acid, caustic and water.

The tanks are also insulated and vertically cylindrical.

The tanks consist of automatic valves, pumps, heating systems and piping equipment.

The cleaning process is doing by automatically with time, temperature, flow and concentration parameters.

500 lt, 1000 lt, 2000lt, 3000lt capacities are available.

cip02

3vessel/tank cleaning system


WHAT IS THE WORKING PRINCIPAL OF CIP Cleaning System ?



This CIP system first of all, shortly cleans the residual substances which stayed in the line with swashing water for the next use of line. First swashing water is not used again in the next swashings, and it is got away from line as contaminant.  After this operation, high effective cleaning solution is sent to pipes and tanks for complete cleaning of the line and for preventing the microbiological contaminants to occur. After this solution provides the complete cleaning of the line, it is recycled into the solution tank for repeat using. With this way  the save of solution is provided. At last, clean rinsing water is sent into the line. This operation’s aim is to throw the cleaning solutions which are used in former operation away from the pipes and tanks. Rinsing water is storaged to be used as swashing water fort he next time. Cleaning water and cleaning solutions can be heated if desired.


Flowing speed is the most important point in providing complete cleaning of pipe lines. All the equipments should be chosen by considering this point. Tanks' cleaning on the other way, is provided by spraying cap (CIP balls). Tanks which are in production line should have these caps.
