8BBL Stainless steel Beer Equipment
| Product description |
8BBL Beer Brewing Equipment is usually suitable for independently owned breweries that are far smaller than large-scale enterprise breweries. The characteristics of this beer brewery are usually emphasizing flavor and brewing technology. We provide small breweries (small breweries) with a production rate of 500 liters (5hl) to 3500 liters (35 hl) per brew.
| Features |
Small investment, quick results, high quality, low price, quick return on investment, long service life of equipment, convenient operation and low cost. Strong technical force.
| 8BBL Beer Brewing Equipment Specification |
| Output/Brew | 10HL/8BBL |
| Brew/Week | 2~6 |
| Output/Week | 20~60HL |
| Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Steam/Electric heating |
| Area Request | >70M2 |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
| 8BBL/1000L Beer Brewing Equipment Configuration |
| General specification for 1000L Beer Brewing Equipment | |||
| Name | Components | Capacity | Specification |
| Grain Milling Unit | Rolling Miller | 300~500kg/hr | Double roller |
| Power:1.5Kw | |||
| Noise:45±3db | |||
| Brewhouse Unit | Mash/Lauter tun | 1000L (total 1250L) | Side mounted grain outdoor with grain chute |
| Laser cutting V-wire False Bottom | |||
| Kettle/Whirlpool Tun | 1000L (total1300L) | Steam heating | |
| Tangential whirlpool inlet | |||
| Sanitary leveling sight glass | |||
| Hot water tank | 1000L (total1150L) | Sanitary leveling sight glass | |
| Yeast feeder | 20L | Tri clamp aeration port with ball valve | |
| Heat exchanger | 8M2(Effective area) | Completely 304 SS Corrugated plates | |
| pump | 3M3x2PCS | ABB, Sanitary SUS304, VFD control | |
| Pipe and fittings | As design | completely SS304, Work Platform is included | |

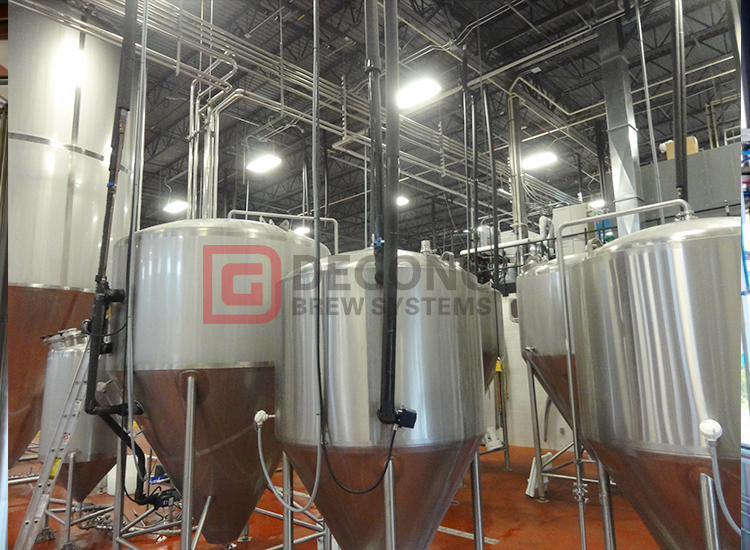

| Fermentation unit | Fermenter | 2000L(total 2500L) | Dimple cooling jacket on cone and bottom |
| Side manway | |||
| Tri clamp CIP ball | |||
| 60 degree cone bottom | |||
| Perlick style full sanitary sampling valve | |||
| Carbonation port and level tube for special request | |||
| Filtration unit(optional) | Kieselguhr Filter | 500kg/hr | Power: 1.2kw |
| Filter Area: 1.1M2 | |||
| SUS304 | |||
| Bright beer tank | Bright beer tank | 2000L(total 2400L) | Dimple cooling jacket on cone and bottom |
| Level tube for checking | |||
| Tri clamp CIP ball | |||
| Side manway | |||
| Perlick style full sanitary sampling valve | |||
| Carbonation port with tri clmap carbonation stone | |||
| Glycol Chilling Unit | Glycol Water Tank | 2500L(total 2750L) | Insulated conical top and sloped bottom |
| Chiller | 5HPx2PCS | Cooling Capacity: 11000Kcal/5HP | |
| Installed Power:5.6kw | |||
| Refrigerant: Freon R404A ,R410A | |||
| Noise:70-80db | |||
| Coperland compressor | |||
| PVC pipe | As designed | Solenoid valves for glycol inlet to tanks are included | |
| Glycol water pump | 3M3 | Sanitary SUS304, VFD control | |
| Control unit | Brewing and fermetation process Controlling | Floor type | PLC control with touch screen for special |
| PC or mobile remote control for special request | |||
| CIP | Caustic Tank | 100L | electric heating element inside, With bimetal thermometer |
| Sterilization Tank | 100L | H2O2 | |
| Pump | 3M3 | VFD control | |
| Keg cleaning | Double Station Keg Rinser | 40-60kegs/hr | Heating: Electric, Power: 15kw(steam for optional) |
| Keg filling | Single Station Keg Filler | 30-40kegs/hr | Input Power: 0.1 kw |
| Bottling line | 8 heads | 400-500 bottles/hr | Manual |
| Others | Option | Can be Customized | Auger System |
| Grain Case | |||
| Grist Hydrator | |||
| Piping flow panel for Brewhouse | |||
| Brewhouse Separate PLC Controller | |||
| Contact us |
We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
