DGET-7BBL
DEGT
8438400000
Whether you are brewing your favorite light bodied ale, a crisp lager, or seasonal beer, having the right equipment is essential to opening and operating a beer brewery. There are many choices when it comes to selecting manufacturers that produce individual pieces of equipment or complete turnkey brewing system for breweries. DEGONG can always provide the most professional suggestions according to your specific requirement.
Beer brewhouse introduction |

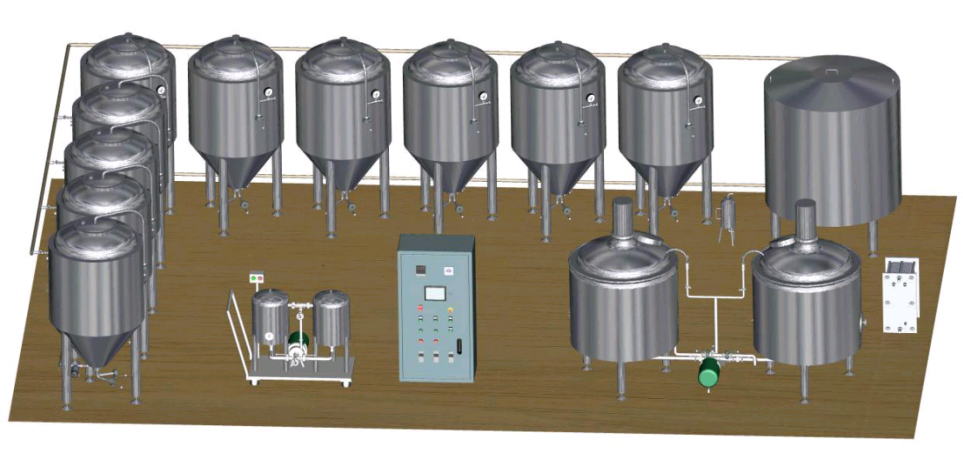

The size of your building are the most important factors to consider when purchasing a brewery equipment.When designing your brewery’s floor plan, special attention needs to be given to the layout for creating an optimized space that allows for supply and material storage, access into the brewery, efficiency and flow of the materials and equipment used in the brewing process, beer storage, restaurant, bar, and retail space!Degong can design the most reasonable and the most economical layout according to the customer's layout.

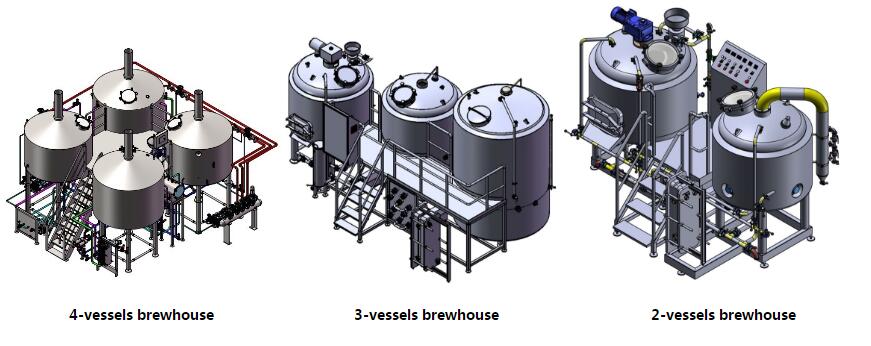

The brewhouse contains four basic function tanks,which is “Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun” .They can be combined to different configurations based on your output requirement and budget,such as 2-vessel brewhouse,3-vessel brewhouse or 4-vessel brewhouse.
Before buying,please think about how much vessels of mashing do you need? Or how many batches of beer do you produce per day? Different mashing technology has different configuration way, 2-vessels of mashing system are common mashing configuration for 1000L brewhouse, consists of mash/lauter tank, kettle/whirlpool tank,and normaly,the brewhouse also will needs to equip hot water tank to support hot water for other tanks.
Brewhouse System
mash/lauter tank with Siemens VFD motor for raker,easy installation false bottom,,high accuracy temperature sensor,sparage ring and cleaning ball
Boiling/whirlpool tank with Siemens VFD motor for agitator,tangential port for whirlpool,with steam jacket or electric heating pipe,high accuracy temperature sensor,cleaning ball.
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel cladding is even the unique because of easy maintenance and clean
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
Stainless steel hops filter
All pipings, pipes maniford and fittings
Steam heating/electric heating or direct fire heating
Weather you want to brew craft beer or brew commercial beer,weather you want to start a new beer brewery project or expand your brewing scale.No matter what you want to brew lager or ale,stout beer or light beer,barley beer or wheat beer,fruit beer or corn beer,low concentration beer or high concentration beer.......DEGONG brewing equipment always can meet your requirement.
If you have interest,welcome to contact me freely
