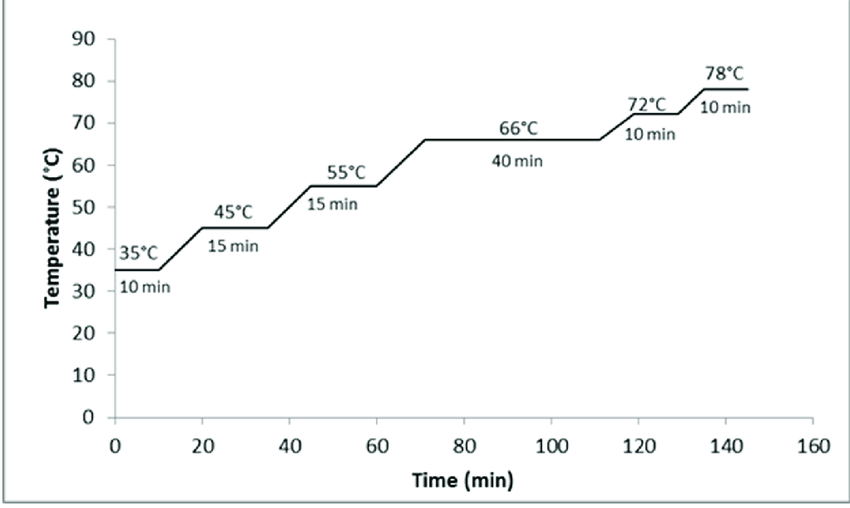

The beer mashing is a crucial step in the whole brewing process.Mashing is to convert the starch in malt into sugar under the combined action of a certain temperature and time, which is finally fermented into alcohol and carbon dioxide by yeast. The various enzymes in the malt play different roles, and the temperature control affects the effect of the enzymes, which in turn affects the ratio of fermentable and non-fermentable sugars in the final wort, and ultimately the beer body you get.
Beer brewhouse introduction

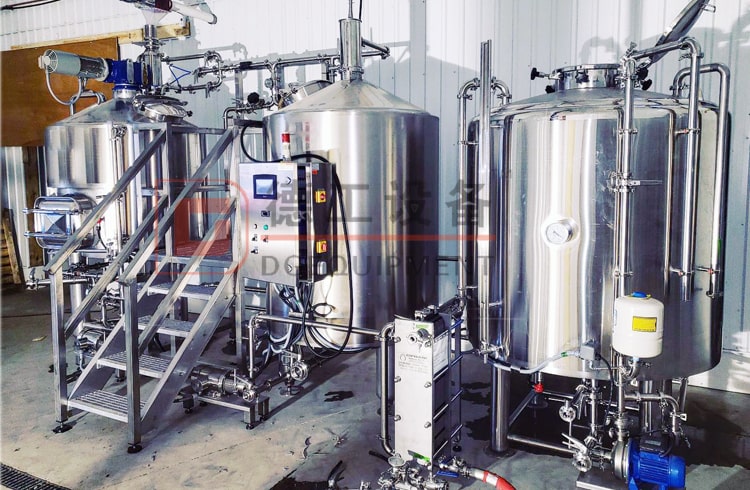

DEGONG beer brewhouse system can be designed according to different brewing requirements of customers.It can be combined to 2-vessel/3-vessel/4 vessel beer brewhouse.2-vessel beer brewhouse is a good choice for 600L brewing system.The 2-vessels 500L beer Brewhouse consists of two special tanks: Mash preparation-Lautering tun (M-L) and Kettle-Whirlpool tun (K-W). Both tanks are able for heating, which gives brewers multiple opportunities to mash with different brewing method.
The 2-vessel beer brewhouse/beer mashing system can accomplish 2-3 batches of saccharification every day. If you want to complete more batches, we can choose a 3-vessel (mash kettle,lauter tank,whirlpool tank) or 4-vessel(mash tank,lauter tank,boiling kettle,whirlpool tank)beer brewhouse.
The pipe connections are all connected by clamps, which reduces the sanitary dead angle and makes cleaning more convenient and thorough.
All electrical components are imported famous brands, such as Siemens motors, ABB pumps, and Omron&Schneider control cabinet components.
Both the pump and the stirring motor are speed controlled by VFD to avoid the compression of the wheat grains caused by the pump speed being too fast, thereby reducing the filtering speed of the wort.
All sheet pipe fittings are food grade stainless steel 304.
600L brewhouse Configuration
mash/lauter tank+boiling/whirlpool tank
Optional hot liquid tank
Suitable microbrewery,restaurant/pub used brewery
mash tank+lauter tank+boiling/whirlpool tank
mash/lauter tank+boiling kettle+whirlpool tank
Optional hot liquid tank
Suitable middle size brewery
mash tank+lauter tank+boiling kettle+whirlpool tank,Optional hot liquid tank
Suitable for large brewery equipment,such as 3000L,5000l,50bbl
Electric heating is suitable to equipment below 500L.
Most European customers like steam heating,but Irish customer like electric boiler better,because the using of steam boiler is very strict and it is very inconvenient in Ireland.Most South American customers like direct fire heating method,because the electric is more expensive.But What I said is just a case in general, of course, what method the customers choose is according to the specific circumstances.
Steam heating is suitable to equipment above 500L.
Direct fire heating
Direct fire heating is suitable some place,where electric is very expensive.

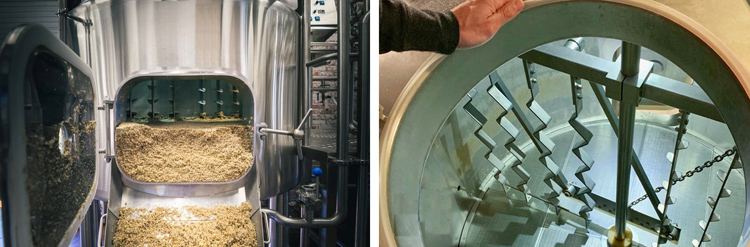

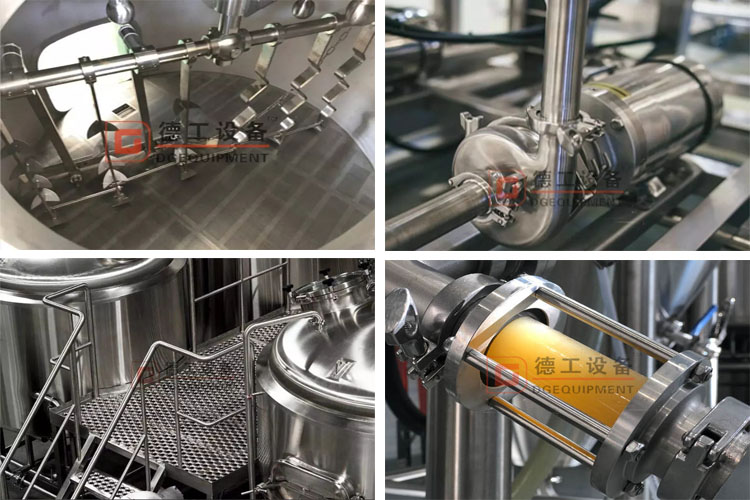

mash/lauter tank with Siemens VFD motor for raker,easy installation false bottom,,high accuracy temperature sensor,sparage ring and cleaning ball
Boiling/whirlpool tank with Siemens VFD motor for agitator,tangential port for whirlpool,with steam jacket or electric heating pipe,high accuracy temperature sensor,cleaning ball.
Hot liquid tank with steam jacket or electric heating pipe,high accuracy temperature sensor,cleaning ball.
Hot water pump
Plate heat exchanger
Wort aeration device
If you have interest,welcome to contact me freely
