5BBL Alcohol Brewing System Restaurant/hotel Used Combined Micro Brewery Equipment Copper Beer Brewhouse

Micro beer brewhouse is widely used in restaurants, pub and bars. DEGONG micro brewing equipment has high production efficiency and can produce delicious craft beer.

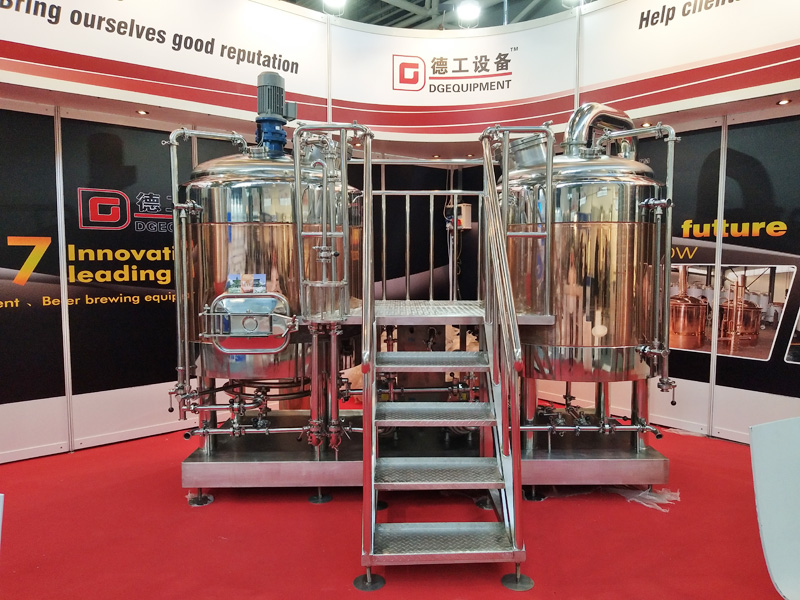

5BBL Brewhouse assembly adopted with 2 vessels: Mash/Lauter tun and boiling/whirpool tun.Steam heating method is better for its stablity and effciency.All of the tank will have separate steam jacket in order to improve tanks’s using efficiency and adopted with working platform for operating.

5BBL Beer brewhouse basic configuration:

1.Mash/Lauter tank

Modular 4 parts screen sieve separating the wort bath from lautering area.

Sieve flutes width- 1 mm.

Sieve loading - 120-160 kg/ m2

Volume + ~30% headspace

Inner-shell (SUS304), thickness: 3.0mm;

External-shell (SUS304 OR COPPER), thickness: 2.0mm;

Jacket(SUS304),thickness:1.5mm;

Insulation thickness: 100mm;

Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.

Assembly:

-Top domed thermostatic hermetic closed glass manway door.

-VFD agitator motor SIEMENS.

-Top domed lighted sight glass.

- PT100 temperautre sensor probe

- Sanitary centrifugal 1.5kw mash pump SIEMENS with VDF Danfuss controller.

- wort /water inlet.

- Quick installed Spray CIP balls.

 -Auto spent grain out by reversing rakes
-Sparge arm; False bottom with 0.7mm gap;

2.Boiling/whirlpool tank

Function– wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.

Volume + ~30% headspace

Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;

Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.

Assembly:

-Top domed thermostatic hermetic closed glass manway door.

-VFD agitator motor SIEMENS.

-Top domed lighted sight glass.

- PT100 temperautre sensor probe

- Sanitary centrifugal 1.5 kw mash pump SIEMENS with VDF Danfuss controller.

- wort/water inlet/outlet.

- Tangential port

- Quick installed Spray CIP balls.

3.Two stage heat exchanger used for wort cooling by city water and and glycol water.Meanwhile the heated city water(after cooling wort the water will change to hot) can be used for next brewing or cleaning tank to save energy.The system also configure with two sanitary frequency controller pumps, providing a low transfer speed for filtration and sparging and high transfer speed for intensive and effective system cleaning.All of the pipes and valve are food grade SUS304.
