500L Small Restaurant Used Craft Micro Brewery Equipment Mini Electric Brewhouse Brewing Systems for Sale

Beer Brewhouse combination is flexible according to your needs and daily work shift. In general, the brewhouse's main tank: mash tun,lauter tun, kettle and whirlpool tank ,which is combined freely from two vessels to four vessels, heating method is electrical or steam heating or direct fire.
Material:
Heating source:
Size:
Electric element brand:
Control panel:
Quantity:
  • DGET-500L
  • DEGT
  • 8438400000
Product Description


Micro beer brewhouse is widely used in restaurants, pub and bars. DEGONG micro brewing equipment has high production efficiency and can produce delicious craft beer.

Brewhouse combination is flexible according to your needs and daily work shift. In general, the brewhouse's main tank: mash tun,lauter tun, kettle and whirlpool tank ,which is combined freely from two vessels to four vessels, heating method is electrical or steam heating or direct fire.For 500L beer brehwouse,2-vessel beer brewhouse with "mash/lauter tank+boiling/whirlpool tank" is the normal choice

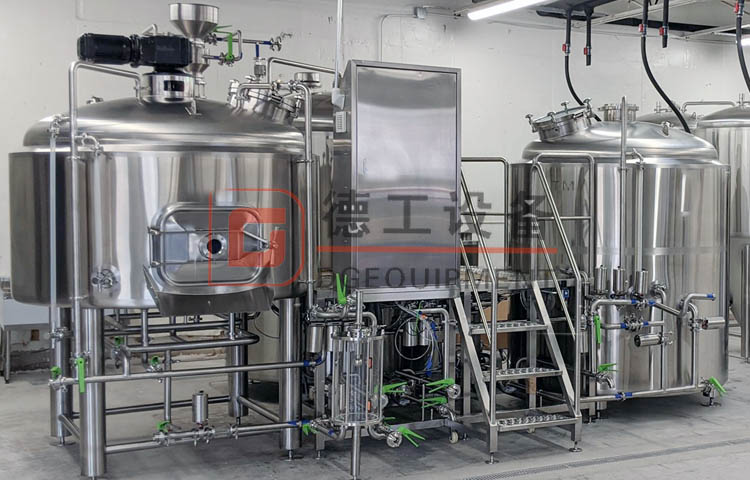

beer brewhouse



2-Vessl 500L beer brewhouse introduction

1.The malt mash/lauter tank – with special sieve for the filtration of malt mash (separation of liquid wort from solid parts of malt)

2.The boiling/ whirlpool tank –boiling wort and separate solid rests of hops from wort

3.Equip with auto grain out processing device on lauter tank

4.Motors with agitators for mixing and cutting of malt mash

5.VFD speed and function controlled raking system, agitator and pumps

6.Tanks with electric heating pipe and temperature control

7.Tangential inlet for proper centrifugal force for efficient trub separation on whirlpool tank

8.CE or UL Electrical System including motor and pump

9.Stainless Steel Plate Two Stage Heat Exchanger with integrated temperature display

10.Ergonomic and efficient 304 stainless steel work plateform with easy access to all vessels and brewing functions

11.Wort aeration candle (may be used as external part)
12.Stainless steel hops filter

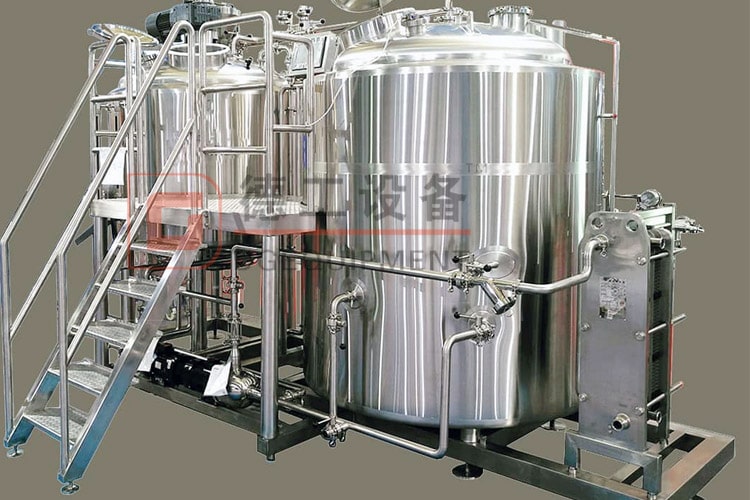

beer brewhouse


Options

Hot Liquor Tank – Designed and Sized for Double Brew efficiency

Cold Liquor Tank – Fully insulated and integrated

Steam,gas directly heating for brewhouse

External Calandria for quick and efficient wort heating, enabling rapid and vigorous boiling in the brew kettle

Air Actuated Automatic Butterfly Valves

Hop Gun/Wort Grant/Grist Hydrator/Hop Back Tank

Steam generator,eletric/diesel/gas generator for steam heating method

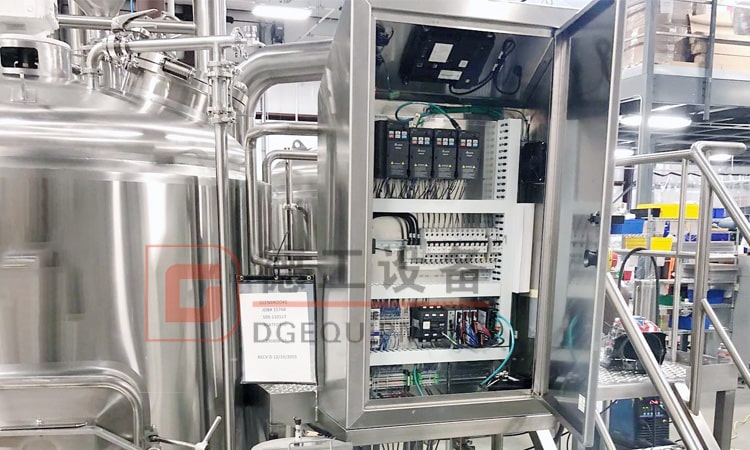

beer brewhouse control panel

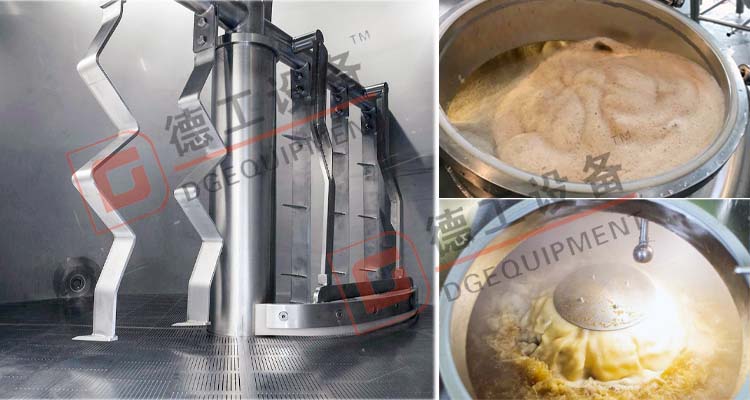

beer mashing and lautering


beer mashing and lautering
