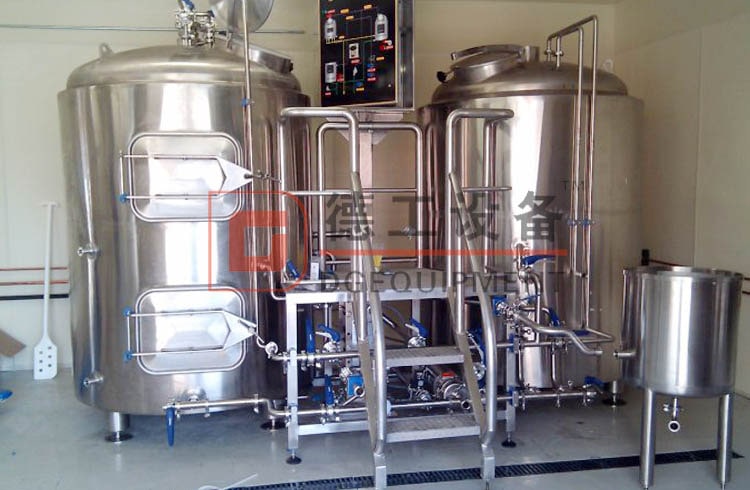

The beer brewhouse is designed just for the Canadian beer brewing market, with grist hydrator, gearbox, grant, skid mounted platform, two pumps, multi-positioned butterfly valves. We are specialized in manufacturing different types of industrial breweries to different clients in the world. The full line products including milling, mashing, fermentation, cooling, filtration, filling and other related processes. We focus on each brewing system to stringent testing procedures before publishing them in the market.
Mash/lauter tun+boiling/whirlpool tun
Mash/lautet tun+boiling/whirlpool tun+hot water tun
mash/lauter tun/hot water tank combined vessel + boiling/whirlpool tun
turnkey system for 2-vessel mash system
Constructed of SUS 304; Brushed outer shell
20%~30% head space
Thickness of insulating layer: 80mm
Interior thickness: 3mm, Exterior thickness: 2mm
Heating: Steam, Electric or Direct fire.
Mechanical agitation and raker system: frequency control
Top mounted manway, sight glass optional
Cleaning: 360°rotary spray cleaning ball
False bottom: V-Wire False Floor Included in Mash/Lauter Tun – virtually guarantees consistent wort flow
Liquid-level with scale connection pipe
Condensate outlet pipe at kettle
LED light fixture
Thermowell for temperature,PT100 Temperature Probe.
Plate Surface protection, ribbon polished on welds.
plate heat exchanger
mash system pipe connection

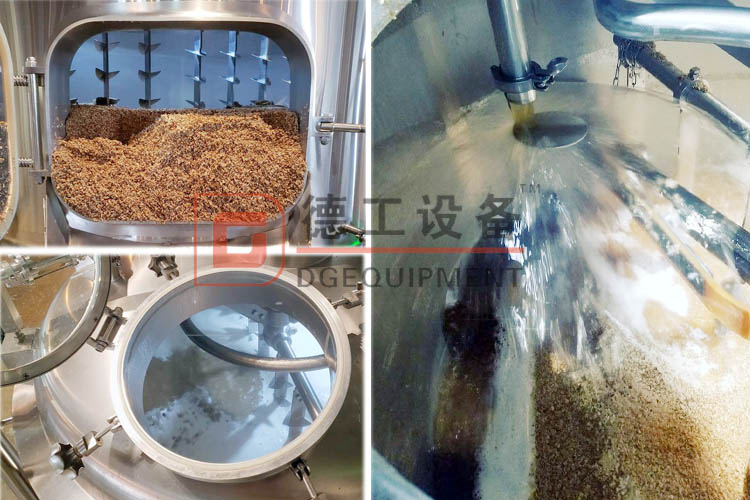

beer mashing system details
If you are interested in beer brewhouse, please feel free to contact me.
