500L -1000L SUS304/Copper Beer Brewing System Easy Installed Brewery Equipment Widely Used in Bar/restaurant/brewpub

If you plan to open a middle scale to large scale brewpub, microbrewery, nanobrewery, beer hall or distribution, DEGONG 500L-1000L beer brewery equipment is a good choice for you.  500L -1000l beer brewhouse comes in multi-vessel brewhouse configurations,which include four functions of mash,lauter,boiling and whirlpool.For 500L-1000L beer brewhouse,2-vessel electric/steam heated brewhouse is the most popular configuration.
Material:
Heating source:
Size:
Electric element brand:
Control panel:
Quantity:
  • DGET-500L-1000L
  • DEGT
  • 8438400000
Product Description


If you plan to open a middle scale to large scale brewpub, microbrewery, nanobrewery, beer hall or distribution, DEGONG 500L-1000L beer brewery equipment is a good choice for you.  500L -1000l beer brewhouse comes in multi-vessel brewhouse configurations,which include four functions of mash,lauter,boiling and whirlpool.For 500L-1000L beer brewhouse,2-vessel electric/steam heated brewhouse is the most popular configuration.

1000L beer equipment




2-Vessel beer brewhouse introduction

The 2-vessels 500L-1000L beer Brewhouse consists of two special tanks: Mash-Lauter tun (M-L) and Kettle-Whirlpool tun (K-W). Both tanks are able for heating, which gives brewers multiple opportunities to mash with different brewing method.

The 2-vessel beer brewhouse/beer mashing system can accomplish 2-3 batches of saccharification every day. If you want to complete more batches, we can choose a 3-vessel (mash kettle,lauter tank,whirlpool tank) or 4-vessel(mash tank,lauter tank,boiling kettle,whirlpool tank)beer brewhouse.

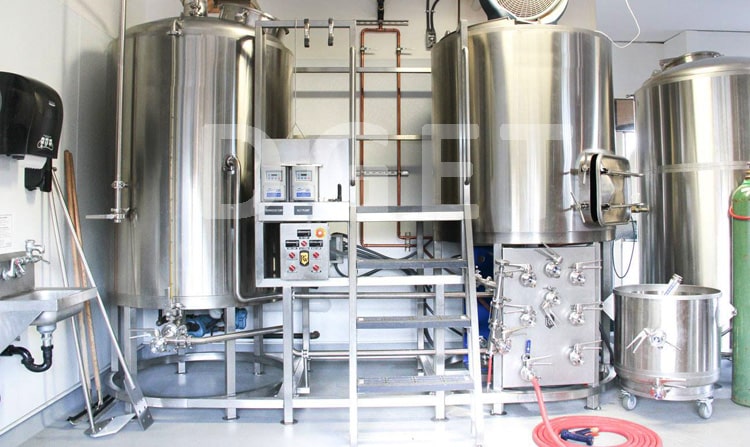

2-Vessel beer brewhouse



Heating System

The source of heat is the heart of your brewhouse. Whether electric, steam, or direct/indirect fire is the best for your brewery depends on a range of factors. Your beer brewhouse size, the available utilities, and the initial and ongoing costs all need to be considered when deciding on a heat source.


500l beer brewhouse tanks features

1

M/L+K/W

Net capacity: 500L, Gross capacity: 650L

Stainless steel 304 thickness:

Inner = 3mm;External = 2.0mm

Double dish heads on top (SUS 304), mirror polished outside

Н = 2150mm, Ø = 1060mm

Thermal insulation (polyurethane foam) – 80 mm;

Easy clean and detachable sparging spray ring

Top manhole: Round glass manhole, print the customers logo, Diameter: 400mm;

Heating method: steam heating,gas heating or electric heating

360° coverage CIP spraying ball

Temperature measurement way: PT100

100% TIG welded joints;

4pcs completely ST.STEEL 304 heavy duty legs with leveling pad

Component of the whole beer brewhouse

1.1

Mash tun/Lauter tank

Configuration:

Lauter tank equipped with plow knife (raker knife), ABB motor, 2.2KW, with motor cover and polished

Side mounted grain outdoor with grain chute, size is 430*330mm

With semi-automatic grains removing plate

Laser cutting T-wires false bottom (filter), plate gap: 0.8-1.0mm; Material is SUS 304.

1.2

Kettle/ Whirlpool tank

Configuration:

Top manhole: Round glass manhole, print the customers logo, Diameter: 400mm .

Tangential whirlpool inlet

1.3

Steam generator(Optional)

Р= 50 kg-steam/hour,

1.4.

Hot water tank(Optional)

Gross volume =1000l,

Pump for hot water

1.5

Wort pump

Flow 3m3/h, lift 18m

Sanitary SUS 304

Rev: 2880r/min Capacity:3000L/h

Complete valves, fittings and all parts

ABB motor

1.6.

Work platform

Material: SUS 304

 Platform, stairs, handrails

1.7.

Plate Heat

exchanger

Stainless steel 304 material

Design pressure:1.0 Mpa;

Working temperature:170°.

Tri-clamp quick-installed, two stage

5m2

1.8.

PLC

controller

The touch screen placed on the work platform

 And the control box placed to another place, close to the brewhouse.

 The touch screen size is 15inch, the language is English

 The control box material is ST.STEEL 304

 The touch screen and PLC brand are Siemens

1.9.

Hops filter

Material: SUS 304

Filter net inside

1.10

Wort oxygen device

Includes sight glass, Venturi, yeast adding tank, temperature gauge, Inflatable head and inflatable hose


3-vessel beer brewhouse


brewhouse details


Features of beer brewhouse:


  • Fast and easy setup

  • Advanced touch-screen controls from with remote-control capability

  • Insulated mash tun with rakes, plow and grist hydrator

  • Insulated electrically-heated brew kettle

  • Glass wort grant with automated pump controls

  • Hard piping and platform

  • Stairs with wheels for easy access under platform

  • On demand water supply control optional


Company information

QQ截图20200831115415-min


If you have interest in DEGONG BEER BREWING EQUIPMNENT,welcome to contact me freely
