500L 1000L Beer Brewing Equipment Brewery System Stainless Steel Craft Brewhouse Plant

Building your own brewery can be a very daunting adventure and a huge investment, so it's important to set some goals and have a clear idea of what you want before buying equipment. Any questions please feel free to contact me.
Availability:
Quantity:
  • DG-500L
  • DEGONG
Product Description

500L 1000L Brewery System


Model DG-500L
Capacity 500L/Batch
Material SUS304
Combination method Mash/lauter tun, kettle/whirlpool tank
Application Restaurants, bars, hotels, brewery
Heating way Steam heating/Electric heating/Direct fire heating
Voltage AC380/220V, 50/60HZ
Power 18kw
Water consumption 3.5m3/T
Diameter 1160mm
Height 2500mm
Floor area 5m2
Degree of automation Semi-automatic/Fully automatic

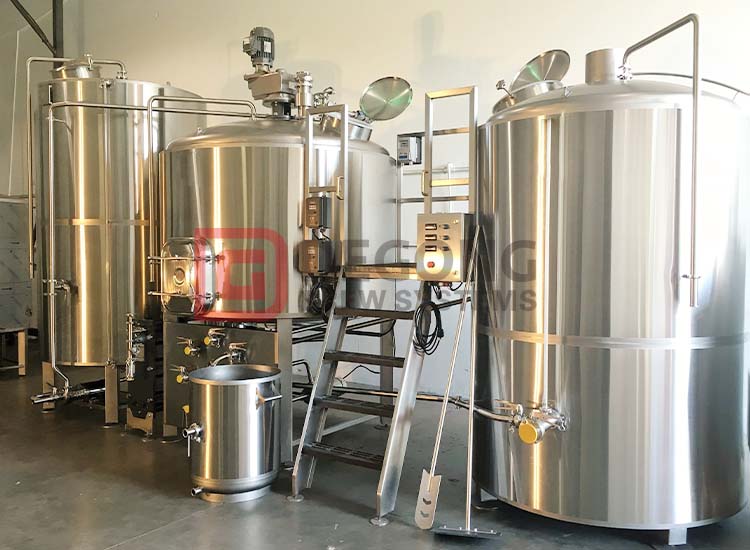

201


Product Features
  • We plan and design complete breweries, all systems can be designed based on customer input for defined processes;

  • Many different vessel combinations and multiple vessels: multipurpose tanks (mash mixer - filter, kettle - whirlpool), separate process tanks (mash mixer, filter, boiler, whirlpool, hot water /cold water tank);

  • Full plumbing and wiring, including valves and sensors;

  • Integrated pump system;

  • CIP system: separate CIP tanks to prevent cross product interference;

  • Master brew interface control system (touch screen control panel),

  • Stairs and platforms combine containers in a compact unit, and the perforated and segmented structure of the walking surface ensures slip prevention;

  • Automatic filtration, automatic water mixing

  • High-quality thermal insulation effect: rock wool Thickness: 80mm

  • Beautiful and polished welds: full argon shielded welding. Polishing accuracy up to Ra0.6µm

  • The world's top brand electronic components.

  • Good wear resistance Material: inner sheath (SUS304) thickness: 3.0mm; outer sheath thickness: 2.0mm; head thickness: 3.0mm

  • Fermentation unit: standard stainless steel conical cylindrical fermentation tank; the number of tanks is accurately calculated by the fermentation cycle of various beers; including all holes, valves, pressure gauges, accessories, etc.

  • Bright Tank Unit: Standard Stainless Steel Bright Tank for Beer Maturation, Conditioning, Servicing, Carbonation; Accurate Count of Tanks for Various Beers and Functions; Includes All Manholes, Valves, Stones, Meters, Fittings, etc.

  • Cooling unit: insulated glycol water tank, with or without copper coils, for holding and mixing of glycol liquid; high efficiency chiller or refrigerator with fryonto to provide cooling energy; for use between tank and heat exchanger Sanitary centrifugal pump for glycol water circulation; includes all piping, fittings, insulation

  • Control unit: electrical control cabinet with temperature, used for switch control of saccharification chamber; electrical control cabinet with temperature, on-off control of cooling components; including temperature controller, thermocouple, solenoid valve, etc.; PLC with touch screen panel Can meet special requirements


177

DEGONG fermentation tanks


Item Production capacity Volume in US Gallon Heating area Tank diameter Height
DG-500 500L/day 132 US Gallon 0.5m2 1160mm 2400mm
DG-600 600L/day 158 US Gallon 0.6m2 1160mm 2500mm
DG-800 800L/day 212 US Gallon 0.8m2 1260mm 2500mm
DG-1000 1000L/day 264 US Gallon 1.0m2 1360mm 2800mm
DG-1500 1500L/day 396 US Gallon 1.5m2 1560mm 2900mm
DG-2000 2000L/day 528 US Gallon 2.0m2 1960mm 3150mm
DG-2500 2500L/day 660 US Gallon 2.5m2 1960mm 3200mm
DG-3000 3000L/day 792 US Gallon 3.0m2 2060mm 3800mm
DG-5000 5000L/day 1320 US Gallon 5.0m2 2260mm 4400mm


176

DEGONG 2000L brewery equipment
