5000L Commercial Beer Brewing Equipment Complete Brewery Machine Turnkey Brewhouse

Equipped with industrial brewhouse wort machine and modern professional beer production equipment like cylindrical and conical beer fermentors or open fermentation vats, automatic cooling system, cleaning and sanitizing system etc. It is possible to use them to production of all known types of beer. The craft brewery intended for bigger restaurants and industrial brewing companies with retail sale.
Availability:
Quantity:
  • DG-5000L
  • DEGONG
Product Description

5000L Complete Brewery


Model DG-5000L
Capacity 5000L/Batch
Material SUS304
Combination method Mash tun, Lauter tun, Kettle/whirlpool tank
Application Restaurants, bars, hotels, brewery
Heating way Steam heating/Direct fire heating
Voltage AC380/220V, 50/60HZ
Power Electric heating:144kw, Steam heaing 55KW
Water consumption 17.5m3/T
Diameter 2260mm
Height 4400m
Floor area 100m2
Degree of automation Semi-automatic/Fully automatic

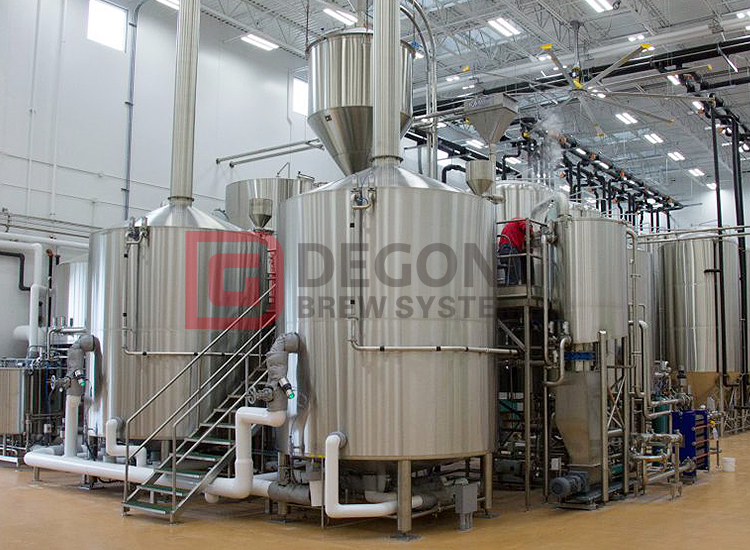

488

DEGONG complete 5000L brewery equipment


5000L mash/lauter tank
  • Useful capacity:5000L

  • Outline size:φ2200×4000mm

  • Inner-Jacket(SUS304) thickness: 3.0mm

  • External-Jacket(SUS 304) thickness: 2.0mm

  • Dimple jacket plate(SUS 304) thickness: 1.5mm

  • Insulation layer: Rock wool material, Insulation thickness: 80mm

  • Inner polishing accuracy: Ra0.4µm

  • Equipped with blender; Power: 0.75KW


198

DEGONG complete 5000L brewery equipment


5000L boiling/whirlpool tank
  • Useful capacity:5000L

  • Outline size:φ2200×4000mm

  • Inner-Jacket(SUS304) thickness: 3.0mm

  • External-Jacket(SUS 304) thickness: 2.0mm

  • Dimple jacket plate(SUS 304) thickness: 1.5mm

  • Insulation layer: Rock wool material, Insulation thickness: 80mm

  • Inner polishing accuracy: Ra0.4µm

  • Steam heating way


176

DEGONG 2000L Complete Brewing System
