3BBL 2 vessels Brewhouse Cellar Equipment Skid Mounted Nano Brewhouse Electric Heating

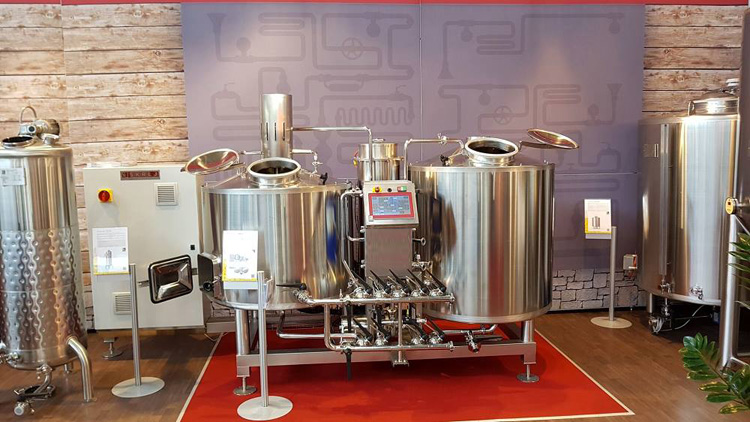

Degong provide 2 vessels 3BBL nano brewhouse, the mash tun and brew kettle are with electric heating elements. Milled false bottom with grain out door for the lauter tun. Sparging ring for the lauter tun. Tangential whirlpool port for the whirlpool vessel. Full sanitary stainless steel piping for the brewhouse.

The brewhouse system can be putted on the stainless steel frame or with wheels. With a separate control panel for the whole brewhouse system.

The Unitanks are 3 BBL, with 25% head space, sus 304 with thickness 3mm, 100mm insulated. 0.3Mpa pressure test, sample valve, relief valve, detachable CIP arm, carbonation stone, level gauge, leveling pads for the legs.

All of our skid mount brewhouses offer the advantages of a fast and easy setup. Our 3 BBL brewhouse comes pre-piped and, except for utility or steam connections, do not require skilled trades to get going.

If you are interested in 3BBL Nano brewery, please feel free to contact me.
