DEGONG-30BBL
DEGONG

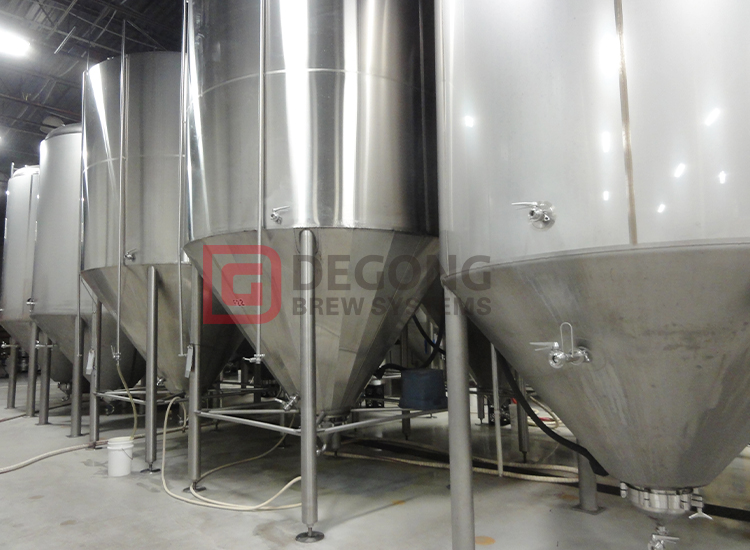

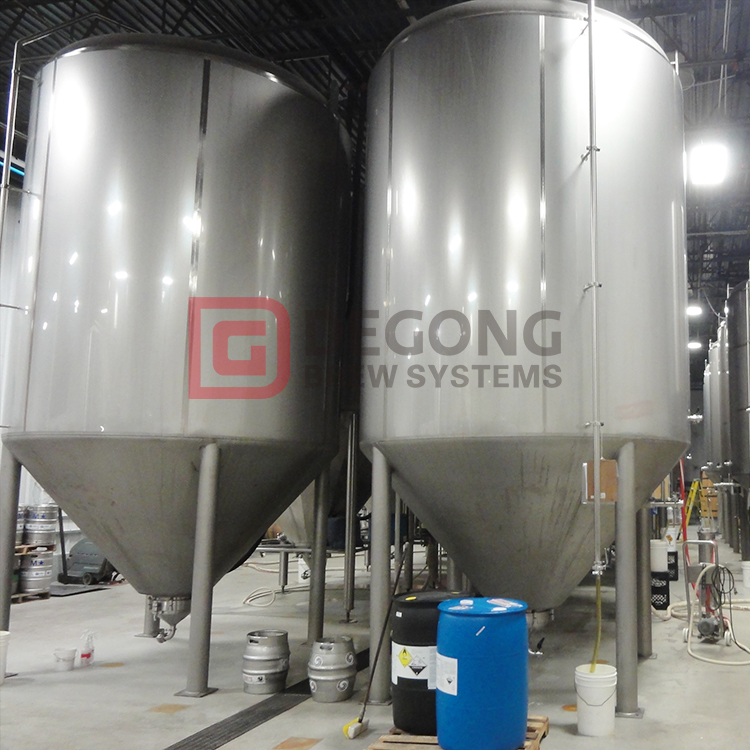

30BBL Conical Fermentation Tanks
| Model | Equipment Volune(L) | Dimension Of Tank(MM) | Conical degree | Cooling Area(M²) | Effective Length(MM) | ||
| Length | Width | Height | |||||
| DG-2BBL | 500 | Φ700 | 60°/90° | 1 | 700 | 700 | 1850 |
| DG-7BBL | 1000 | Φ1000 | 2.1 | 1000 | 1000 | 2500 | |
| DG-10BBL | 1500 | Φ1100 | 3.3 | 1100 | 1100 | 2700 | |
| DG-15BBL | 2000 | Φ1200 | 4.2 | 1200 | 1200 | 3050 | |
| DG-25BBL | 3000 | Φ1600 | 6.1 | 1600 | 1600 | 3600 | |
| DG-30BBL | 4000 | Φ1700 | 8.2 | 1700 | 1700 | 3700 | |
| We Can Design The Drawings According To Your Requirements. | |||||||
| Parameters |
Design Basis
Manway: On side Insulation:TH=80mm with low thermal conductivity PU | Energy Consumption
Tank Working Pressure: 2bar/30psi Cooling:35% Glycol liquid -5℃ |
Dimension
Diameter:Φ1760x3795mm (Customizable) Conical bottom: 60° cone (customizable)
| Controlling
Temperature control |
| Features |
Stainless steel 304 material, automatic welding machine TIG welding.
The interior is polished to 0.2-0.4 microns to ensure that there is no dead corner of bacteria and is completely hygienic.
Triangular arrangement holes on the glycol jacket to improve cooling efficiency.
Rotate the rocker arm to separate the beer from the yeast.
All gaskets are made of EPDM rubber, which can last longer.
The fermentation pressure is adjustable, suitable for normal pressure and specific pressure fermentation.
The side wall and the cone separate the cooling zone, and the temperature control is more accurate.
Fully SUS304 legs and reinforced brackets to prevent tank deformation.
Heavy-duty foot pad with adjustable ability, suitable for uneven or sloping ground.
| Components |
Function | Wort Fermentation or maturation |
Tank Capacity | 3500L (+25% Headspace minimum) |
Dimension | Φ1760x3795mm (Customize) |
Interior Shell | SUS304 full welded; TH=3mm |
Exterior Shell | SUS304 full welded; TH=2mm |
Welding | 100% TIG welding with pure argon gas shield |
Interior Finish | Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional) |
Exterior Finish | Oil brushed finish(2B, 8K Mirror finish optional) |
Polishing | Interior full polished to 0.2~0.4 μm without dead corner |
Insulation | TH=80mm with low thermal conductivity PU |
Cooling | 35% Glycol liquid -5℃ |
Cooling Jacket | Dimple plate on bottom and side wall, welded without over burning |
Jacket test | by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours |
Jacket Working Pressure | < 2bar/30psi |
Tank leakage test | by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours |
Tank Working Pressure | 2bar/30psi |
Dished Top | Dished top full polished |
Conical bottom | 60° cone (customize) |
Manway | Sanitary side mounted manhole with pressured door |
CIP Ball | Top mounted double clamp 360° rotary CIP spraying ball and port, 1pcs |
CIP arm | with four-way connection and butterfly valve |
CO2 blow-off arm | with butterfly valve (Removable) |
Mechanical safe valve PVRV | 2bar/30psi on top (1bar/15psi available) |
Sampling Valve | Full sanitary sampling valve with EPDM seal |
| Contact us |
We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
