300L Small Home Brewed Self Brewing Beer Equipment Craft Micro Brewery Plant for Hotel

The beer brewhouse consists of several key pieces of brewing equipment. The whole brewhouse has four functions: mash,lauter,boiling,whirlpool. Enzymes break down the organic matter in the malt into water-soluble monosaccharides or polysaccharides, which turn it into a sweet liquid called wort. The wort is then fermented in special beer tanks called fermenters .

Material:
Heating source:
Size:
Electric element brand:
Control panel:
Quantity:
  • DGET-300L
  • DEGT
  • 8438400000
Product Description

The beer brewhouse consists of several key pieces of brewing equipment. The whole brewhouse has four functions: mash,lauter,boiling,whirlpool. Enzymes break down the organic matter in the malt into water-soluble monosaccharides or polysaccharides, which turn it into a sweet liquid called wort. The wort is then fermented in special beer tanks called fermenters .

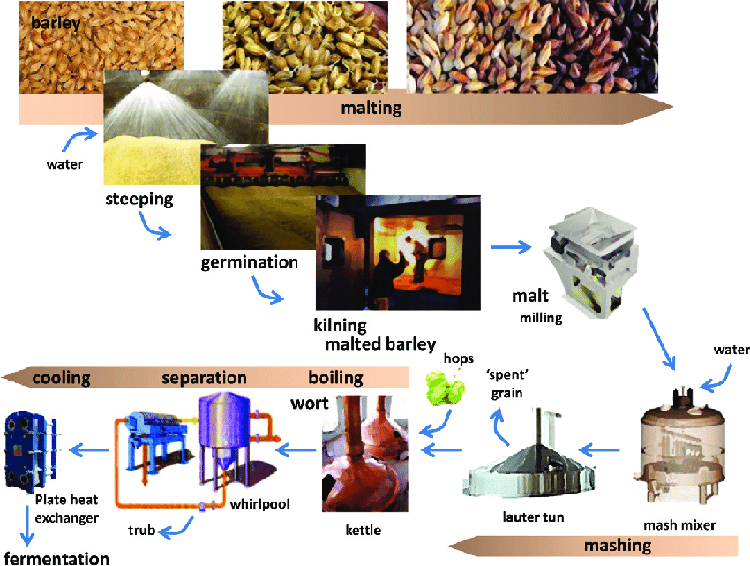

Malting-and-brewing-process-


Whether you want to save space, money, and time by only using a 2 vessel mash and boil kettle or you need a dedicated HLT tank alongside them, we have the right brewing system for you.



Take a 2-vessel beer brewhouse as a reference.


Our 300L 2-Vessel beer brewhouse is an excellent small to medium brew pub system!  It's widely used in restaurant, hotel, bar and some industrial fermention factories.The 300L brewery brewhouse come with various heating methods including electric, steam and gas fired.

2-vessels beer mashing system


2-vessels beer brewhouse configuration:

1.1   1 Unit – Insulated Mash/Lauter Tun

  • Insulated Stainless steel Mash/Lauter Tun, Vessel interior and exterior are mirror finish.Insulated with 100mm Rockwool insulation, glass top manway.

  • SS304 Raking Assembly with 6 cutting knives and variable frequency drive speed controller. Reversible manual lift spent grain discharge feature to allow spent grain to be automatically discharged from side manway.

  • 304ss Wedge Wire Screens, 0.7mm constructed in 3 sections and firmly affixed to vessel floor, removable sections allow screen sections to be removed.

  • Under Screen CIP System with sprayer head assemblies allow bottom of Lauter screens and vessel dish bottom to be cleaned in place.

  • Temperature sensor to inspect the temperature inner of tank

micro brewery equipment




1.2   1 Unit – Brew Kettle/Whirlpool

  • 304ss Steam Fired Brew Kettle Vessel interior and exterior are mirror polishing or 2B. Insulated with 100mm of high heat Rockwool insulation.

  • Integral Tangential Inlet for optimal whirlpool effect and trub/hop settling.

  • Temperature sensor to inspect the temperature inner of tank

  • CIP Tank Spray ball system with dual static spray heads offer an ideal spray pattern for clean-in-place operations and complete interior vessel coverage.

craft mini home brewing system




1.3   1 Unit – Integrated Control Panel

  • Industrial Touchscreen Control Panel, 304ss, watertight case. Mounted on brewer’s platform with 9” touchscreen Siemens controlled brewers CPU Integrated module.

  • Integral Controls allows for intuitive Brewhouse operation and Cellar Control functions from one central location on the Brewhouse platform.

  • Pump Controls and Variable Speed frequency drive for Mash Pump and on/off controls for Hot Liquor Pump.

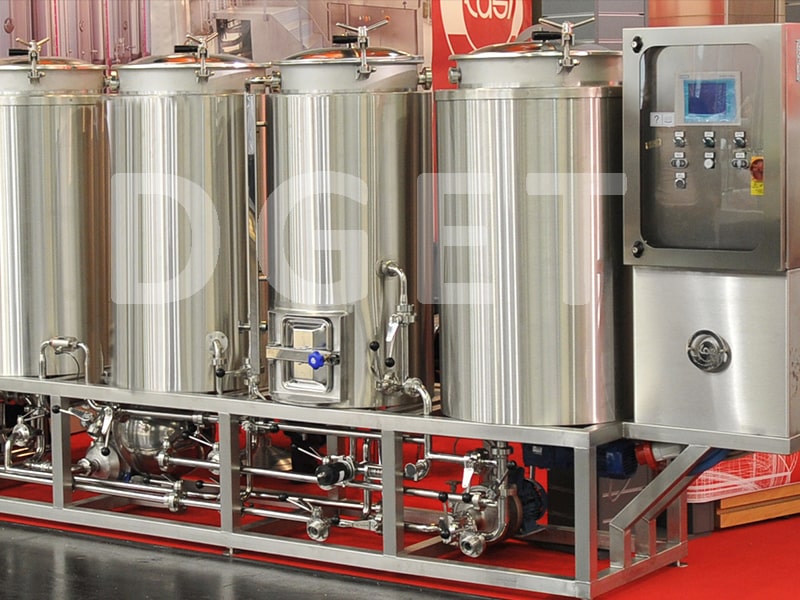

home brewing system


1.4     1 Unit – Plate Heat exchanger

  • 304ss 2-Stage Plate Heat Exchanger. Stainless steel plates and frame assembly.

  • Wort Thermometer upon exit of PHE to accurately stabilize wort temperature.

  • Aeration Stone Assembly, non-threaded sanitary sintered aeration stone and sanitary gas check valve, with sight glass.



1.5     1 unit – Working Platform

304ss Staging Platform between Brew House Vessels, with stainless non-slip grating, stairs, and handrails. Can be configured to your location and design layout.

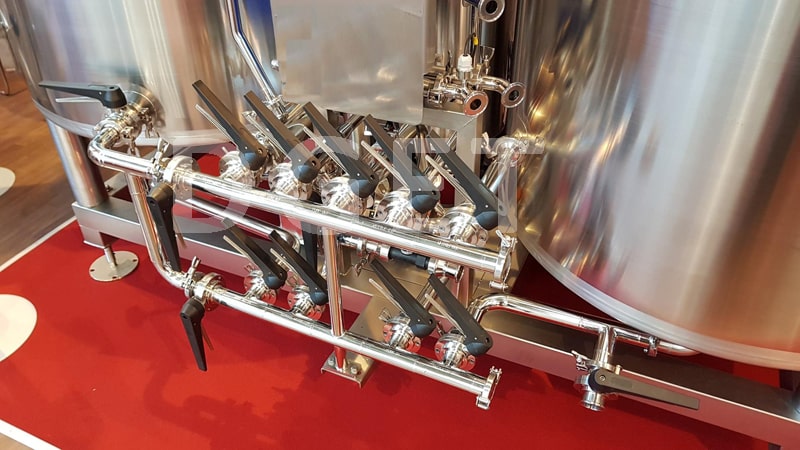

beer brewhouse



Features of brewhouse:
1. ABB motor for wort pump and hot water pump. World famous brand.
2. Steam jacket can bear 4 bar pressure at most. And we have safety valve on steam outlet. Make sure it is safe enough, no any problem. Other supplier usually don’t have this safety valve.
3. Plate heat exchanger is suspension type, it is so convenient to disassemble it and clean it.
4. We have one hops filter on pipeline before plate heat exchanger.
5. We have one glass balance tank beside lauter tun, it can balance pressure above and below grain bed when filter wort, avoid grain bed is too tight to remove, avoid damaging false bottom due to pressure is too low under grain bed.


beer brewing system

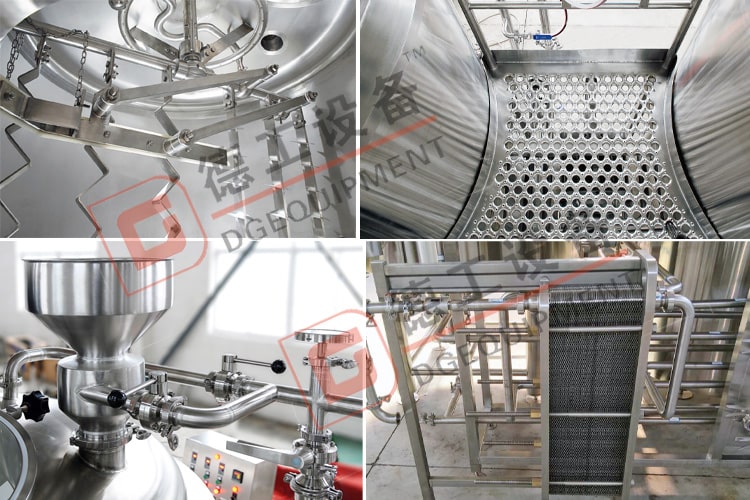

beer brewing system details



If you have interest,welcome to contact me freely

contact person:Auril

Tel/Whats:+86 18363007358

Mail:market@degonget.com

Skype:auril3
