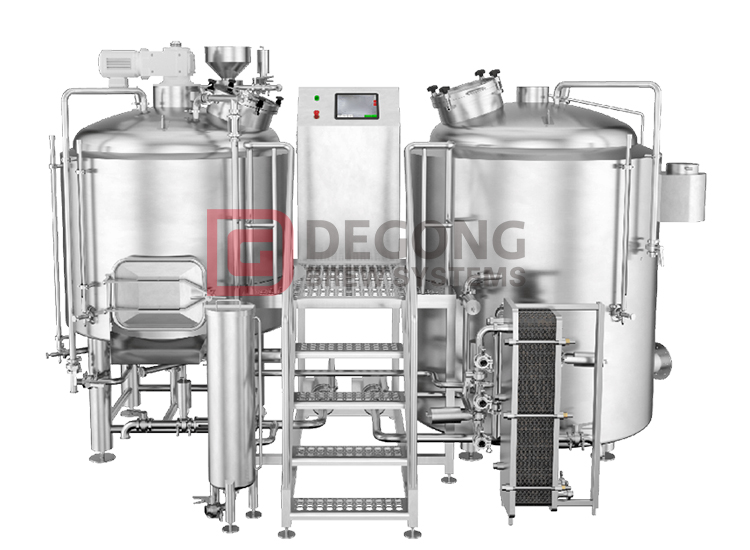

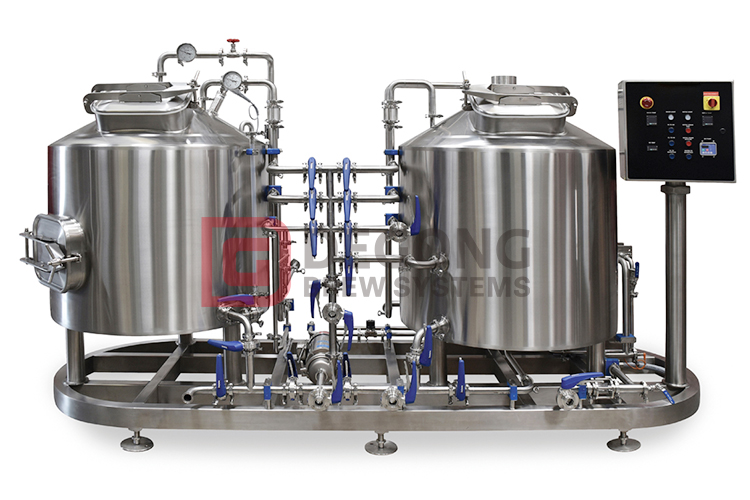

300L Micro Brewery Complete Home Brewing Equipment Beer Making Machine Brewhouse

Stainless steel AISI 304 thickness:

• Inner = 3 mm

• External = 1 mm

• Н = 2500 mm, Ø = 900 mm

• Thermal insulation (polyurethane foam) – 80 mm;

Configuration:

• rotary  cleaning ball 360°- manholes – 2 pcs- motor reducer – 0.75 kW, 380V

• ripper-mixer

• wavy knives

• waterjet-cutted lauter tun screen panels

• side and bottom steam jacket for steam heating

Net capacity: 300L, Gross capacity: 430L

Stainless steel AISI 304 thickness:

• Inner = 3 mm

• External = 1 mm

• Н = 2500 mm, Ø = 900 mm

• Thermal insulation (polyurethane foam) – 80 mm;

Configuration:

• Top manway, φ 350mm

• Tangential whirlpool inlet

• 360° coverage CIP spraying ball

• Temperature measurement way: PT100

Conical Fermentation Tank

V total=720l, V net=600l;

Steel AISI 304,  thickness:

– Cylinder – 2 mm;

– Head and Cone – 3mm;

Thermal insulation (polyurethane) – 80mm;

P operational = 0,7-1,9 atm

• Glycol cooling jacket (spiral type)

• Rotary cleaning ball

• Upper manhole

• Connections DN 32

• Pressure-relief device

• Temperature sensor

• Sampling valve

• Level indicator in st.steel frame
