2500L Beer Brewery Equipment Pub Brewhouse System Vertical BBT Stainless Steel304/316 Fermentation Tank for Sale

2500L brewhouse basic information(4-vessel)

2500L mash tun

3mm interior shell and 2mm exterior shell

Acid washing&passivating the Interior Finish to 0.2~0.4 μm

80mm polyurethane for insulation

Stainless steel manway

Agitator with VFD controlled motor and turbine reducer

2500L Lauter tun

3mm Interior Shell and 2mm exterior Shell

Acid washing&passivating the Interior Finish to 0.2~0.4 μm

80mm polyurethan for insulation

Stainless steel manway

CIP spraying ball and sparging ring

Side mounted grain outdoor with grain chute

Grain rake and scraper blade with VFD controlled motor& turbine reducer

False Bottom/Filter

2500L Boiling tun

3mm Interior Shell and 2mm exterior Shell

Acid washing&passivating the Interior Finish to 0.2~0.4 μm

80mm polyurethane for insulation

Stainless steel manway

Sanitary leveling sight glass

Steam vent with condensate ring for kettle stack

2500L Whirlpool tun

3mm Interior Shell and 2mm exterior Shell

Acid washing&passivating the Interior Finish to 0.2~0.4 μm

80mm polyurethane for insulation

Stainless steel manway

Anticlockwise Tangential whirlpool inlet in Northern Hemisphere

Clockwise tangential whirlpool inlet in Southern Hemisphere

2500L 4-vessel brewhouse system

Heating method

Steam Heating: dimple plate jacket with inlet/outlet fittings for steam heat transfer;

Electric Heating: use electrical heaters to heat the medium in the jacket

Direct fire Heating: use gas burner at bottom to heat tank directly

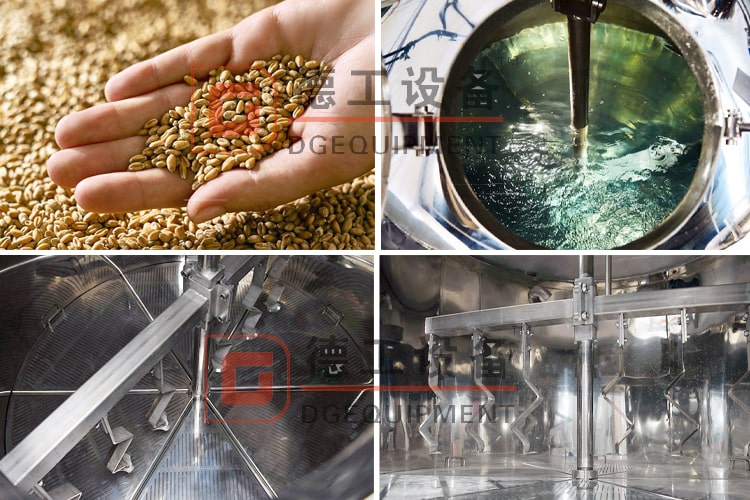

mash system is running& false bottom& raker

2500L fermentation system basic information

2500L/5000L fermentation tank

1. Application

This fermentation tank container is widely applied in beer production line.

2.Constructure and advantage

• The container body has interlayer and cooling jacket. The container body, upper and lower closure heads(or taper) all adopt spinning R-angle processing. The internal wall of the container has got mirror polishing with finish Ra≤0.2μm.

• It has no sanitary dead corner and its wholly-enclosed design ensures that materials are always mixed and ferment at non-pollution state.

• It is equipped with devices including air respirator, cleaning ball, sanitation inlet, viewing mirror, and viewing lamp. The fermentation process of beer, fine chemical engineering and biological products is aseptic and untainted.

• The fermenter container adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products. We specially designed and installed aseptic respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating heat-up and cooling through medium heat-up and cooling.

• The parts that contact materials are all made of stainless steel SUS304 or SUS316L. External surface adopts sand grinding surface polishing treatment.

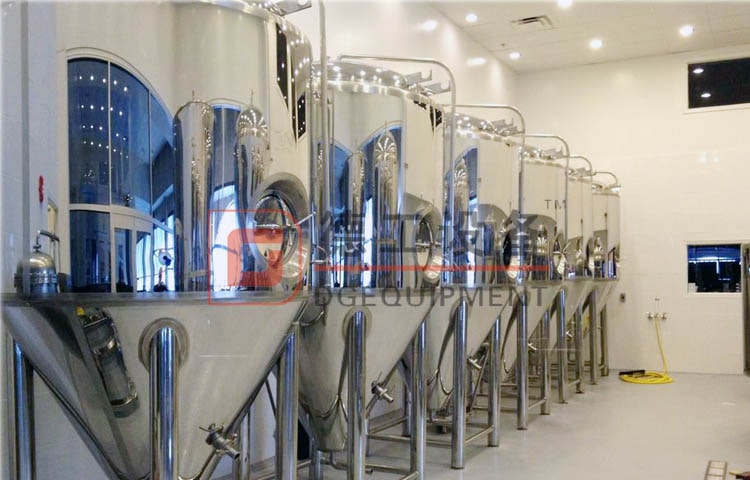

mirror fermentation tanks

2500L Vertical bright beer tank

BBT feature

• 100% certified Brushed 304/316 sanitary food-grade stainless steel in all of our components. Ribbon polished for the welded place.

• 4 stainless steel legs with stainless leveling footpads

• Interior and exterior finish polished to a sanitary finish

• Interior finish pickled and passivated(Mirror Polishing for optional)

• Fully welded exterior shell

• Dished head and bottom, with an average of 25% headspace

• Carbonation port with stone,Side manway door, shadowless

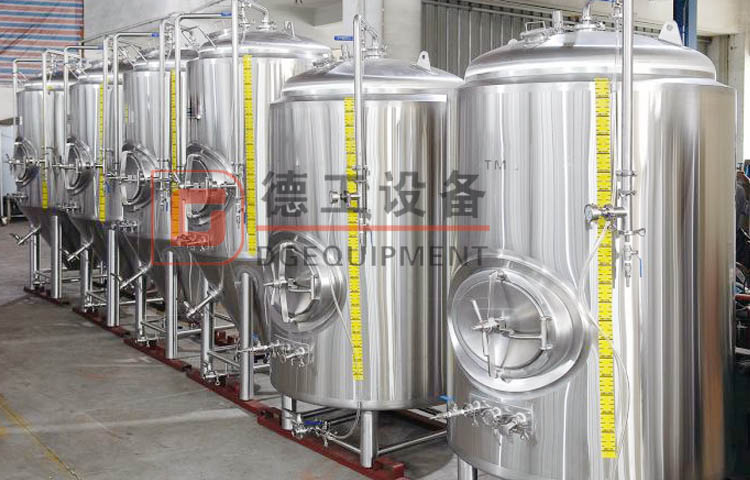

fermentation tanks& bright beer tanks
