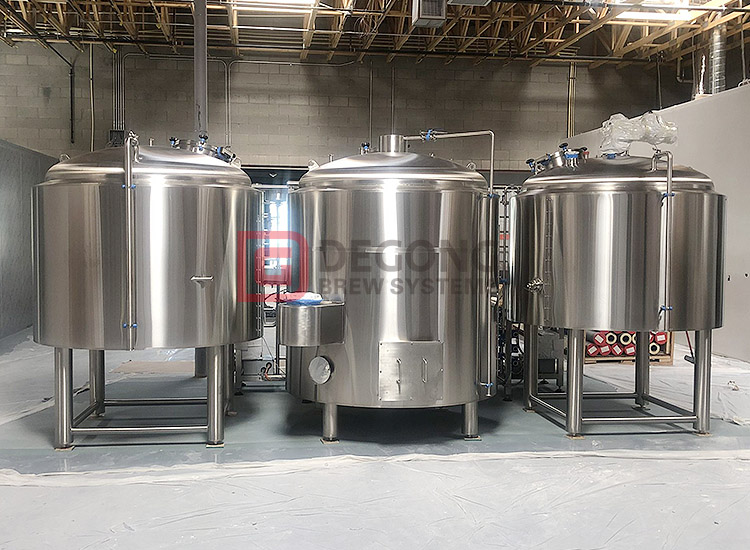

20HL 2000L Commercial Brewing Equipment 3 Vessels Brewhouse Turnkey Brewery System

2000L Mash/Lauter tank

• Function: Mashing, louder, filter the wort.

• Sparging pipe for grain washing with TC connection.

• Word collecting pipe and back washing device to cleaning false bottom.

• Mechanical Raker: VFD control, gear motor on the top.

• Spent grain:Automatic raker device, grain removing plate with reverse, forward is raker, reverse is grain out.

• Milled false bottom: 0.7mm distance, diameter designed suitable for the louder tun, with dense supporting leg, detachable handle.

• Word circulation inlet TC on top with elbow and mash inlet upon false bottom on side wall.

• Side mounted spent grain port .

• With discharge hole, PT100 thermometer and necessary valves and fittings.

• Function: Word boiling and hopping.

• Machinical Agitation: With VFD control, at the top horizontal motor with seal.

• Steam venting chimney with anti backflow pipe.

• Condensate recycle to hot water tank.

• Function: word whirlpool

• Whirlpool tangent pumped at 1/3height of the tank

• Steam venting chimney with anti backflow pipe.

• Condensate recycle to hot water tank.

• Function: wort transfer from mash tun to lauter, and to kettle and so on.

• Material: SS304 sanitary pipes.

• Sanitary stainless steel valve and pipeline, Easy to operate and reasonable in design;

• Wort inlet at side of tank to reduce the oxygen.

• Function: wort cooling.

• Two stage and six flow, hot wort to cold wort, tap water to hot water, glycol water recycle.

• Design Structure: Suspension type, screw material is SUS304, nut material is brass, easy disassembled for cleaning.

• Stainless steel 304 material

• Design pressure:1.0 Mpa

• Working temperature:170°C.

• Tri-clamp quick-installed.

2000L/4000L

Conical fermentation tank

• Function: beer fermenting and cooling

• All SUS-304 Stainless Steel Construction

• Jacketed & Insulated

• Dual Zone Dimple Cooling Jacket

• Dish Top & 60° Conical Bottom

• Stainless Steel Legs with Leveling Ports

• Top Manway or Side Shadow less Manway

• With Racking arm, Discharge Port, CIP Arm and Spray Ball, Sample Valve, Shock proof Pressure Gauge, Safety Valve, Thermowell and Pressure regulator valve.

• Function: A yeast brink is a stainless steel keg that has been modified to collect yeast from a conical fermenter to be saved, and pitched again into a new batch of beer.

• Function: Beer maturation/conditioning /serving/filtered beer receiving.

• All SUS-304 Stainless Steel Construction

• Jacketed & Insulated

• Dual Zone Dimple Cooling Jacket

• Dish Top & 140° Conical Bottom

• Stainless Steel Legs with Leveling Ports

• Top Manway or Side Shadow less Manway

• With Rotating Racking arm, Discharge port, CIP Arm and Spray Ball, Sample Valve, Shock proof Pressure Gauge, Safety Valve, Pressure regulator valve, Thermowell, Level sight, Carbonation stone.

4000L Glycol tank

• Function: glycol water storage

• Function: cooling the glycol water.

• Electric heating element inside, with anti-dry device for safety.

• Stainless steel vessel.

• Portable sanitary CIP pump, SS cart and controller.

• Brewhouse and fermenting controlling.

• Manual button control panel or PLC control with touch screen for option, with RTD&Solenoid valves.
