2000L Beer Brewing System 3-vessel Brewhouse with Steam Heating Double Wall Fermentation Tank for Sale

Owing to DEGONG enriched craft experiences, we are devoted towards offering a wide variety of excellent quality craft Brewery Equipment. The provided brewery equipment is uniquely manufactured using best quality components along with modern technology. Offered brewery equipment is highly appreciated by our clients in brewery industries owing to its optimum performance and long service life. Moreover, to ensure the smooth operation, our quality controllers strictly examined this brewery equipment on different quality parameters.
Material:
Heating method:
brewhouse combination:
fermentation tank cooling:
Quantity:
  • DGET-2000L
  • DGET
  • 8438400000
Product Description

DEGONG equipment advantage

  • Brewhouse Combination Diversification----Customized

  • Decoction,infusion,multi-step infusion mashing can be realized.

  • Electric,Steam,direct fire heating source for optional

  • installation and training service offered by profession engineer.

  • Mirror polishing and wire drawing SUS 304 for optional,thickness:3-4mm

  • Rational layout, Humanized design and convenient operation



                                                        2000L 3-vessel brewhouse system
Code Combination Specification
1 2000L mash tun

Tank capacity: 2000L.

Interior Shell:SUS304 full welded, TH=3.0mm

Exterior Shell:SUS304 full welded,TH=2.0mm

100% TIG welding with pure argon gas shield

Overall polishing to 0.4-0.6μm without dead corner

Insulation: Polyurethane;TH:80mm.

Stainless steel top mounted manway with full glass, With agitator frequency control; With indoor or outdoor venting device; Light fixture with LED;

Easy clean and detachable sparging spray ring.

Thermowell with high accuracy temperature sensor: PT100

Steam heating jacket.

Tank complete with fittings, valves and all parts.

Welding seams brushed sand belt.

Inner surface to be acid passivated or mechanical polishing.

Bottom drain port equipped with tri-clamp butterfly valve, used for discharging remaining hops.

2 2000L lauter tun

Tank capacity: 2000L.

Interior Shell:SUS304 full welded, TH:3mm

Exterior Shell:SUS304 full welded,TH:2mm

Insulation: Polyurethane;TH:80mm.

100% TIG welding with pure argon gas shield

Overall polishing to 0.4-0.6μm without dead corner

Rake plow with VFD agitator motor/ Grain out door, milled sieve plate(false bottom)

Thermowell with high accuracy temperature sensor: PT100

Tank complete with fittings, valves and all parts

Welding seams brushed sand belt

Welding points to be acid passivated or mechanical polishing.

3 2000L boiling/whirlpool tun

Be made of stainless steel 304; Brushed outer shell;

Working volume:2000L;

Thickness of insulating layer: 80mm; Inner Body Thickness: 3mm, outer shell is 2mm.

Top mounted manway with full glass; Light fixture with LED

CIP rotary spray device

With indoor or outdoor venting devices

Bimetal thermometer and temperature probe

Outer and Inner plate protection , and ribbon polished on all welds

All valves are stainless steel, which attaches with tri-clamps;

Steam heating jacket.

With all matched valves and accessories.

With tangent whirlpool line

4 Heating method

steam heating(need a boiler)

electric heating(need electric heating tube)

direct fire heating(gas/diesel/electric)

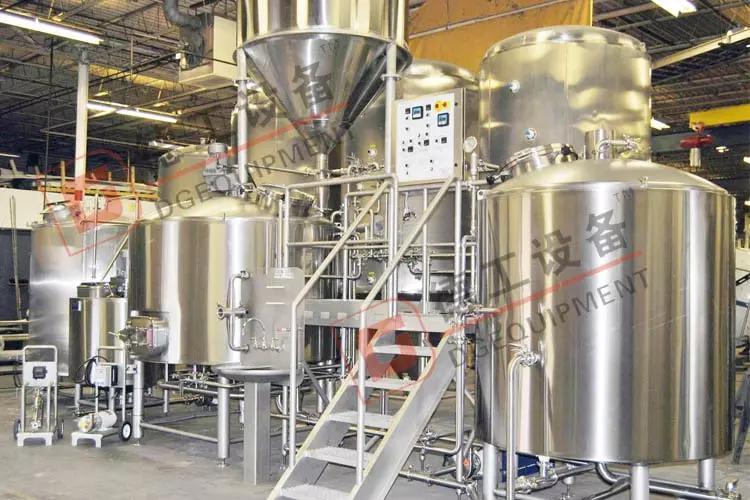

750-BW-min(1)

1200L 3-vessel brewhouse system

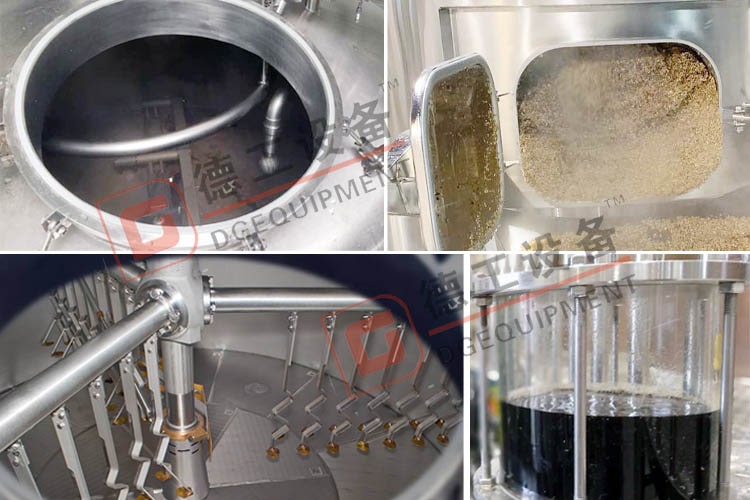

750BW 细节-min

ring& spent grain hatch& raker& sight glass



                                                             2000L/4000L fermentation system
Code Combination Specification
1 fermentation tank

with 25% head space

side manhole

Material SUS304

Racking Arm and discharge port with butterfly valve and fittings;

PLC control, dimple plate cooling jacket.

Insulation thickness: 100mm; Inner tank thickness: 3.0mm; cladding thickness:2.0mm

CIP arm and rotary spray ball

Release and breath valves

sample valve, mechanical pressure regulation valve

Pressure gauge & Thermometer & Sample valve

Dimple plate cooling jacket with glycol inlet and outlet

Four legs with brace and adjustable bolt

Interior of tank is mechanical polished, inner body polishing ratio 0.4μm. Out plate surface protection welding line Belt Sander Polished

With valves and accessories matched

2
bright beer tank

Interior Shell:SUS304 Stainless Steel,thickness: 3.0mm;

Exterior Shell:SUS304 Stainless Steel,thickness: 2.0mm;

Insulation: Polyurethane-thickness:80mm

100% TIG welding with pure argon gas shield

Interior Finish: Overall polishing to 0.4 μm without dead corner

Cooling jacket: Dimpled plate on cone and side, thickness: 1. 5mm

Cooling media: glycol water or alcohol water.

"Stringent tank and Jacket leakage test by water and pressured gas

Test Pressure:0.4 Mpa,Working pressure 0.3 Mpa."

Equiped with Carbonation stone and port for filling CO2

Tri clamp discharge arm with butterfly valve

100% TIG welding with pure argon gas shield

CO2 blow-off arm with butterfly valve

CIP arm with 360 coverage CIP spraying ball

Thermowell with high accuracy temperature sensor: PT100

Cooling control Square table control, sigle tank single control

4pcs completely SUS304 heavy duty legs with leveling pad and legs support

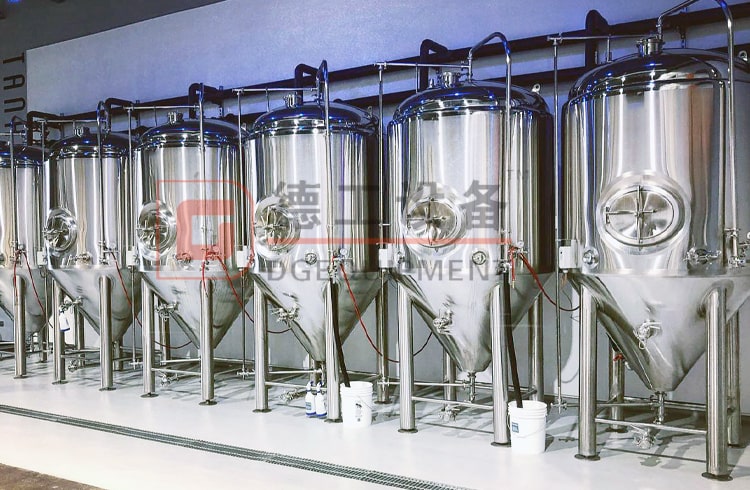

750FV2-min

fermentation tank

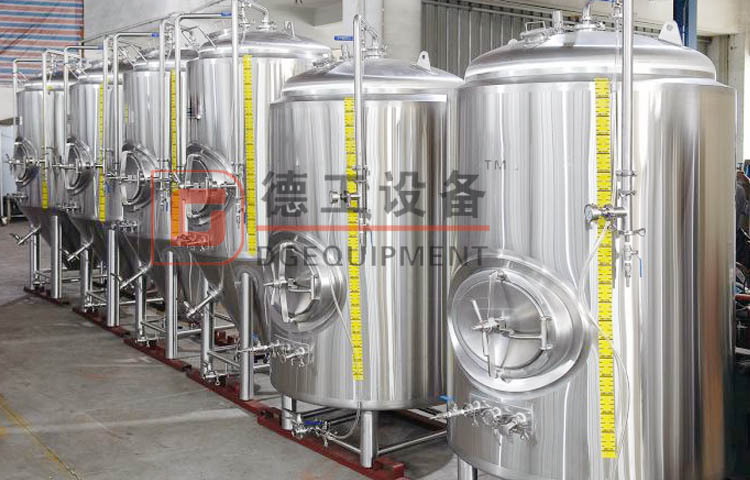

750 BBT 2-min

bright beer tank
