Brewery plant 2000l nano beer brewing equipment |
Micro Brewery can be a good start of your own brewery business with the size from 500L to 2000L. The brewhouse comprising of 2 or more vessels is mounted on a stainless steel skid or on the floor with piping, pumps, platform, etc, which are pre-built for convenient installation on site.
By learning each brewer's individual needs, we will work with you on first stage layout design, on just right lauter tun size, on piping design, on planning your expansion project in very first start to make your own micro brewhouse.
Brewhouse configuration |
2000L brewhouse with bottom spent grain outdoor
2-vessel brewhouse:
2-vessel brewhouse configuration offer brewers a simple and cost effective solution. Through combining mash tun & lauter tun, and kettle & whirlpool into a 2-vessel solution, it will help you on space and cost saving without compromising brewing quality and control.
3-vessel brewhouse:
3-vessel brewhouse configurations offer brewers a more efficient and faster brewing solution and achieve multi temp. control for step mash. It can be comprised by mash/lauter, kettle/whirlpool, and hot water tank.
4-vessel brewhouse:
4-vessel brewhouse configuration offer brewers a professional and higher performance brewing solution for multi batches brew per day. It is comprised by mash, lauter, kettle, whirlpool. DG’s 4-vessel brewing system offer you options of semi-auto or automation controlling and overall flexibility.
Combining the mash tun and lauter tun functionality into a single tank unit increases your efficiency and reduces your brewing equipment costs.
2000L brewery equipment plant for craft beer | |
Heating method | Electric/steam/direct fire heating |
Structure | 2-vessel, mash/lauter tank & kettle/whirlpool tank Combi-vessel |
Usage | Pub/hotel/restaurant beer brewery equipment Mini beer brewery plant equipment |
Exterior | Stainless steel 304/316 |
Interior | Stainless steel 304, thickness 3.0mm |
Exterior | Stainless steel 304, thickness 2.0mm |
Insulation | Polyurethane, thickness 100mm |
Cleaning | CIP arm, 360° spray ball |
Temperature | High accuracy temperature sensor, PT100 |
Cooling | High efficiency plate heat exchanger |
Control | Semi-auto control cabinet |
Wort ventilate | Sanitary wort aeration device with sight glass and carbon stone |
Milling V-wire false bottom With lauter rakes Side spent grain manway Stainless steel top manway With tangent whirlpool inlet Efficient centrifugal wort pump Heating: dimple steam jacket/ stainless steel electric heating elements Sanitary stainless steel butterfly valves and pipeline connection Stainless steel heavy duty supporting legs Argon gas protection welding, well polishing |
Fermentation tanks description |
The task of brewer yeast in the primary fermentation stage is to convert part of the sugars in the wort into alcohol. At the set degree of fermentation the fermentation process is interrupted (not to be the full conversion of 100 % sugar).
This section includes all tanks designed to the primary fermentation of beer.
Cylindrical-Conical stainless steel fermentation tank
Item:Jacketed Pressure Conical Beer Fermentation tank
Interior thickness:3 mm;Exterior thickness:2 mm;jacket:1.5mm
Insulation: Polyurethane 80mm
Finishing: mirror polishing ≤ 0.6um
Matched fittings: the butterfly valves , the manway door , sight glass , CIP cleaning arm and rotatory balls , pressure gauge and temperature probe , adjustable feet
professional machine polish for inside and outside .
Capacity : from 500L -10,000L
Cone degree:60;
The position of manway door , on cylinder or dish head;
Cooling jacket can be dimple jacket;
Outter jacket finish can be mirror finish , brushed stainless steel finish
The type of the manway door can be flange type or the nor type .
The dish head can be signal or double
Fermentation tank details (dished head;beer outlet;legs)
Exhibition
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.

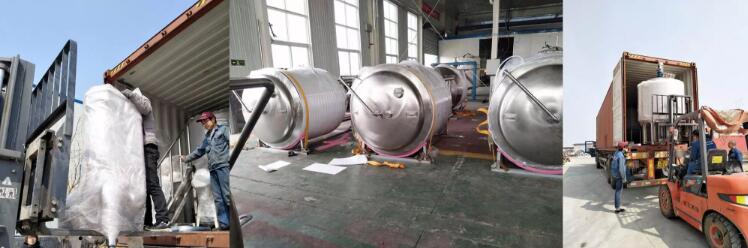

Ready for shipment
