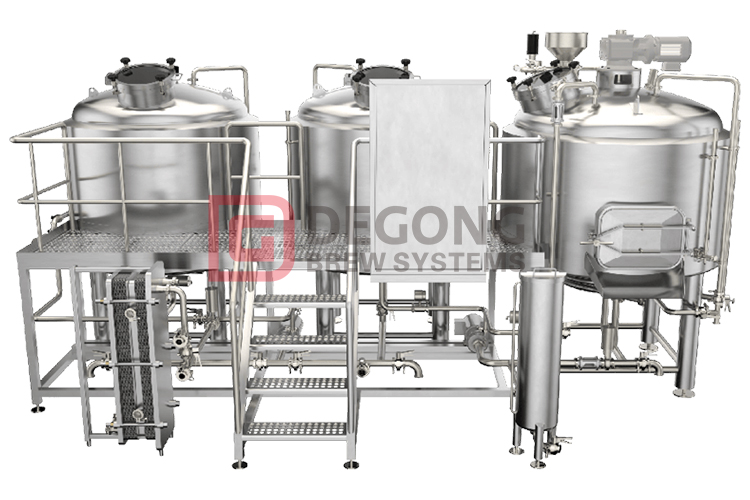

2000L 4-Vessel Beer Equipment Turnkey Project System for Beer Brewing Brewery Brewhouse

Steel thickness:

• Inner cylinder – 4 mm;

• Covering – 1 mm;

• Legs – ∅114х4;

• thermal insulation (urethane plastic foam) – 100mm

• V net=2000L;

• V total= 2600L;

• Size:  Н=1823mm , Ø=3028 mm,

Configuration:

• Rotary  cleaning ball 360°

• Malt supply pipe

• Extract straight pipe;

• Manhole;

• Steam jacket: – bottom, walls;

• Motor reducer 4 kW, 380V;

• Mixer, temperature sensor

• “butterfly” valves

Steel thickness:

• Inner cylinder – 4 mm;

• Covering – 1 mm;

• Legs – ∅114х4;

• thermal insulation (urethane plastic foam) – 100mm

• V net=2000L;

• V total= 2600L;

• Size:  Н=1823mm , Ø=3028 mm,

Configuration:

• Rotary  cleaning ball 360°

• Malt supply pipe

• Extract straight pipe;

• Manhole;

• Steam jacket: – bottom, walls;

• Motor reducer 4 kW, 380V;

• Mixer, temperature sensor,  “butterfly” valves

Steel thickness:

• Inner cylinder – 4 mm;

• Covering – 1 mm;

• Legs – ∅114х4;

• thermal insulation (urethane plastic foam) – 100mm

• V net=2000l;

• V total= 2600l;

• Size:  Н=1823mm , Ø=3028 mm,

Configuration:

• Sieve; collapsible / sectional,

• Washing head;

• Undersieve washing head;

• Revision manhole;

• Manhole for unloading grains;

• Motor reducer 6 kW;

• Ripper, unloading

Steel thickness:

• Inner cylinder – 3 mm;

• Covering – 1 mm;

• Legs – 3 mm;

• thermal insulation (urethane plastic foam) – 100mm

• V net=2000l;

• V total= 2600 l;

• Size:  Н=1823mm , Ø=3028 mm,

• Operating temperature: +100°С ÷ +20°С,

Configuration :

• Rotary  cleaning ball 360°, 1”

• Air outlet valve;

• Manholes (2);

• Motor reducer 2.2 kW, 380V;

• Mixer

• “butterfly” valves

• waterjet cutted lauter tun screens
