1000L 3-vessel Brewhouse Commercial Beer Brewery Equipment Hot Sale Brewing System

The brewhouse is designed to conduct the brewing process of mashing, lautering, boiling and whirlpooling. When the capacity exceeds 1000L, three vessel brewhouse is preferred by increasing brewmasters. the mash tun, lauter tun, brew kettle and whirlpool tun can be combined variously according to different intention.
Availability:
Quantity:
  • DG-1000L
  • DEGONG
Product Description

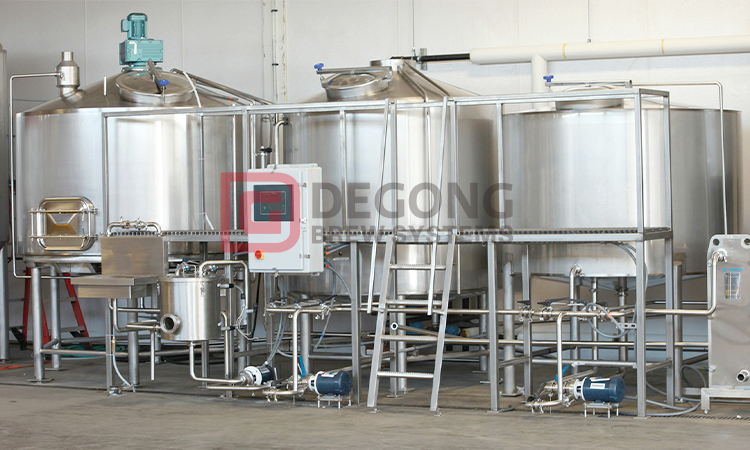

1000L 3-vessel Brewhouse


Mash tun/Kettle Material: stainless steel AISI 304

Steel thickness:

  • Inner cylinder – 3 mm;

  • Covering – 1 mm;

  • Legs – ∅114х3;

  • Thermal insulation (urethane plastic foam) – 80mm

  • V net=1000L;

  • V total= 1500L;

  • Size:  Н=2750 mm , Ø=1450 mm.

Configuration:

  • Rotary  cleaning ball G1ʺ

  • Malt supply pipe

  • Extract straight pipe;

  • Manhole 6010 Е-1 pc.;

  • Steam jacket: – bottom, walls;

  • Motor reducer 2.2 kW, 30 rpm;

  • Mixer, temperature sensor PT 100(1 pc.)


378

Lauter tun Material: stainless steel AISI 304

Steel thickness:

  • Inner cylinder – 3 mm;

  • Covering – 1 mm;

  • Legs – ∅114х4;

  • Thermal insulation (urethane plastic foam) – 80 mm;

  • V net=1000L;

  • V total= 1500L;

  • P operational – 0 atm.;

  • Size: 2750×1450 mm.

Configuration:

  • Rotary  cleaning ball G1ʺ;

  • Sieve;

  • Extract straight pipe;

  • Manhole 6010 Е-1 pc.;

  • Steam jacket: – bottom, walls;

  • Motor reducer 2.2 kW, 30 rpm;

  • Temperature sensor PT 100(1 pc.)

  • Rotary undersieve washing head G1ʺ;

  • Manhole for unloading grains.


Whirlpool Мaterial: stainless steel AISI 304

Steel thickness:

  • Inner cylinder – 3 mm;

  • Covering – 1 mm;

  • Legs – 114×4;

  • thermal insulation (urethane plastic foam) – 80 mm;

  • V net=1000L;

  • V total= 1500L;

  • Size:  2750х1450 mm,

  • P operational – 0 atm.;

  • Operating temperature: +100°С ÷ +20°С.

Configuration :

  • – Rotary  cleaning ball 360°, 1”

  • Temperature sensor PT 100(1 pc.);

  • Manhole 6010 Е-1 pc.


174

DEGONG 2000L brewery
