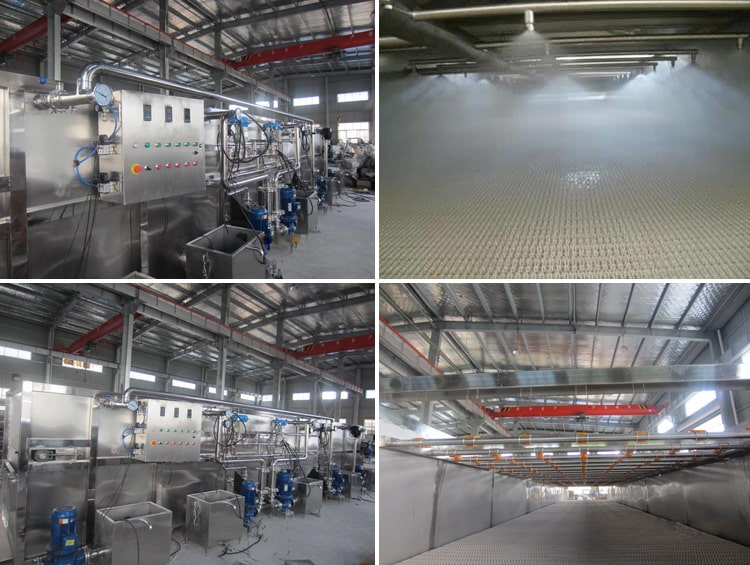

2000 Bottles Cans Per Hour Stainless Steel 304 Material Beer Sterilization Machine Tunnel Pasteurizer

Beer doesn’t have to be pasteurized to be safe for consumption. However, for commercial breweries that sell their products in stores and across the country, a great deal of time can pass between the time a beer is bottled and the moment it touches a customer’s lips.

Pasteurization can help extend the shelf life of your product, so the beer your customers drink meets the taste and quality you want them to experience.

Pasteurization is a rapid sterilization method discovered by French chemist and microbiologist Louis Pasteur in 1864. This sterilization method is characterized by quickly killing a large number of microorganisms while retaining most of the flavor. Therefore, this method is widely used in the post-processing of food and beverages such as beer.

There are many methods of pasteurization, such as pulsed electric field pasteurization, high-pressure pasteurization, tunnel pasteurization and flash pasteurization, etc. Currently, tunnel pasteurization and flash pasteurization are commonly used in the market.

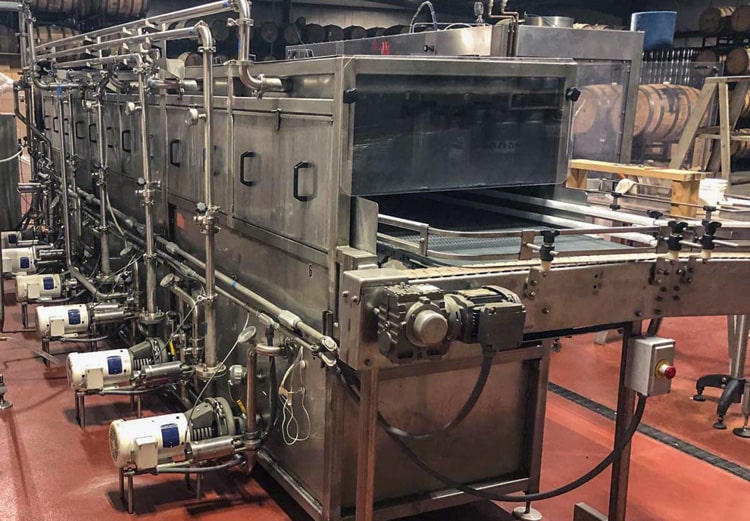

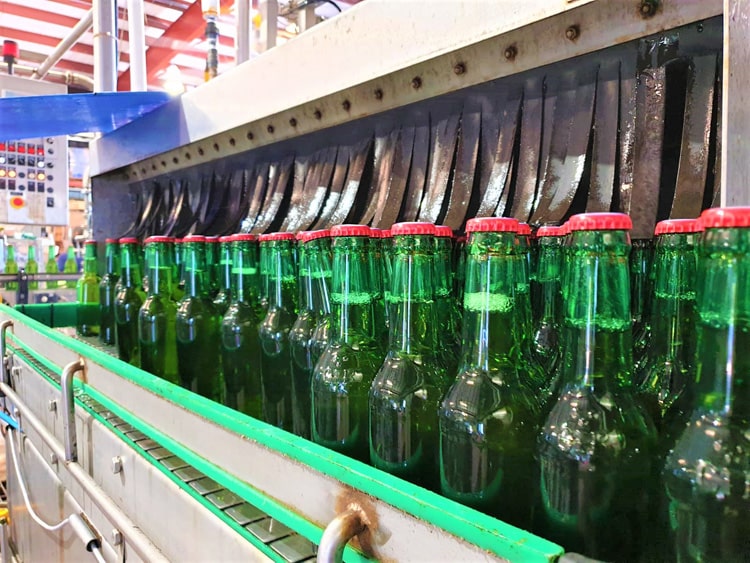

Tunnel pasteurizers and flash pasteurization are effective methods for pasteurizing liquids. The difference between these two pasteurization methods is that flash pasteurization pasteurizes the product, not the package. During tunnel pasteurization, both the package and the product get pasteurized.

Main parameter of 2000B/H tunnel pasteurizer：

• Capacity: 2000bottles per hour

• Filling temperature: 3℃    Out temperature:30-35℃

• Sterilization temperature: 70℃(Can be regulated)

• Controllable temperature precision: ±1℃

• Power:415V/50HZ/3 phase

• Speed of conveyor line: 110-553mm/min (infinitely variable speeds)

• Pressure of heated steam: 0.2Mpa        Circulation water volume: 6m3

• Efficient width of sterilization:920mm

• Equipment is equipped with:

• Warm water pump  3T/H  2 sets

• Hot water pump    3T/H    4sets

• Cooling pump     3T/H   2 set

• Pneumatic membrane valve: DN25

• Electric control box PLC control system: 1 set

• Feed-in and feed-out conveyor belt, etc...

• Steam pressure:0.2-0.4mpa

• Material: box is made of SUS304, thickness: 2mm

• Material of mesh belt: SUS304    Material of nozzle:SUS304  high temperature resistance type

• Size:7000×1500×1650mm

The shelf life of the beer that has been pasteurized can reach half a year or even longer, and the requirements for transportation conditions will also be reduced. Although the production cost will increase, for a winery with a certain scale, it is more cost-effective to introduce a set of purge equipment for overall cost considerations.

Weather you want to brew craft beer or brew commercial beer,weather you want to start a new beer brewery project or expand your brewing scale.No matter what you want to brew lager or ale,stout beer or light beer,barley beer or wheat beer,fruit beer or corn beer,low concentration beer or high concentration beer.......DEGONG brewing equipment always can meet your requirement.

If you have interest,welcome to contact me freely
