2 vessel brewhouse 10HL and double size hot water tank steam or electric heating

A mash tun converts the starches in crushed grains into sugars for fermenting. Most mash tuns have a false bottom and sparge arm so the sparging (or lautering) process can be performed in the same tank, thus extracting the sweet liquid called wort. Insulated Mash Tuns, which are highly recommended, help reach and maintain a consistent temperature while avoiding the potential scorching that can arise from a heat sources such a gas burners or electric elements.
Size:
Material:
Heating source:
Availability:
Quantity:
  • DGET-10HL

  • DEGONG

  • 8438400000

Product Description
1000L craft brewery equipment

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.



What do you need to start your own craft brewery?

Malt mill,

brewhouse,

suitable number of fermentation and maturation tanks,

water preparation and storage tanks (separate for hot and cold water),

chiller,

steam generator,

pump,

flexible piping: for pumping the product into the fermentors, for water pumping,

keg and bottle filling equipment,

packaging: bottles, cans, kegs,

labels for bottles and other packaging


hlt can be available double size of brewhouse

2 vessel brewhouse with hot water tank(can be available double size of brewhouse)


 Mash & Lauter tun used for producing craft beer

Made of stainless steel 304.

Exterior walls completely welded with TIG welding, with 80mm of insulation in the bottom of the tank and in the walls.

Mirror polished interior.

Integrated jacketing system with laser at the bottom and on the walls of the tank.

Heating velocity: 1ºC/min.

Components:

Detachable rectangular side cover to remove the used grain.

Motor system (adjustable speed/inverter).

False bottom filter.

Sparging (lautering) in the upper part.


 Boiling & whirlpool tank for craft beer

Vertical and cylindrical container made of stainless steel 304.

Exterior walls completely welded with TIG welding, with 80 mm of insulation in the inferior region and walls.

Mirror polished interior tank.

Jacketed at the bottom and on the walls, with heating capacity via electric heating/steam heating(Equipped with steam boilers: electric boilers, gas boilers and oil-fired boilers)/direct fire heating.

Components:

Tangential wort entry.

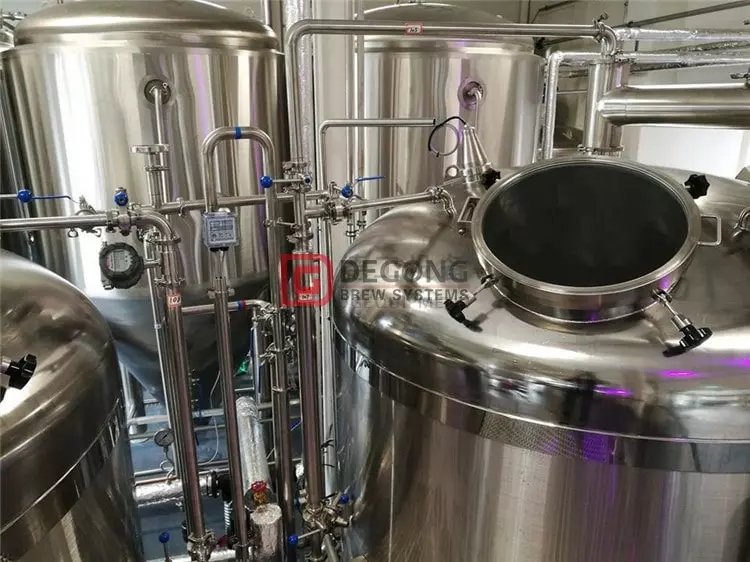

Bright stainless steel appearamce and glass manway

Bright stainless steel appearamce and glass manway


Factory brewery equipment

Factory brewery equipment


Heat exchanger

Usage: wort fully cooled in one hour.

Temperature probe: PT1000.

Material: Stainless steel 316.

Wort cooling: from 100ºC to 18ºC.


Pump

Driven by a 0.75 kW motor.

Continuous speed control, with a frequency converter.

Pump and temperature controlled with PLC.

Material:stainless steel 304

Pump used for production and cleaning (CIP).


banp-min

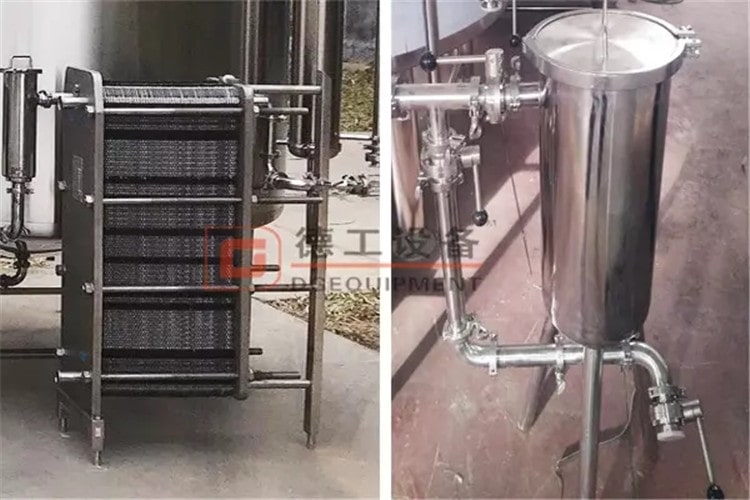

Plate heat exchanger and yeast adding tank


World-brand controler

World-brand controler


Top mahole fermentation tanks with two discharge

Top mahole fermentation tanks with two discharge


Details:

  • tanks are available with torispherical and conical bottom

  • the conical bottom assures the easier removal of yeast from the tank

  • the tanks are available with side, top manholes depending on the size and your needs

  • the top manholes can handle high pressure, easily to handle

  • the side manholes are can be easily cleaned without any blind area

  • the material of the whole tank is stainless steel

  • Inner surface with a roughness less than 0.6µm to avoid the contamination spots that are hard to wash

  • 2 cooling zone (Cylindrical and Conical part)

  • Vessel pressure:1.5bar/3bar

glycol system


Contact Alice today

Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.
