10HL High Quality Stainless Steel Commercial Beer Brewery Equipment with Conical Fermentation Tank And Steam Beer Brewhouse

DEGONG have been building beer brewery equipment for over 10 years. Specializing in electric, steam, and direct fired brew houses from 100L to 5000L, distilling systems from 150L to 2000L, and complete beer brewing solutions, we’ve got the experience and know- how to build a system that’s best for your needs
Material:
Heating source:
Size:
Electric element brand:
Control panel:
Quantity:
  • DGET-10HL
  • DEGT
  • 8438400000
Product Description


We’ve been building beer brewery equipment for over 10 years. Specializing in electric, steam, and direct fired brew houses from 100L to 5000L, distilling systems from 150L to 2000L, and complete beer brewing solutions, we’ve got the experience and know- how to build a system that’s best for your needs.


Whether you’re starting up a new brewery, adding a pilot system or cellar tanks, or just need some parts to keep you up and running, DEGONG can provide all you want from full turnkey systems to pumps and probes.


未标题-1 (2)


DEGONG Beer brewhouse introduction

Beer Brewhouse combination is flexible according to your needs and daily work shift. In general, the brewhouse's main tank: mash tun,lauter tun, kettle and whirlpool tank ,which is combined freely from two vessels to four vessels.

750 BW-min

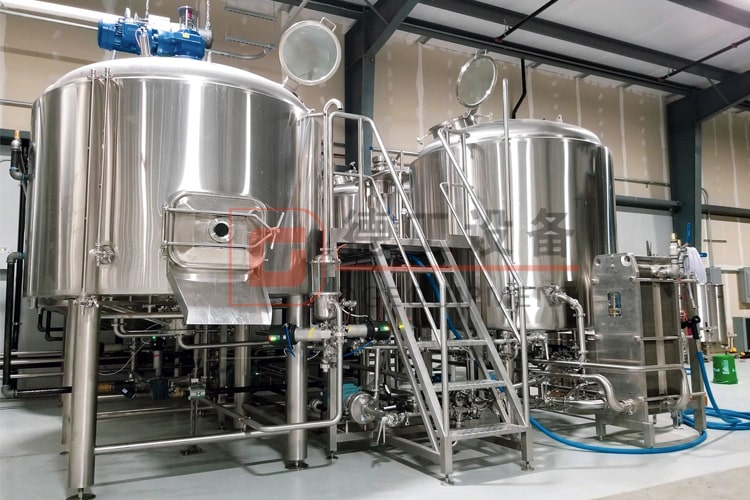

2-vessels brewhouse with "mash/lauter tank+boiling/whirlpool tank+hot water tank

3-vessels beer brewhouse with“mash tank+lauter tank+boiling whirlpool tank”

4-Vessels beer brewhouse with“mash tank+lauter tank+boiling tank+whirlpool tank”

Electric heating/steam heating/direct fire heating

beer brewhouse



Heating System

The source of heat is the heart of your brewhouse. Whether electric, steam, or direct/indirect fire is the best for your brewery depends on a range of factors. Your beer brewhouse size, the available utilities, and the initial and ongoing costs all need to be considered when deciding on a heat source.


1.Electric heating

Our turnkey electric systems are available for the equipment below 1000L.

  • Electric heating is nearly 100% efficient. Because the heating element is submersed in the strike water or wort, all of the heat energy is transmitted directly to the liquid, not lost to heating your brewery

  • Electric heating enables a compact and flexible design, great for small spaces

  • Low equipment and installation costs

  • Precise control for a high level of repeatability and automation

  • No carbon emissions at the brewery



2.Steam heating

Steam systems are widely used for brewing systems of all sizes. We offer turnkey steam brew houses up to 5000l with varying levels of automation. The steam systems have many advantages:‍

  • Used for larger brewhouses

  • Higher efficiency (compared to direct fire)

  • Larger heating surface area

  • Ideal for spaces with limited electrical power


3.Direct fire heating

For some areas,the electric and steam using is limited,so they will choose the direct fire heating method.Because they don't require a boiler, they come with a lower up-front equipment and installation cost compared to steam.


750 文章5-min


Contact us for a consultation as you start planning your brewery, and our specialist will help you decide which heat source is right for you.



For 10HL beer brewhouse,3-vessels beer brewhouse is a common choice.


1.Mash kettle equipped with:

Mash mixer with gearmotor;

Interior lighting;

Two rotary washing heads;

Inspection hatch;

Ventilation piping with gate;

Thermal insulation (polyurethane foam).



2.Lauter tank equipped with:

Equipping:

Grain raker;

Interior lighting;

Sparging system;

Grain unloading hatch;

Two rotary washing heads;

Inspection hatch;

Ventilation piping with gate;

Thermal insulation (polyurethane foam).



3.Whirlpool tank equipped with:

Interior lighting;

One rotary washing head;

Inspection hatch;

Ventilation piping with gate;

Thermal insulation (polyurethane foam);

Wort pump.


未标题-1-min (7)

Raker&Grain unloading hatch&sight glass&pipe

未标题-1 (3)

Sight glass&tangential port
