Vertical / Horizontal Jackte Brite Tanks 1-100BBL Bright Beer Tank Brewery Or Distillery Vessels

Bright beer tanks/brite tank are used for the storage of the beer prior to being served or packaged. And the secondary fermentation proceeds in the bright tank. So it normally need glycol jacket to control temperature. For brewpubs, serving is often done by pumping or pressurizing the beer toward the serving location. But if budget is not sufficient, the fermentation tank added carbonation device can serve as bright beer tank.
Availability:
Quantity:
  • DGET 1-100BBL
  • DEGONG
Product Description

Vertical / Horizontal Brite Tanks


Configuration

Pressure

Design pressure 45 psi (3bar)

Working pressure 30psi (2bar)

Interior shell

304 stainless steel, thickness 4mm

Exterior shell

Fully welded,304 stainless steel, thickness 2mm

Interior and exterior finish

Acid washing to 0.6um

Dish head and cone bottom

Carbonation stone and level

20% headspace, unless a different volume is requested

Top manway or side manway door

Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet

Polyurethane insulation thickness 80mm for cooling jacket on side and bottom

Non welding CIP arm and rotating 360 degree reach spray ball

Solenoid relief valve, pressure relief valve (safe valve) are standard

Pressure gauge

Temperature sensor well

Sanitary sample valve and port

All clamps and gaskets to attach all accessories

Tank complete with piping, fittings, sanitary valves and all parts.

4 stainless steel legs with leveling footpads

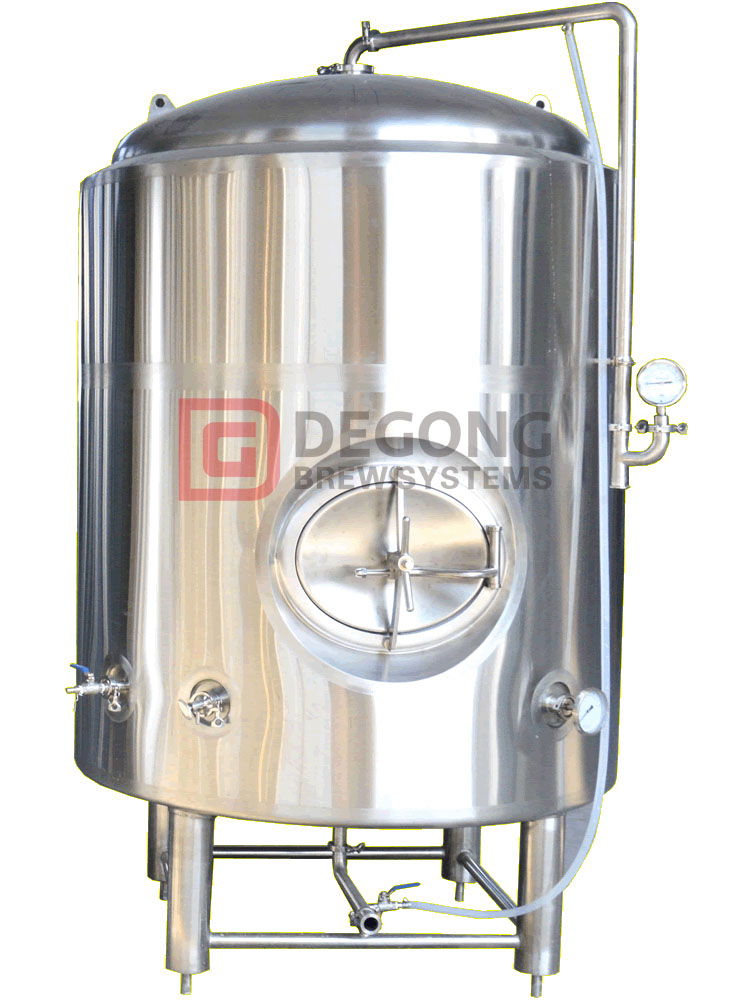

689


Details of Brite Tank


693

694


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
