1000L Hot liquor tanks and pumps 500L and 1000L fermentation tanks/bright tanks

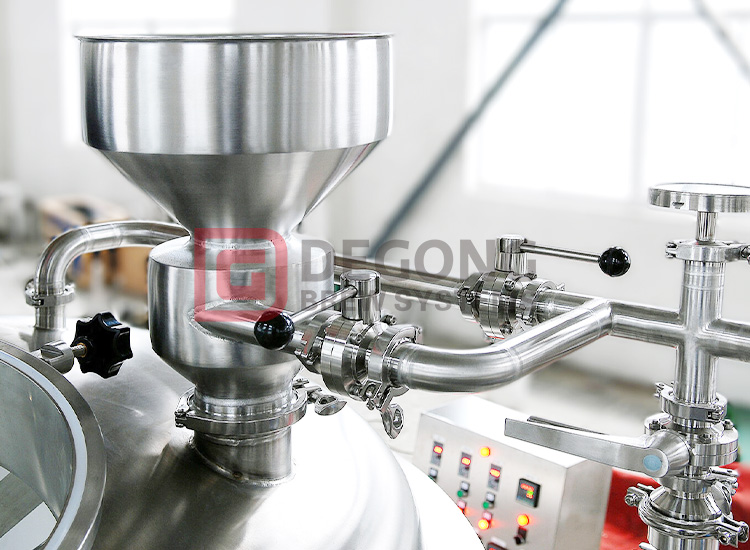

Mash/lauter tun – grist hydrator, false bottom, rake, sparging
Kettle/whirlpool tun – steam/ electric/ direct gas fired heating system, tangential entry
Pumps with ABB motor
Stainless steel 304 working platform
Plate heat exchanger – 304 or 316 plates
wort grant, hops back
Pipelines and valves
1000L Hot liquor tanks and pumps

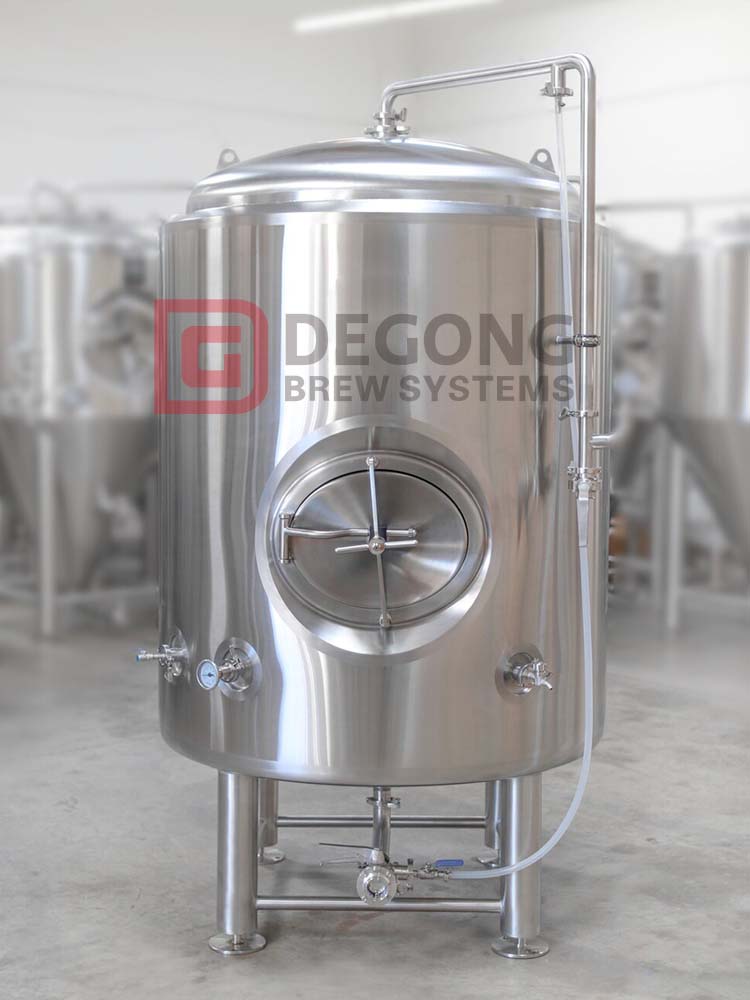

500L and 1000L fermentation tanks/bright tanks
Chiller and Glycol tanks
This system can meet various needs of beer mashing, maltose syrup, syrup, fermentation, wort, wort, cooling, oxidation, etc.
All tanks are molded with SUS304, which conforms to food hygiene and safety standards. Steam heating.
The tank is equipped with a frequency conversion mixer, which can realize the speed change of 0 ~ 50r/min, satisfying the Rotation speed requirements for saccharification stirring and filter tank stirring.
Automatic control or semi-automatic control can be designed according to customer requirements.
The input, output and self-circulation of materials are connected by sanitary pumps and hoses.
The connection method of equipment pipeline is quick assembly type, which is convenient for installation, maintenance and repair in the production process.
Reasonable design, exquisite craftsmanship, elegant appearance, durable, convenient operation, maintenance and maintenance.
The hot water of the heat exchange plate is stored in the hot water tank for feeding, washing grain and cleaning.

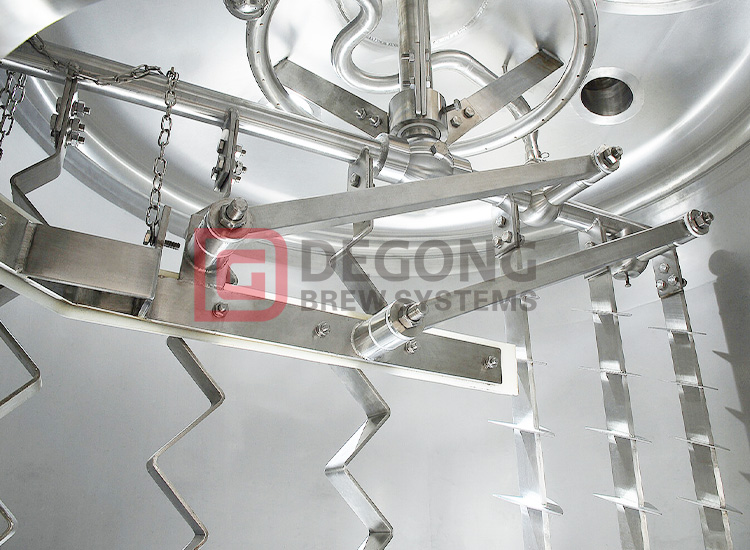

Saccharification and filtration in one tank, saving time and reducing wort oxidation. Staggering the scraper spindle head to make the scraper reach a high level, this design reduces work obstacles and saves more energy. The backwash system is located at the bottom of the tank to clean the bottom of the tank more cleanly.
Critical and frequent operating points can be equipped with manual or automatic controls.
Perfect and smooth process design makes the whole equipment compact and easy to operate
|Item||Production capacity||Volume in US Gallon||Heating area||Tank diameter||Height|
|DG-500||500L/day||132 US Gallon||0.5m2||1160mm||2400mm|
|DG-600||600L/day||158 US Gallon||0.6m2||1160mm||2500mm|
|DG-800||800L/day||212 US Gallon||0.8m2||1260mm||2500mm|
|DG-1000||1000L/day||264 US Gallon||1.0m2||1360mm||2800mm|
|DG-1500||1500L/day||396 US Gallon||1.5m2||1560mm||2900mm|
|DG-2000||2000L/day||528 US Gallon||2.0m2||1960mm||3150mm|
|DG-2500||2500L/day||660 US Gallon||2.5m2||1960mm||3200mm|
|DG-3000||3000L/day||792 US Gallon||3.0m2||2060mm||3800mm|
|DG-5000||5000L/day||1320 US Gallon||5.0m2||2260mm||4400mm|
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
