|brewhouse combination:|| |
|Heating method:|| |
|2000L breweries to produce quality beer|

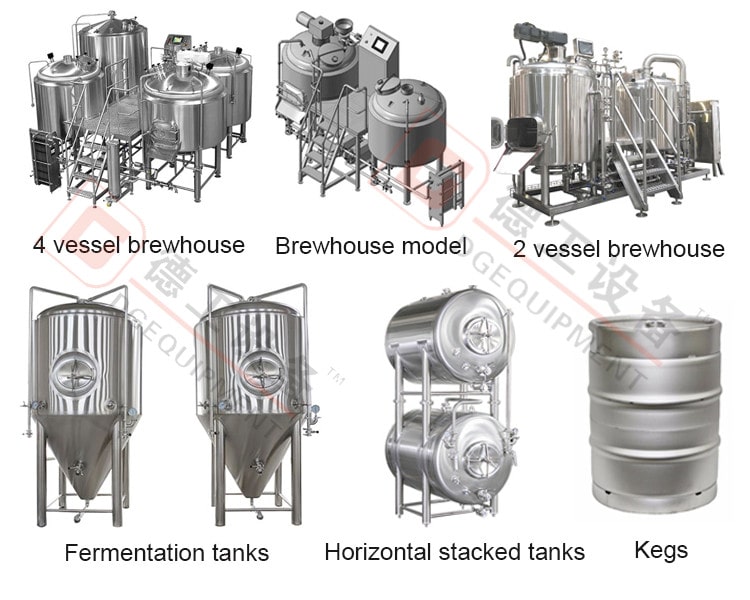

The following shows you a set of 2000L beer equipment：Includes mashing system,fermenting system(cellar tank:fermentation tanks/brite tank/serving tank...),chiller unit,glycol tank snd more anxu Auxiliary equipment。
Beer requires these ingredients for brewing: properly prepared cereal grain (usually barley and corn or rice), hops (scientific name Humulus lupulus), pure water, and brewer's yeast. Each ingredient can affect flavor, color, carbonation, alcohol content, and other subtle changes in the beer.
Grains are carefully stored and handled to promote highest quality. Hops are a form of cultivated perennial hemp, and the useful portions of the vine, the sticky cones, are developed from the bloom. About 35 pounds (16 kg) of barley malt and 15 pounds (7 kg) of grain are used to make each 31-gallon barrel of beer. Large quantities of pure water are extremely important not only as an ingredient, but for maintaining the cleanliness of the brewing equipment. In beer, water high in lime or iron can interfere with the fermentation process and discolor the final product. Yeasts are fungi, which are microorganisms that reduce sugars to alcohol by fermentation. Some types of brewer's yeast are closely guarded trade secrets.
Raw Material:malt,yeast,water and hops
Fully ripened barley grains are "steeped," or soaked in cold water until they are fully saturated. The water is changed once a day, and after 45-72 hours the grains are placed in shallow tanks. The grain is aerated and stirred, which causes it to germinate, releasing enzymes such as malt diastase. Malt diastase converts the starches contained in the grain to sugar for fermentation. As soon as the germination is adequately complete, usually six days, the grain is roasted to stop the germination process. The exact point at which the roasting starts and ends affects the flavor and color of the beer. The product at this point is referred to as malt.
The malt is crushed using iron rollers and transferred to the mash tank (or "tun"). This tank is a large copper or stainless steel vessel that mixes the malt with warm water until it is of porridge-like consistency. This mixture is called mash. After mixing with similarly prepared cereal grains, the temperature of the mash is raised incrementally from 100-170°F (38-77°C) so that the enzymes react. The enzymes break down the starch in the grain and convert it to simple sugars. Later, the yeast will convert the sugars into alcohol. Once complete, the mash is allowed to sit undisturbed so the solids can descend to the bottom of the tank.
Brewery brewhouse system with hopper and grant
The liquid contained in the mash is transferred into another tank called a lauter tun. This is accomplished by drawing the liquid out through the bottom layer of mash solids, which acts as a filter. Hot water is added to the top of the mash tank to rinse the remaining liquid, now called wort, from the mash. The solid remains of the grain are dried and sold by the brewery as animal feed. The wort travels on to the brew kettles, where it is boiled to sterilize it, and where the carefully prepared hops are added. The addition of the hops is important because they contribute to the bitterness of the beer. The brew kettles are the most impressive equipment in the process. Steam usually provides the heating energy to the brew kettles. After brewing is complete, the finished wort is filtered again and pumped to the fermentation tanks.

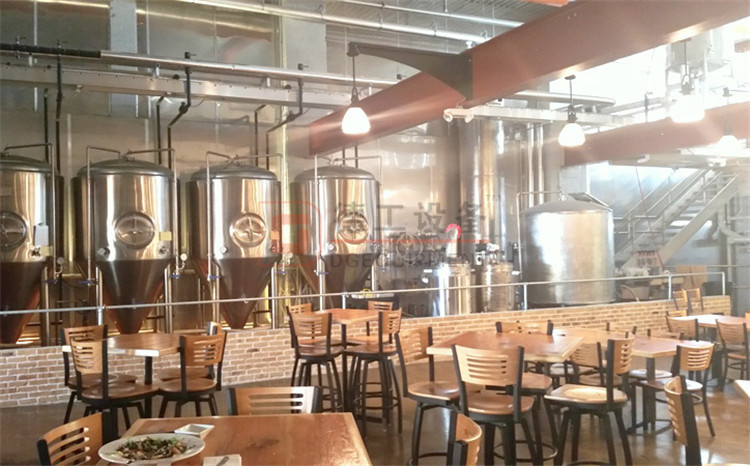

2 arm 2000L fermentation tanks for serving restaurant
In the fermentation tanks, the atmosphere must be carefully controlled to prevent any "rouge" bacteria from interfering with the yeast. Carefully maintained yeast (approximately one pound per barrel of wort) is added to the wort, and the temperature of the mixture is slowly reduced over a period of days to between 50°F and 60°F (10-15°C). In this temperature range, the yeast grows, consuming the sugar in the wort, and bubbles of carbon dioxide form. The wort has now become beer. The new beer is filtered and transferred once more into the aging casks, where the temperature is controlled at 33°F (°C) for 2-24 weeks. The shorter storage time produces a pale lager beer while the European lagers (called BeerPilsner) are aged longer to increase the alcohol content.

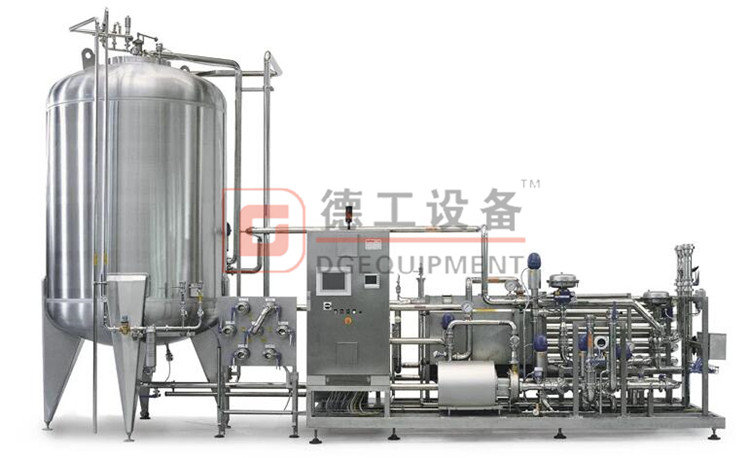

Beer pasteurizer for cans and bottles
After aging, the beer can be pasteurized to kill the remaining yeast and prevent further alcohol production. This is accomplished by heating the beer above 135°F (57°C).
Whether packaged into cans, bottles, or kegs, the beer is always moved gently through the maze of piping in the bottling area. This is to preserve the natural carbonation. During bottling, additional carbon dioxide gas from the fermentation kettles is used to improve the aroma of the beer. High-speed packaging lines can process thousands of cases of beer per day, and with modern computerized control, the inventory can be tracked throughout the distribution network. Most beer is delivered from local distributors who have purchasing contracts with the major breweries.
A series of brewery tanks for brewing beer
Let us understand your needs, and then arrange a suitable price list and the drawings you need. In order to fully control the details of your project and better planning
|Contact Alice today|
In our excellent collection of brewing equipment, we offer our clients premium quality Microbrewery Equipment. This brewery equipment is well-manufactured by the use of premium quality components, basic material and sophisticated technology.
