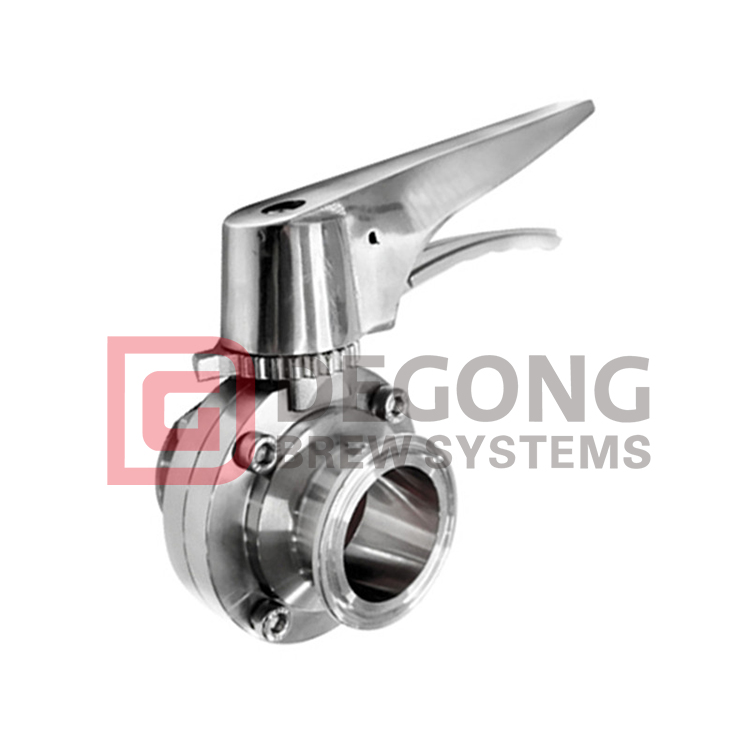

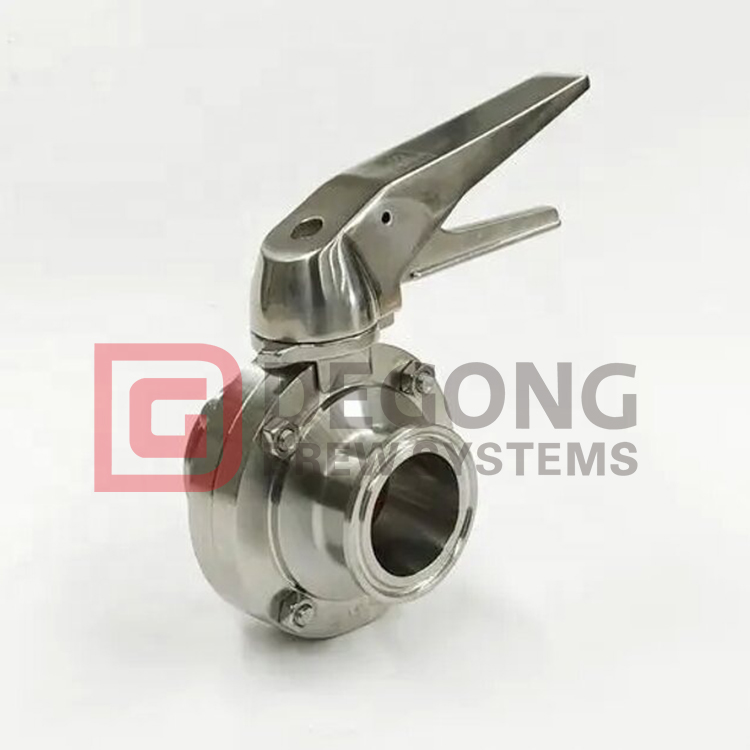

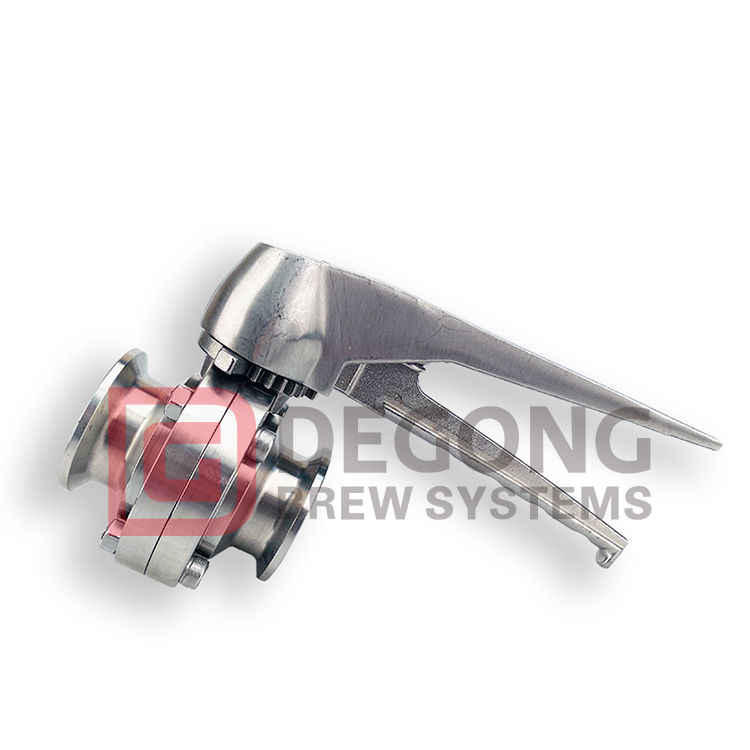

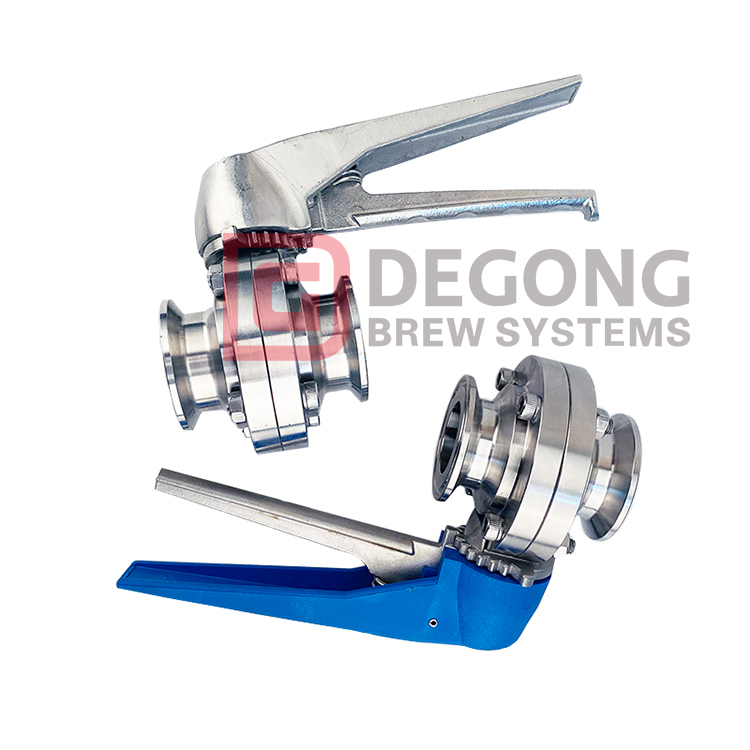

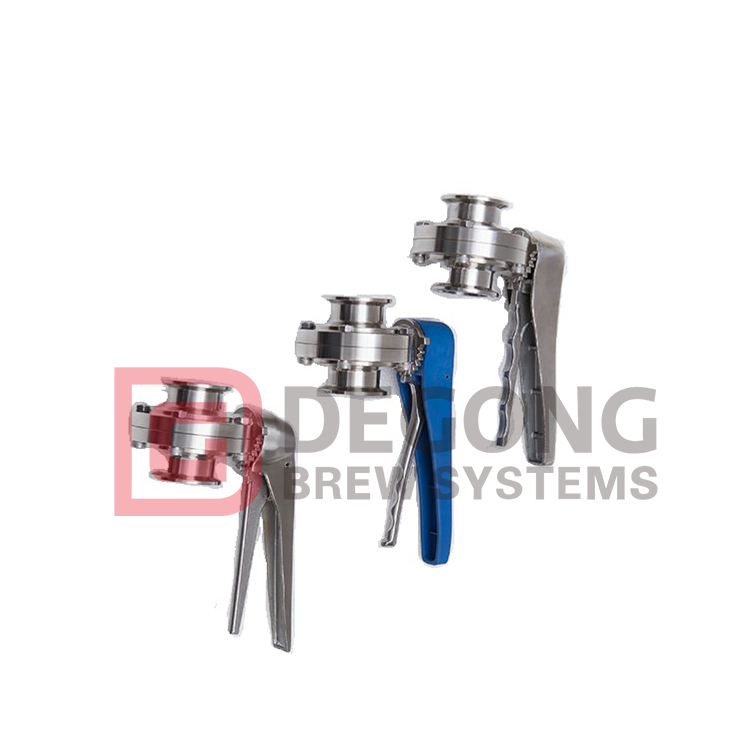

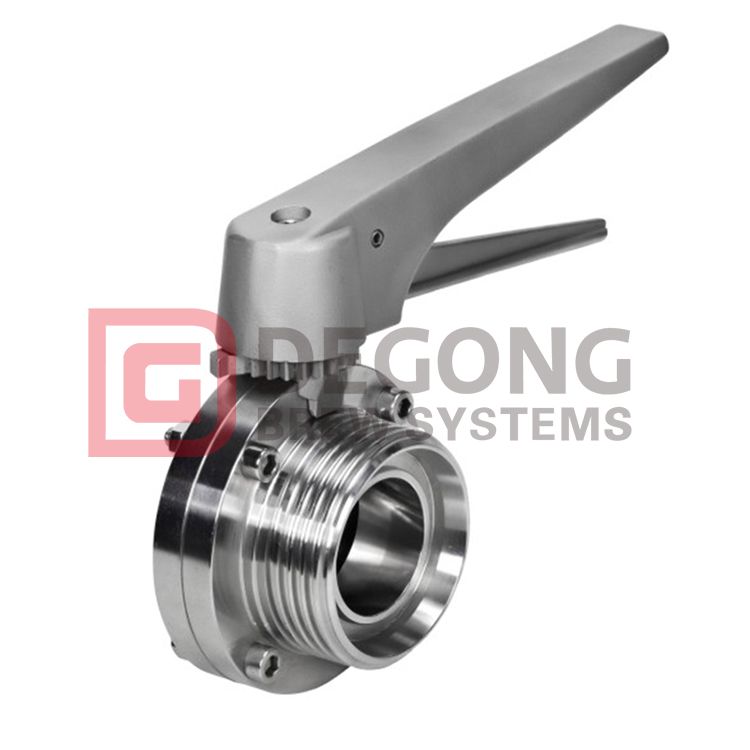

Stainless Steel 304 316L Tri Clamp Manual Sanitary Butterfly Valve With Different Types of Handle

Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media. It mainly plays the role of cutting off and throttling on the pipeline. The butterfly valve opening and closing part is a disc-shaped butterfly plate, which rotates around its own axis in the valve body to achieve the purpose of opening and closing or adjustment.
Availability:
Quantity:
  • Stainless steel handle DIN butterfly valve
  • DEGONG
Product Description

Stainless steel handle DIN butterfly valve, as a component used to realize on-off and flow control of pipeline system, has been widely used in many fields such as petroleum, chemical industry, metallurgy, hydropower and so on. In the well-known butterfly valve technology, its sealing form mostly adopts a sealing structure, and the sealing material is rubber, polytetrafluoroethylene, etc.


108


Product Name: Stainless Steel Sanitary Butterfly Valve
Size: 1/2”-12”,DN15-DN300
Connection End: Welding,clamped,threaded,Flange
Standard: DIN, SMS, RJT, 3A, ISO, IDF
Gasket: Silicone,EPDM,Viton
Operation Way: Manual,Pneumatic and Electric actuator
Max Temperature: 10bar
Working Temperature: -10°C to +120°C

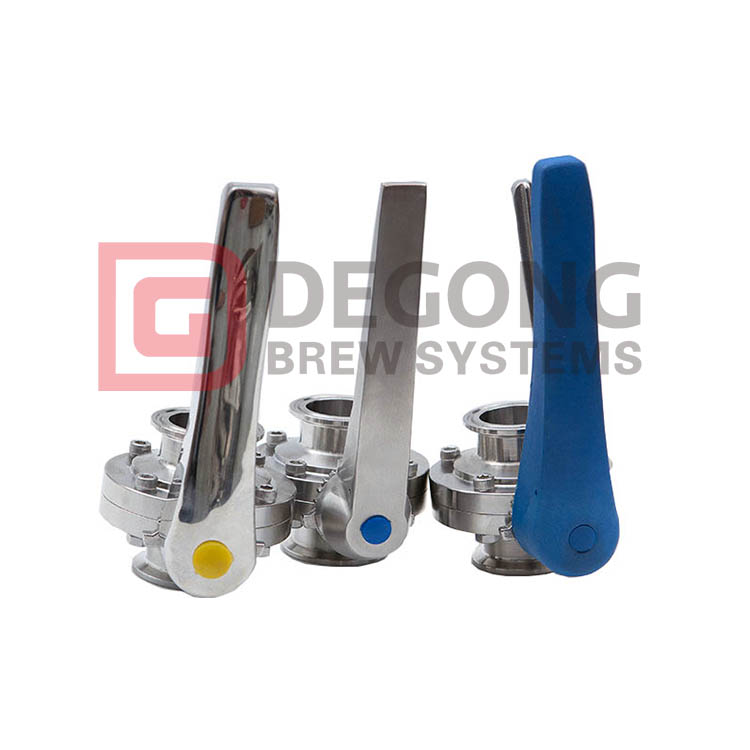

Manual handle choose: Pull handle, multi-position plastic handle and multi-position stainless steel handle
Application Scope: Dairy, food, beer, beverage, pharmacy, cosmetic, chemical industry etc.



105106107108109104103

DEGONG has other size materials, please contact us if you need.
