Stainless Steel 304 316L Multi Cartridge Filter Housings

The cartridge filter housing system provides a wide range of flow and contaminant retention capabilities. Its diameter can hold approximately 1 to 500 ink cartridges. Cartridge filters are commonly used as refined filters in almost all types of processing industries.
Availability:
Quantity:
  • Multi Cartridge Filter Housings

  • DEGONG

Product Description

Multi Cartridge Filter Housings


These filters consist of a filter housing, a filter element, a tube sheet, and a front sealing device of the filter element, depending on the type of filter element and the choice of end connection. The front sealing arrangement of the cartridge filter ensures that no particle migration or fiber migration occurs even after a high pressure difference.


Operation

Contaminated fluid enters the housing and is distributed evenly around the filter cartridges. Filtration takes place from outside to inside. Solids are collected on the outside of filter cartridges & clear filtrate is collected at outlet.

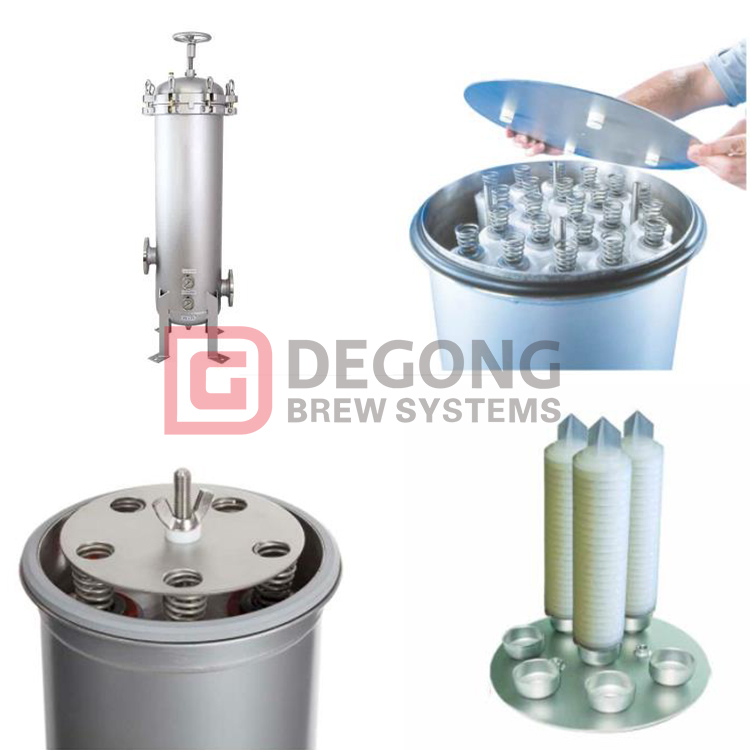

Products Show

279280282285

Features and advantages

  • High dirt holding capacity.

  • Zero procrastination design.

  • The permanent pipe casing can be opened without special tools and pipe interference.

  • Machined cover gasket groove provides positive O-ring seal

  • Easy to clean.

  • The in-line inlet and outlet have high flow rates and adopt a positive sealing arrangement to avoid bypass.

  • Suitable for double-opening filter element.

  • Can accommodate 10", 20", 30", 40", 50" and 60" long filter elements.

  • Termination of ¾” to 24” pipes.

  • V-shaped column or threaded center column.

  • Quick opening clover design.

  • Easy to operate and low maintenance

  • Less downtime.

  • The flow rate is up to 2000 cubic meters per hour and more.

  • Customized design can be provided.

  • The shell is a permanent pipe.

  • All shells made of SS 316 L, SS 316 and SS304 are mirror polished and electropolished to prevent the adhesion of dirt and scale.

  • The carbon steel shell is sandblasted, epoxy coated, and finally coated with two layers of synthetic enamel.

  • Provide duplex/triple/jacket filter element design.

  • Can provide high temperature and high pressure design.

Dimensions (applicable to filter element filter housing)

  • 1 to 500 ink cartridges in a single housing.

  • 2”, 2.5”, 4”, 6” and 8” cartridge diameter.

  • 10", 20", 30", 40", 50" and 60" filter element length.


Flow

Capacity: up to 2000 m 3 /hr and more.


End connections available

  • NPT / BSP Threaded

  • Flanged Table E / Table F

  • ANSI B 16.5 Flanged

  • DIN Standard

  • Tri Clover Adaptors

  • SMS /Dairy End Connection


Application

Pharmaceuticals Petroleum Derivatives
Water Treatment Coolants
Paints & Inks Food & beverages
Bore Well water Dairy
Dyes & Intermediates RO Pre filtration
Processing Chemicals & Many More



In addition to our standard filter series, we can also manufacture customized filter housings with different specifications according to customer requirements. For the correct filtering solutions and tailor-made quotations, please call or email our filtering experts.

We are happy to help you.
