Stainless Steel 1.5 Inch Triple Clamp Ferrule DEGONG

The sanitary ferrule is a universal sanitary ferrule. We have the ability to provide ferrules with high surface purity and high precision, as well as custom design and manufacture of a small amount of special materials.
Availability:
Quantity:
  • DEGONG-1.5 Inch
  • DEGONG
Product Description

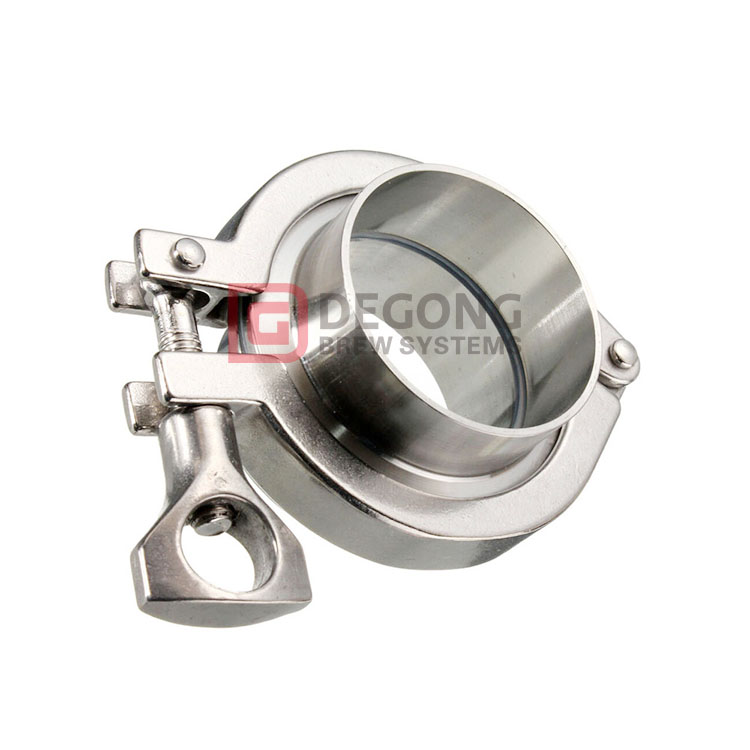

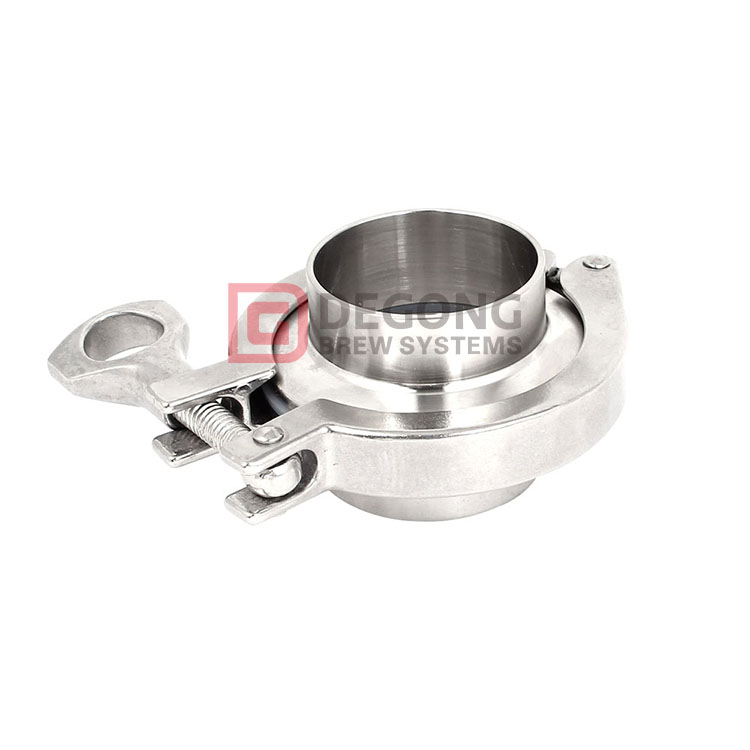

1.5 Inch Triple Clamp Ferrule


Specification
Pipe OD Ferrule Size Fits Tri-clamp
12mm 50.5mm 1.5"
19mm 50.5mm 1.5"
25mm 50.5mm 1.5"
32mm 50.5mm 1.5"
38mm 50.5mm 1.5"
45mm 64mm 2"
51mm 64mm 2"
57mm 77mm 2.5"

221

Material: 304 stainless steel

Three clip type: single pin

Three clip size: 1.5"

Ferrule size: 50.5mm

Suitable for pipe outer diameter: 12-38mm

Connection: clamping

223

Features

1. Sanitary 1.5" three clamps, suitable for 50.5mm ferrules.

2. Made of grade 304 stainless steel, this three-clamp can provide a single hinge for light-duty applications.

3. They are designed to hold the ends of the ferrule firmly together to form a leak-proof seal and are polished throughout the process.

4. Sanitary fittings are used in the food, beverage, biotechnology, pharmaceutical and other sanitary processing industries to transport fluids through pipes, and there are a variety of materials, surface treatments and shapes to choose from.

Package Included

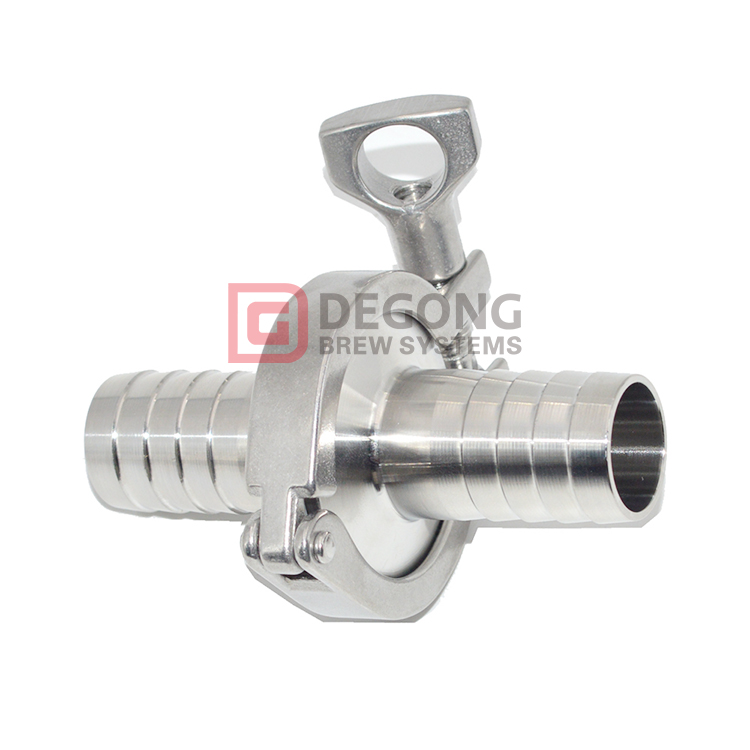

1 × Tri Clamp Clover (excluding welding ferrule)

222

Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
