DEGONG-6000L
DEGONG
The design of the so-called aseptic water tank is designed according to actual requirements, which can ensure that the water will not be contaminated by secondary pollution during storage and can separate clean water and sediment. To remove the sediment in the water tank, just open the drain valve at the bottom. No need to clean up manually. The use of water tanks is very wide, especially for some water storage industries. It has a good water treatment function and can prevent water pollution. The storage capacity is relatively large. 304 stainless steel is generally used.
The water tank uses a relatively new manufacturing process in the production process. There will be no laces and contaminants in the water tank. It has good hygiene standards. In the production process, every piece of stainless steel is reasonably designed. It can make the pressure in the water tank very uniform, and the sealing performance is also particularly good, which can prevent dust particles in the air from floating into the water tank. The main reason is that the volume of the water tank is not only large, but also lighter in weight. Compared with concrete, it is one twentieth of his. The appearance is simple and beautiful.
Parameter
Total capacity 6600 liters
Insulation diameter 1850 mm
Weight 450 kg
Heating element input power 6000 W
Pumping unit input power 1800 W
Total height 3910 mm
Accessories
Oval manhole 340*420 mm
Inlet and outlet armature DN 32
Negative piezoelectric armature DN 32
Overflow armature DN 50
Float valve DN 32
Expansion vessel 28 liters
Water pump 95°C 360W, 230V, 50 Hz, Hmax 35
Pump pressure switch
Armature discharged into sewage DN 25
Pipe connection for water inlet | Pipe DN32 – connection G1“ |
Pipe connection for pump suction | Pipe DN32 – connection G1“ |
Pipe for overflowing | Pipe DN50 – connection DIN11851 |
Vessel drain | Pepi DN32 – connection G1“ |
Pipe connection for sanitation | Pipe DN32 – connection DIN11851 |
Socket for level sensor G1/2“ | Sensor not included (MAVE) |
Socket for level sensor G1/2“ | Sensor not included (MAVE) |
Thermal sensor G3/8“ | PT100 |
Switchboard | Unit control |
Manhole 321x456mm | – |
Electric spirals – heating elements | 6 x 6kW |
Checkvalve | Regulation presure while draining |
Circulation pump | Homogenizing the hot water |
Applicable industry
Hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage plants, farms, restaurants, household use, retail, food stores, printing shops, construction engineering, energy and mining, food and beverage stores, advertising companies

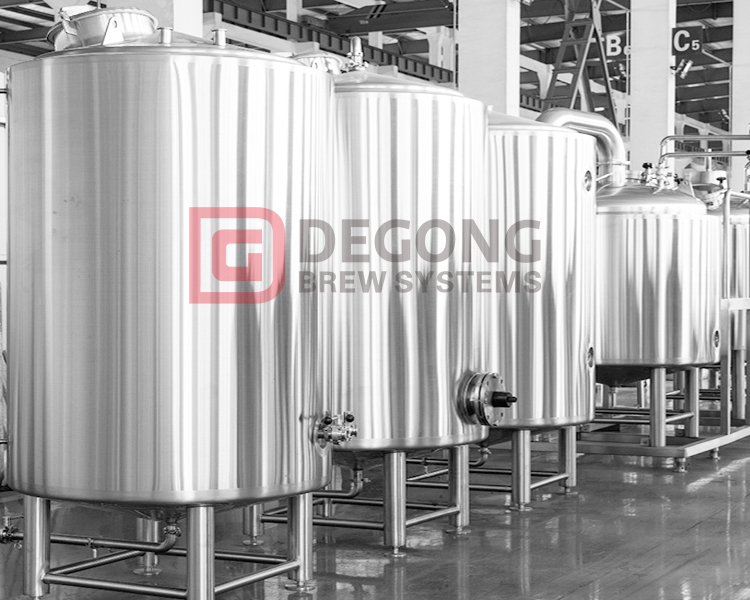

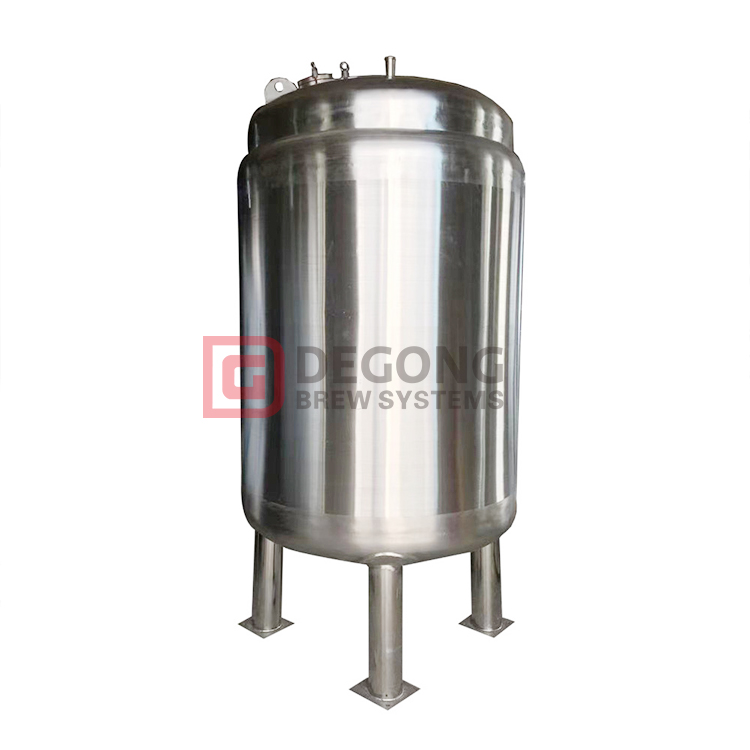

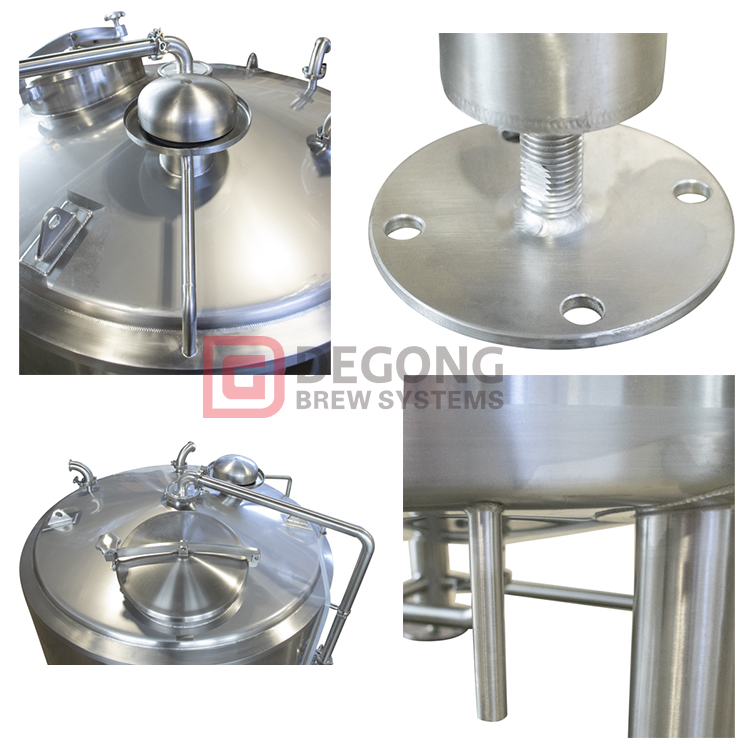

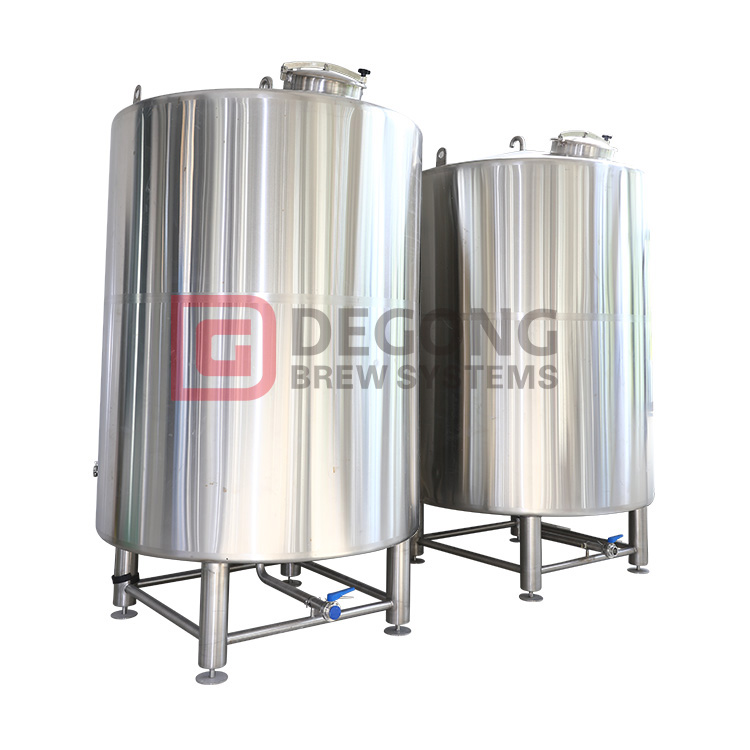

Hot water tank more display
