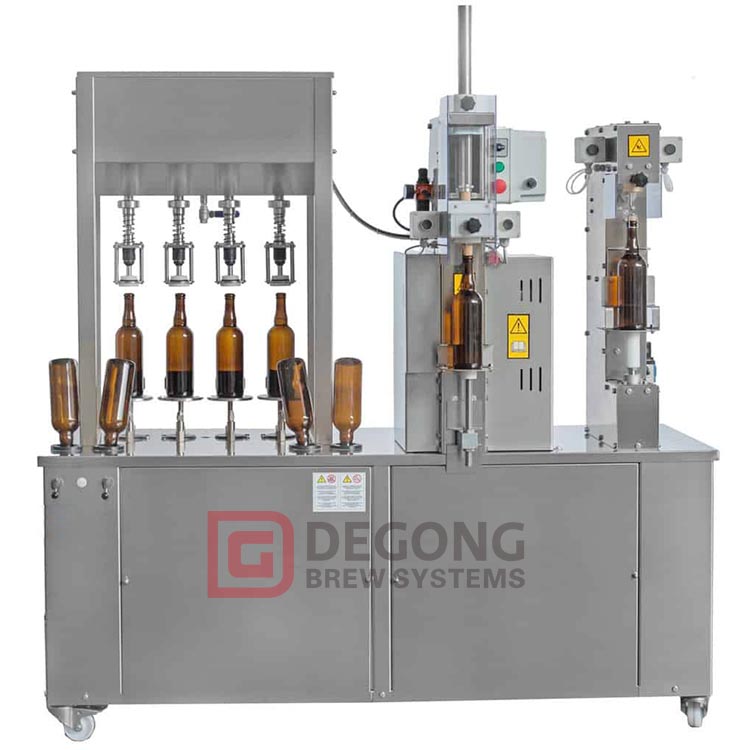

Semi-automatic Filling Machine
1st section : rinsing the bottles
Six rinsing positions
Rinsing six bottles in the same time (in standard)
Rinsing six cans in the same time (only with optional equipment)
1st rinsing cycle (in standard) : one-way water
2nd rinsing cycle (only with optional equipment) : recirculating solution (for example alkaline sanitizing solution)
3nd rinsing cycle (only with optional equipment) : one-way water (for example sterile water)
4rd rinsing cycle (only with optional equipment) : recirculating solution (for example sterilizing solution based on alcohol)
5th rinsing cycle (only with optinal equipment) : sterile air (drying the bottles)
2nd section : filling the bottles (or cans)
Six filling positions
Isobaric filling of carbonated beverage into six bottles in the same time (in standard)
Gravity filling of non-carbonated beverage into six bottles in the same time (in standard)
Filling beverages into glass bottles (in standard)
Filling beverages into PET bottles (only with optional equipment)
Filling beverages into aluminium cans (only with optional equipment)
The filling process takes place automatically, the operator only has to place all the bottles on the supports and remove them in the end of the process
Pre-evacuation (only with optional equipment) : First the single or double pre-evacuation of oxygen is carried out inside the empty bottles, by means of an external vacuum pump
At the end of the bottle filling process, the pressure compensation occurs between the bottle and the isobaric tank, and the beverage flowes up to the level of the level devices.
The type of deflector installed determines the correct flow while measures a level through the walls of the bottle.
The level of product inside the bottles is determined by the interchangeable devices depending on the capacity of the bottle and the level height required.
In the last phase, the bottles are de-pressurized, controlled by an opening and closing timer in order to gently release the pressure and avoid extremely foaming.
The controlled creation of a foam avoid entering of the oxygen in the bottles before they are closed.
By modifying the depressurization times, the operator can set more or less foam.
3rd section : capping the bottles
Single or double capping head with a crown caps sorter & with automatic feed of crown caps to the capping head
With the double head capping system you can close two bottles at the same time
Closing the bottles with steel crown caps (in standard version)
Closing the bottles with plastic or aluminium screw caps (in optional version)
Closing the aluminium cans with aluminium lids (only with optional equipment or in optional version)
Designed to closing of all types of the bottles – square, round, special shapes (with optional equipment)
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
