Semi-Automatic Beer Bottle Filling And Capping Machine

The machine is made of stainless steel and food-friendly plastics of different thicknesses. The structure uses four lockable wheels to facilitate the transfer of the machine. The filling process is automatic, the operator only needs to put all the bottles on the holder and take them out at the end of the process
Availability:
Quantity:
  • Semi-Automatic Beer Bottle Filling
  • DEGONG
Product Description

Semi-Automatic Beer Bottle Filling


Product Description

Semi-aotumatic beer bottle filling and Capping Machine
Type TRSABF3-3 TRSABF4-4 TRSABF6-6 TRSABF8-8
Beer working pressure 0.10-0.15MPa 0.10-0.15MPa 0.10-0.15MPa 0.10-0.15MPa
Bottle Type 330ml  500ml 330ml  500ml 330ml  500ml 330ml  500ml
Filling Part With Flowmeter Or Not No No No No
Air Regulator 0.55-0.65MPa 0.55-0.65MPa 0.55-0.65MPa 0.55-0.65MPa
CO2 Regulator 0.15-0.2MPa 0.15-0.2MPa 0.15-0.2MPa 0.15-0.2MPa
Beer Source Pressure 0.15〈X〈0.20MPa 0.15〈X〈0.20MPa 0.15〈X〈0.20MPa 0.15〈X〈0.20MPa
Filling Capacity 90-120pcs 130-160pcs 200-240pcs 280-320pcs
Power 1PH 110-240V 50/60Hz 1PH 110-240V 50/60Hz 1PH 110-240V 50/60Hz 1PH 110-240V 50/60Hz
Size:L*W*H (m) 1.26×0.7×2.2 1.50×0.7×2.2 2.0×0.7×2.2 2.50×0.7×2.2
Package Size:L*W*H (m) 1.40×0.85×2.35 1.65×0.85×2.35 2.15×0.85×2.35 2.65×0.85×2.35
Package Composite Borad Box

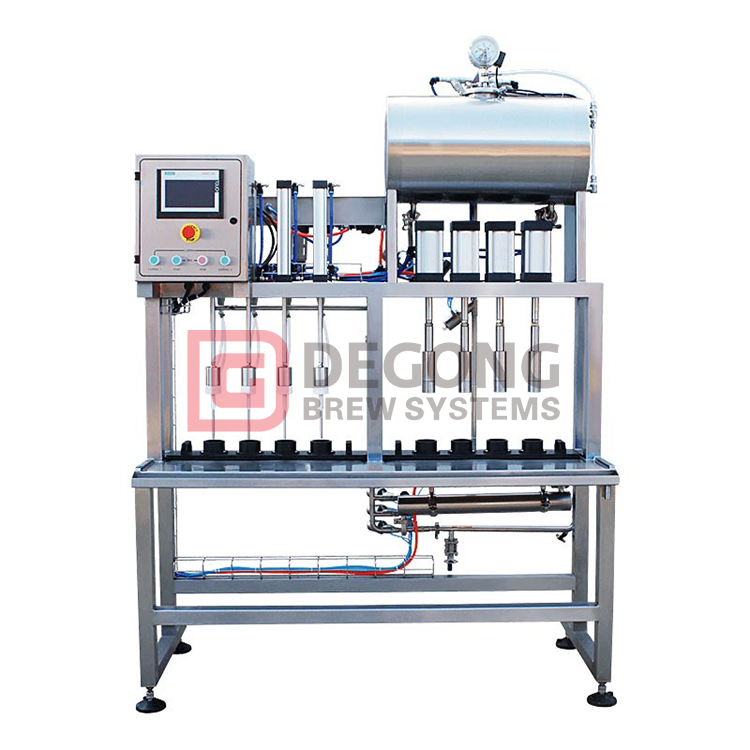

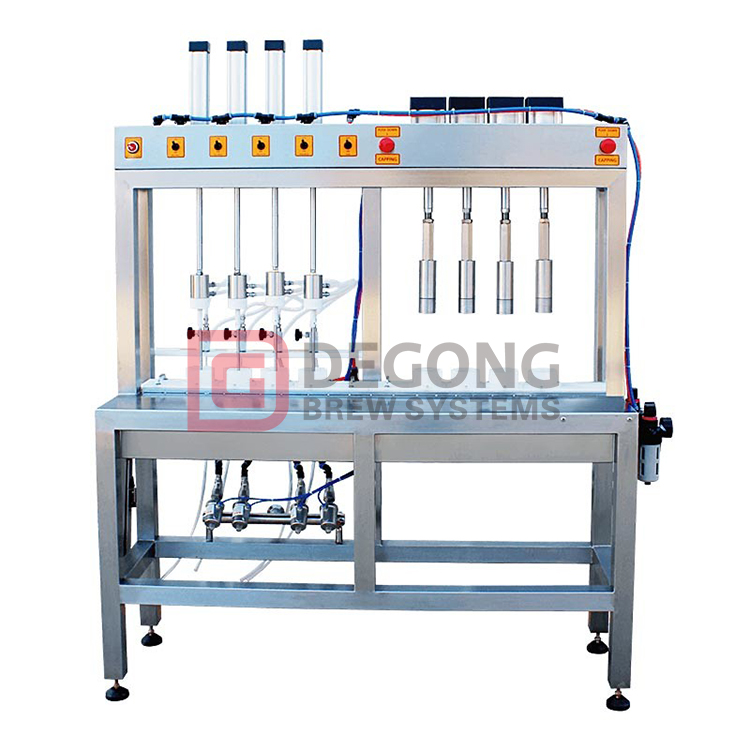

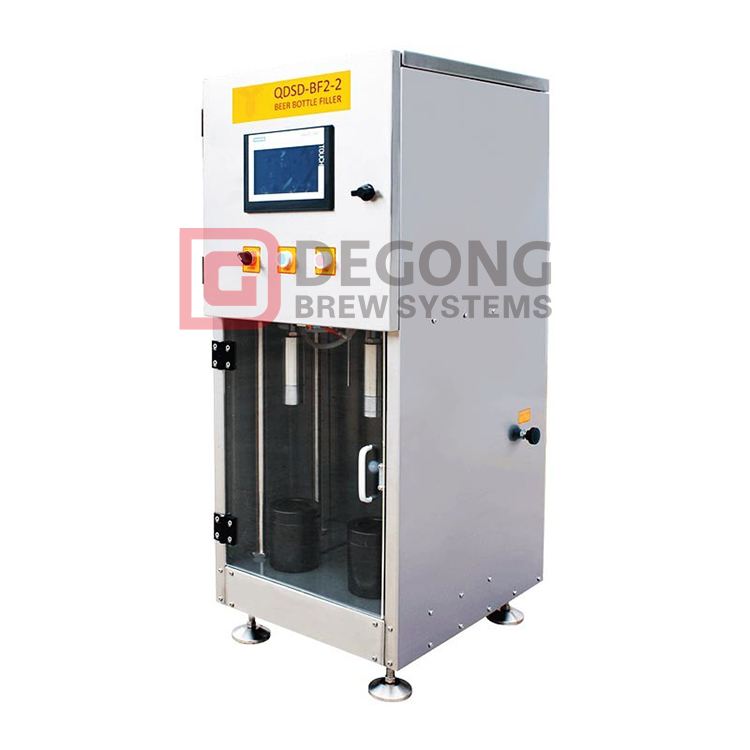

Products Show

401404402403

406

Our advantage

1. Professional manufacturing factory

2. Good quality and service control system, produced by skilled workers

3. Design and research according to customer requirements

4. Timely and effective delivery

5. Flexible payment methods.


Packing details

 plywood box with iron pallet or customized according to customer requirements
