Sanitary Pressure Relief Valve 1.5 Inch Tri Clamp with Pressure Gauge

Regulating valve is also known as pressure relief valve, which accepts the pressure of the regulating control unit and uses power operation to change the final control element of process parameters such as medium flow, pressure, temperature, and liquid level. The regulating valve is an essential link.
Availability:
Quantity:
  • DEGONG-1.5 Inch
  • DEGONG
Product Description

1.5 Inch Pressure Relief Valve


Technical specifications

Material: SUS 304 stainless steel

Application: beer fermentation tank, etc.

Power: Pneumatic

Connection method: clip

Connection: 1.5" three clamps

Outer diameter of ferrule: 50.5mm

Pressure gauge: (0.2-2.2 Bar / 3-32 psi adjustable)

Working temperature: -10℃~+120℃

Uses: beer, food, dairy products, pharmaceuticals, chemical equipment, etc.

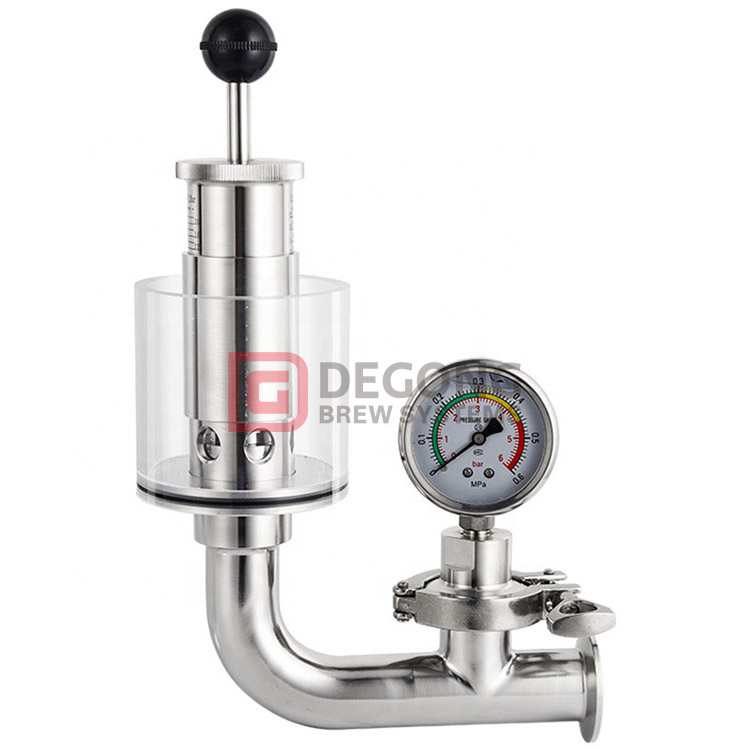

194


Working principle of safety valve

Under normal operating conditions, the valve remains closed. The specific pressure is set by adjusting the spring with a pressure nut.

When the pressure in the pipeline is higher than a specific pressure, the valve automatically opens to allow the liquid to pass through to reduce the pressure in the pipeline.

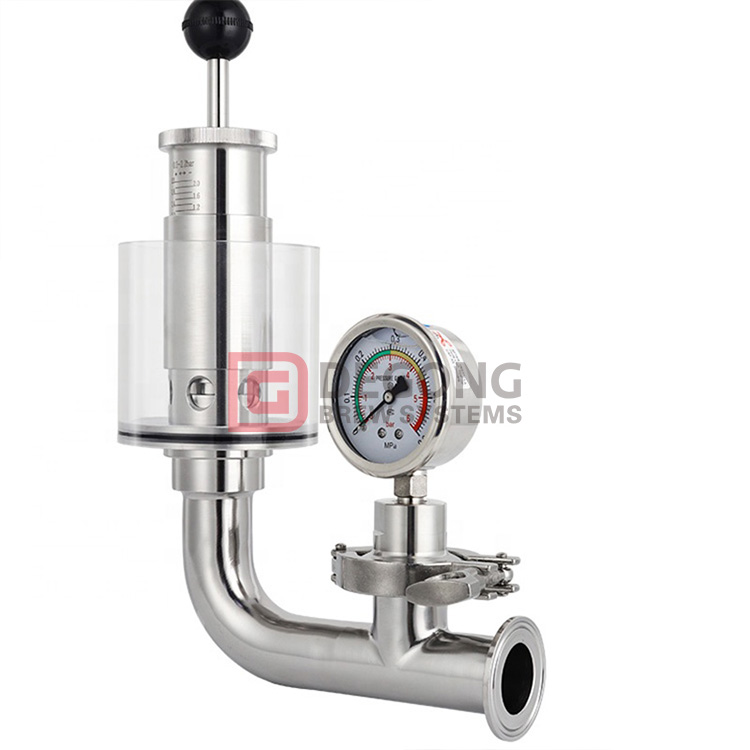

201

Feature
  • Airtight design

  • Quick seal design

  • Choose the material according to the fluid medium

  • Self-weight or spring loaded design can be provided

  • When the pressure in the pipeline is higher than a specific pressure, the valve automatically opens to allow the liquid to pass through to reduce the pressure in the pipeline.

  • Under normal operating conditions, the valve remains closed. The specific pressure is set by adjusting the spring with a pressure nut.

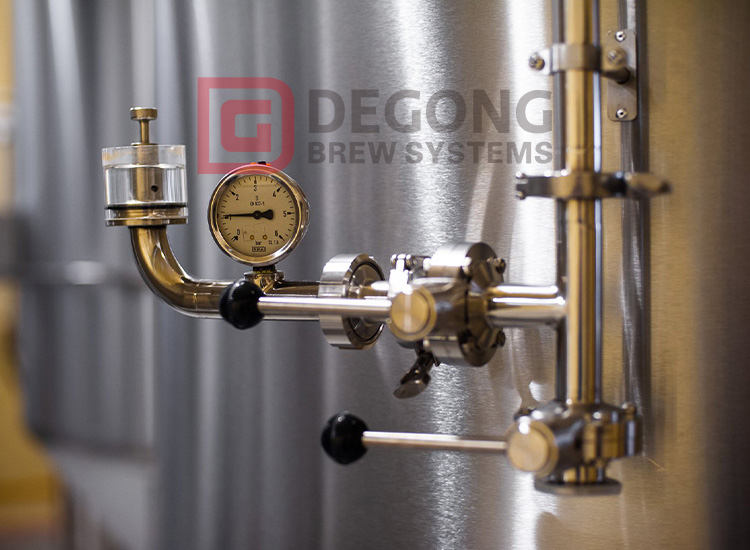

199

Product details

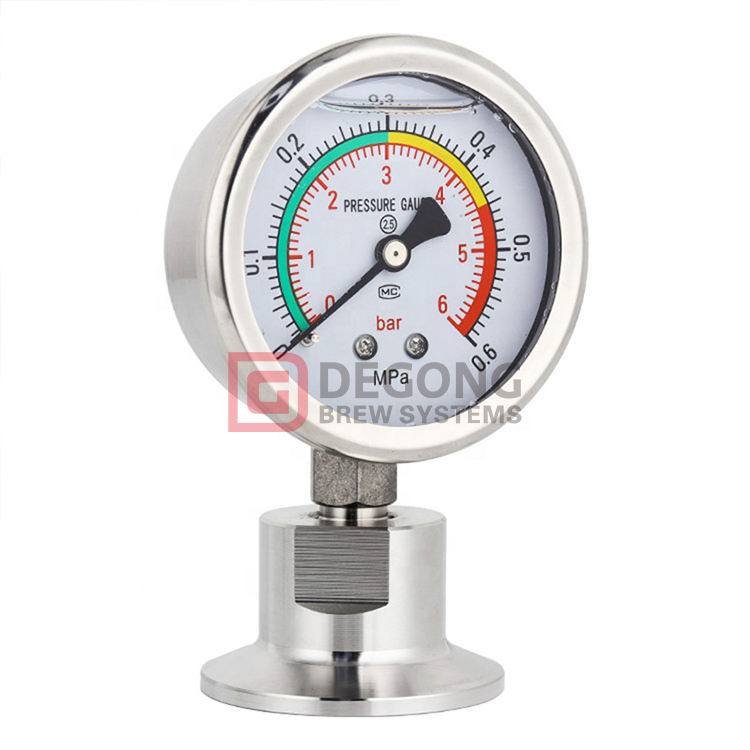

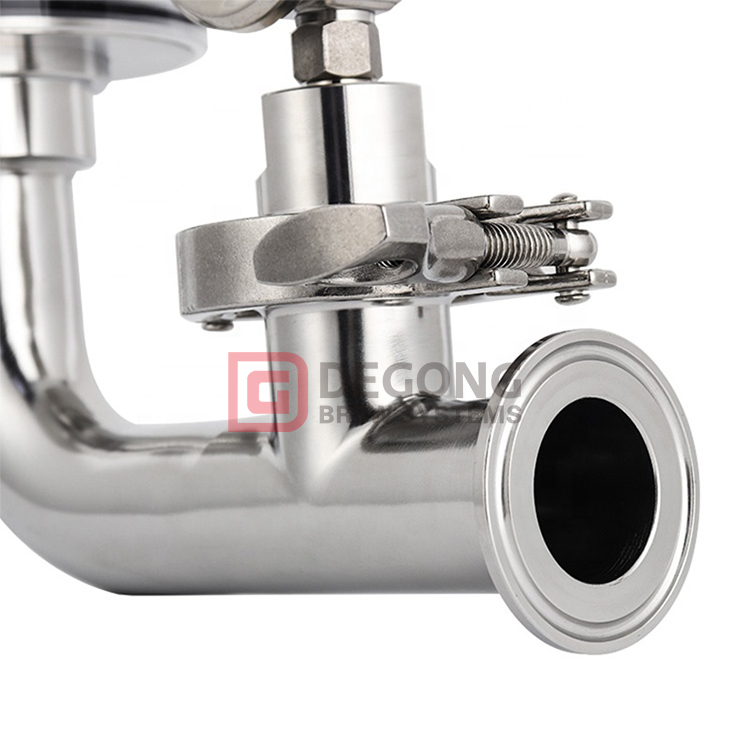

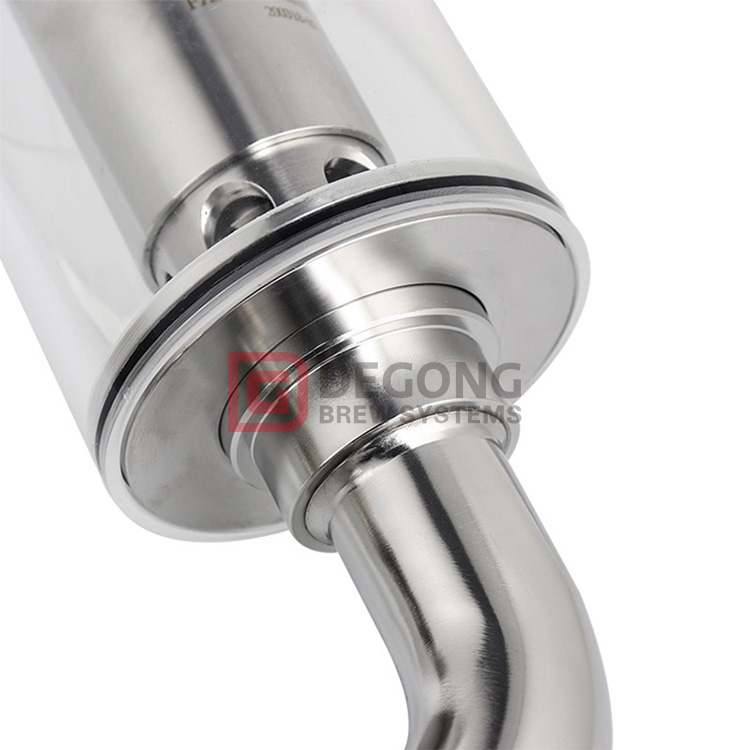

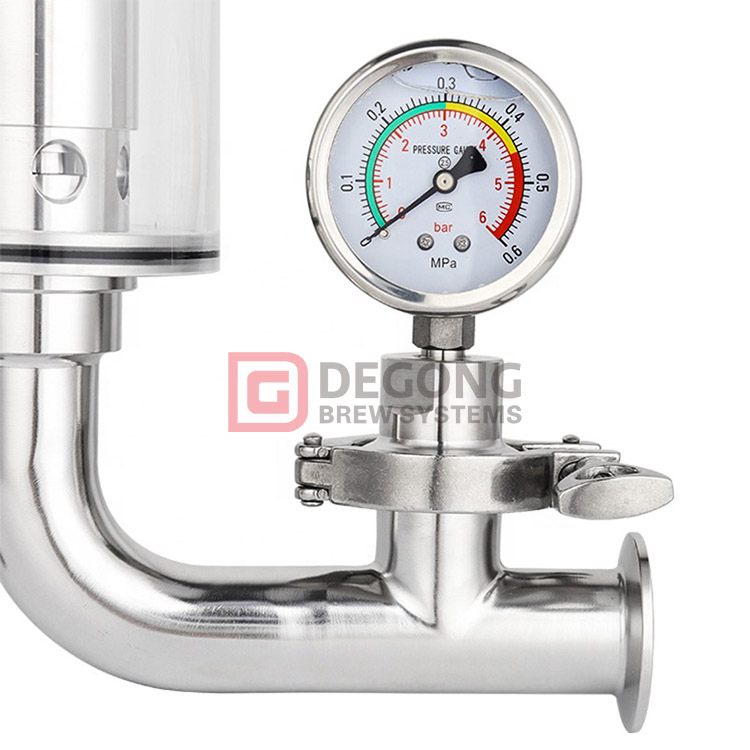

195192193198

Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
