Professional Copper Distillery 1000L Distillation Equipment Commercial Vodka Whiskey Column Still

The inner shell is made of copper, and the outer shell is made of food-grade SUS304. The retort is equipped with a liquid thermometer, pressure gauge, thermometer probe, safety release valve, CIP cleaning ball, and drain valve.
Availability:
Quantity:
  • DG-1000L
  • DEGONG
Product Description

1000L Distillation Equipment


Name 1000L Copper Distillation Equipment Commercial Vodka Whiskey Column Still
Still pot SS304 pot, explosion proof agitator motor, full size glass manway
Gin basket
copper made
Helmet
Copper Aroma helmet
Support base
SS304 made alcohol receiving tank
Column
20 copper made bubble plates
Condenser column
SS304 made,tube and shell type
Application
96%ABV spirits, suit for whisky, brandy, rum, vodka, etc.

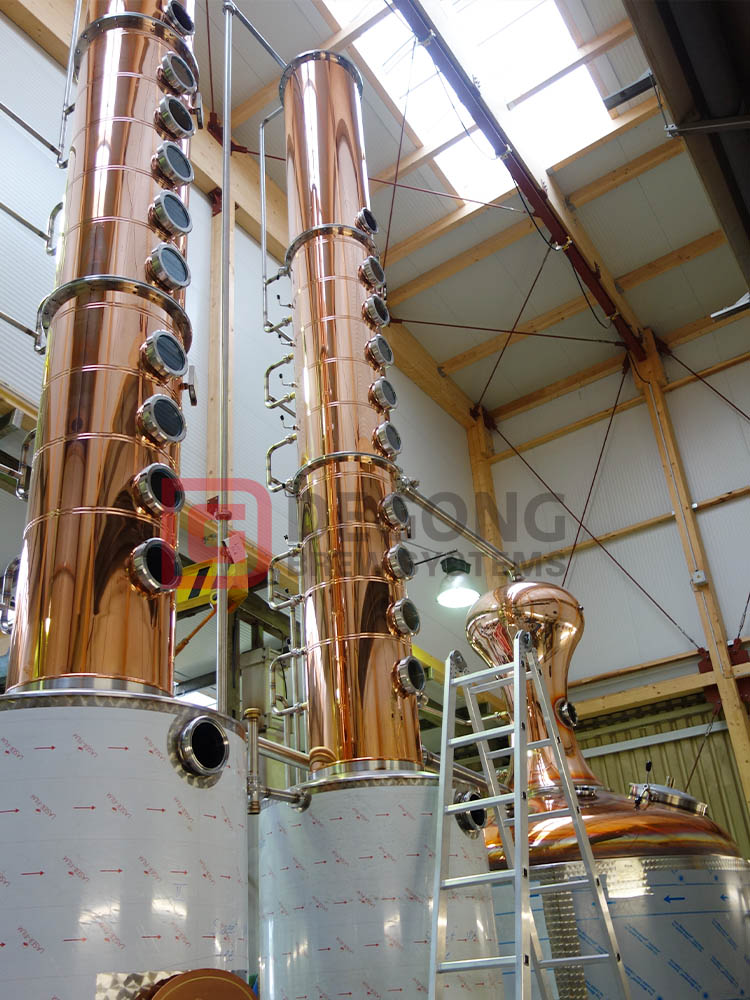

275


Production standards
  • All structures are made of SUS304 food grade stainless steel, all pipes are SUS304

  • All signs and text are in English

  • All gaskets are manufactured in EPDM

  • All tanks will be pressure tested for 48 hours before leaving the factory;

  • All tanks are supplied with data plate including test data and serial number

  • All storage tanks will be tested and inspected in the non-destructive testing room after construction and quality

  • All welds are fully TIG welded with water jet to ensure uniform welds, fully pickled and passivated

  • All jackets will be tested using Hydrostatic Test, Test Pressure: 0.4Mpa (4 Bar) & Working Pressure: 0.2 Mpa (2 Bar)

  • All tanks are mirror polished to Ra 0.4um.

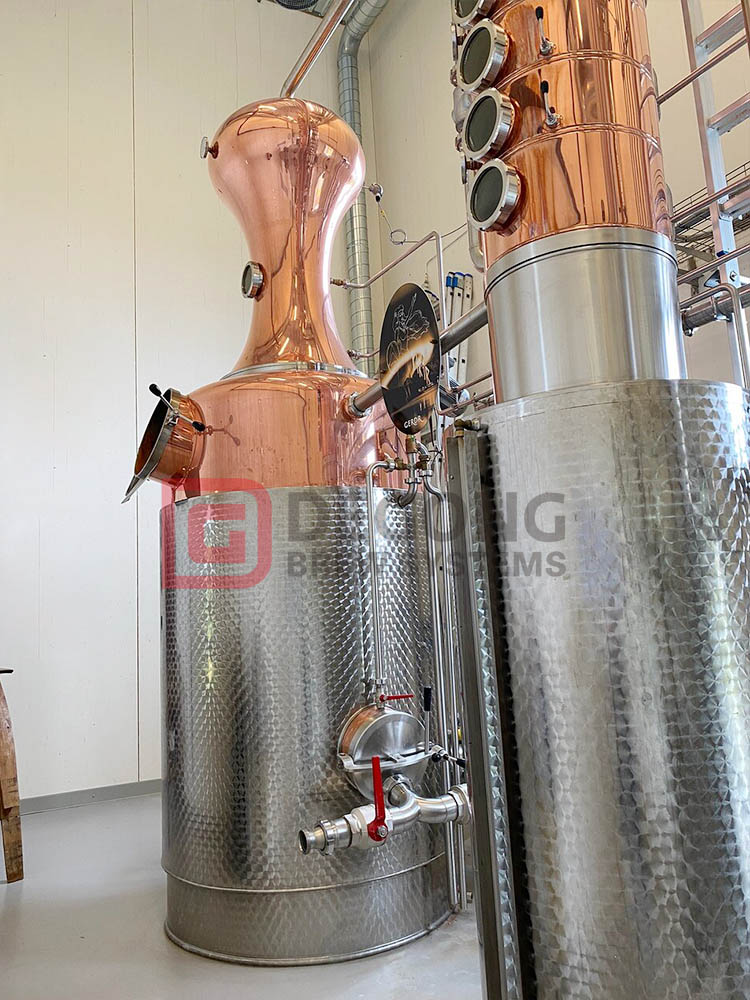

279


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
