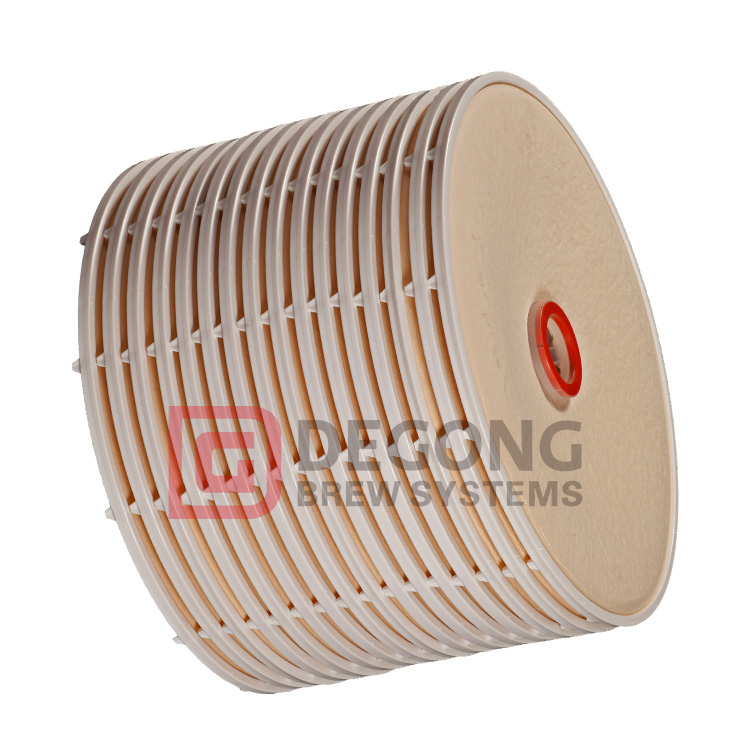

OD 8" 12" 16" Long Life Lens Module

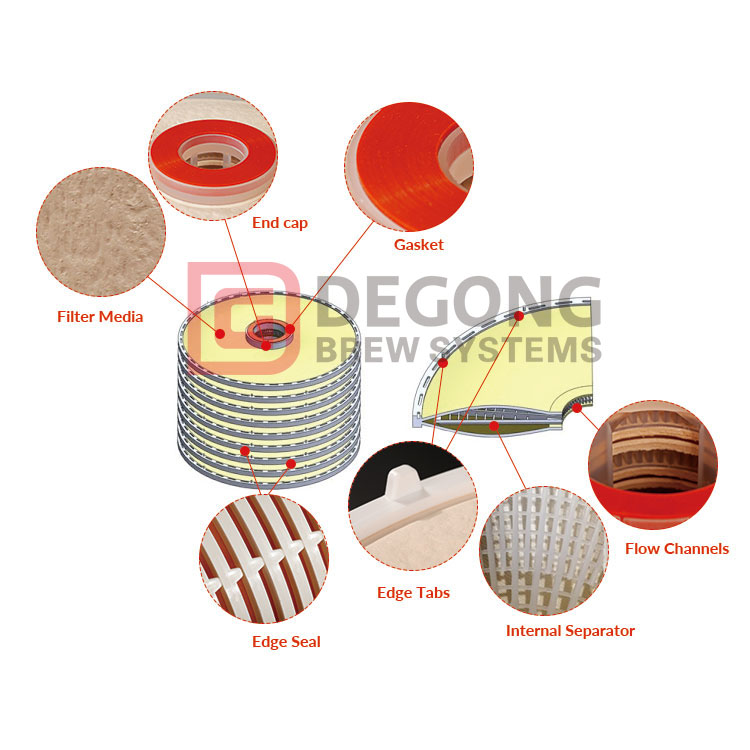

The polypropylene separation disc improves the flow pattern, reduces the overall pressure drop and extends the life of the filter. The heavy-duty non-woven polyester outer scrim improves the resistance to back pressure impact and greatly improves the backwashing ability.
Availability:
Quantity:
  • Long Life Lenticular Filter Modules
  • DEGONG
Product Description

Long Life Lenticular Filter Modules


Product Description

  • Depth filter, used to combine depth filtration and electric adsorption, to effectively remove haze and particles at a micron rating less than the mechanical rating of the module

  • High tensile strength media that can operate efficiently even under elevated operating temperatures or repeated hot water sanitation cycles

  • Compact structure design can achieve the largest filtering surface area

  • Compared with sheet filtration, labor costs are lower

  • Will not be exposed to air pollution after being installed in the enclosure

  • Easy-to-install ink cartridges can be quickly replaced

  • The deep filtration module allows users to easily handle large filtration areas in a disposable assembly

  • High dirt holding capacity of 4 kg/m2

  • The filter has a long service life until clogging can be achieved

  • Maximum working temperature: 80C

  • Maximum pressure difference: 2.4 bar

  • ISO 9001 quality management and ISO 14001 environmental management


Product specifications

OD

(mm)

Disc

Quantity

Filtration Rating

(μm)

Height

(mm)

Filtration Area

(m2)

Seal Ring

Connector

Center Rod ID

(mm)

Center Rod OD

(mm)

8 "(Φ210)

7

0.1-0.4

0.2-0.5

0.4-0.6

1-3

2-5

3-7

130

0.3

Silicone

EPR

Viton

NBR

Platen

50

74.2

8 "(Φ210)

8

150

0.35

12"(Φ300)

7

130

0.8

12 "(Φ300)

9

168

1.0

12 "(Φ300)

12

220

1.35

12"(Φ300)

15

275

1.7

12 "(Φ300)

16

282

1.8

16 "(Φ420)

9

168

2.25

16 "(Φ420)

14

240

3.45

16 "(Φ420)

15

275

3.7

8 "(Φ210)

8

160

0.35

plug-in

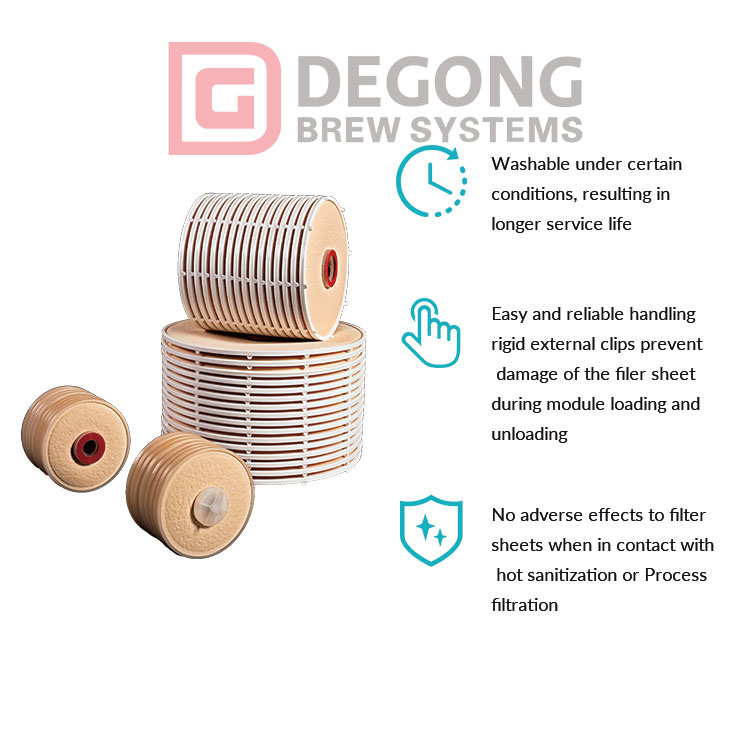

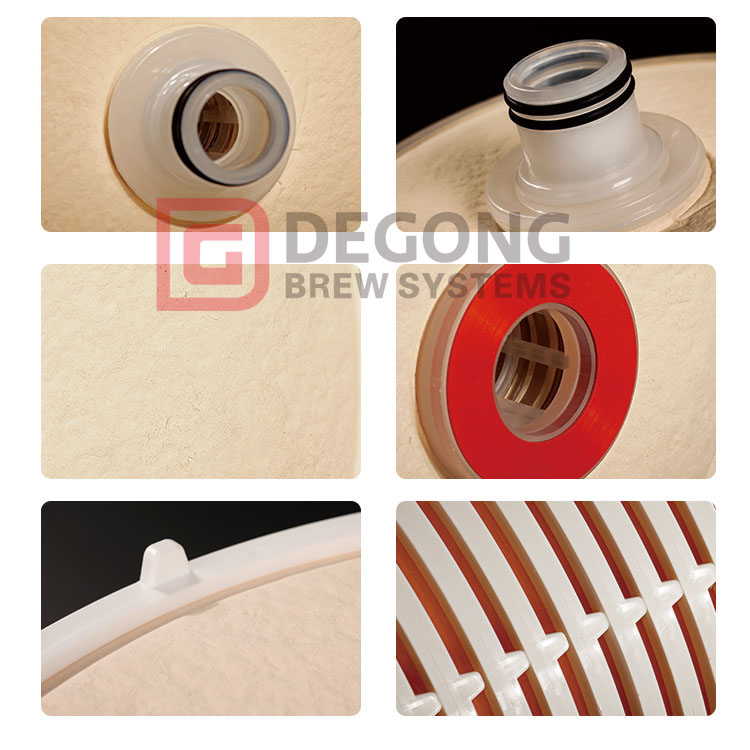

Products Show

182181177175178176


Available options

Size: 8" 12" or 16" diameter

Dual layer: Combine the rough top layer with the finer layer below to perform two-stage filtration in a single pass


Advantage

  • Significant cost savings

  • The possibility of module recoil can extend the life of the filter

  • Class H filter media can improve filtration capacity

  • The module can be installed in a conventional lens module housing with DOE adapter type

  • For the backwash module, no additional stabilizing parts are required
