DG-300L
DEGONG

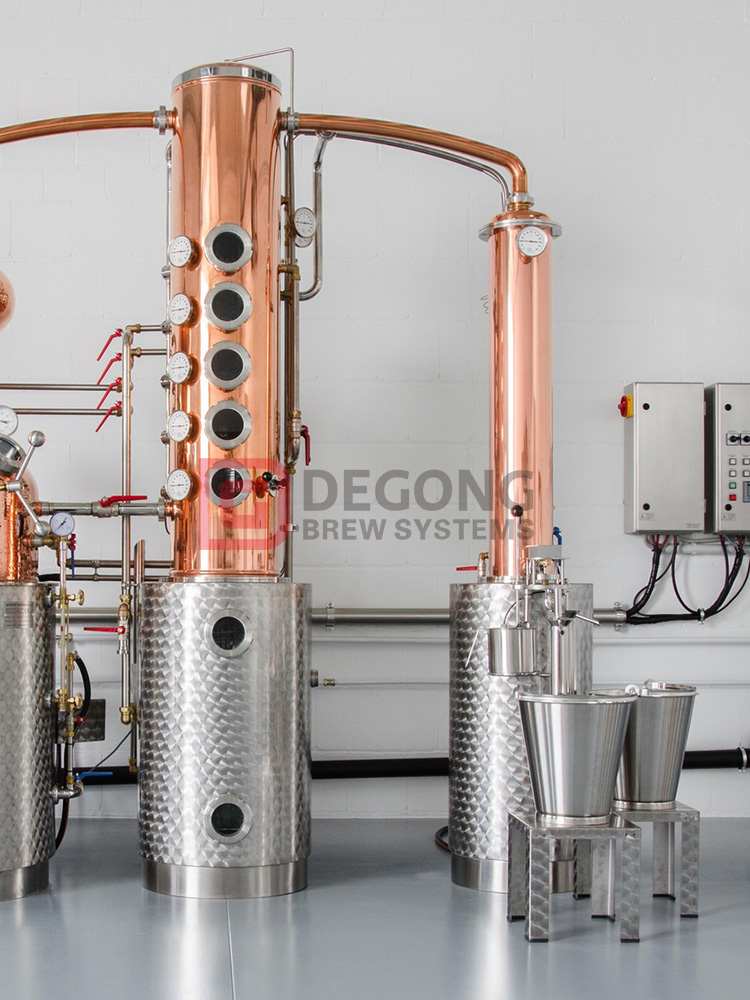

300L Copper Alcohol Distillery
Whether your budget for your craft distillery equipment is 5,000USD or 500,000USD we can set you up with a complete distilling solution. All of our copper vessels are manufactured with high quality TP2 materials, are of the best quality of copper, below is a comparison of our copper still is where different from others.
Copper Head Welding Process
The quick-installation and copper welding methods are one-time over-welding to ensure that the parts in contact with the alcohol are made of copper, which is beautiful and generous; the sealing performance is due to the pressure resistance of the sealing ring, without the influence of welding parts, thus improving the service life of the equipment.
Manhole Craft
The manhole is made of red copper, and it is welded with the stainless steel flange to ensure that the parts in contact with the alcohol are made of copper, with strong sealing performance and long service life.
Distillery Tower Process
The parts in contact with the alcohol are made of red copper, and the design process of tumbling is adopted.
| Product Name | Multifunctional 300L Copper Alcohol Distillery Equipment Small Scale Distilling System for Sale |
| Working Capacity | 300 liter (Available to make 50L - 5000L) |
| Weight | 350kg |
| Heating style | Electric heating |
| Voltage(V) | 220V/50HZ / 110V/60HZ / 380V/60HZ or customized |
| Materials | SS304 / Red copper |
| Components | Distillation pot, onion head, column, dephlegmator, condenser, mouth of wine, Storage box support, control box, heating elements. |
Warranty | Main part for 2 years such as motor, pump. |
Brand | DEGONG |
We can customize the equipment according to your requirements. | |
Name | Explain |
Distillation pot | 1. Working Volume: 300L 2.Style: three layer design, Heating with electric heating rod, including polyurethane insulation layer. 3. Material: TP2 Red Copper & SUS304 stainless steel (copper inner tank , stainless steel heating layer and fish scale coating) 4.Configuration: Full sight glass manhole, Safety valve, Pressure gauge, Thermometer, PT100 temperature sensor, Ball valve, Drain valve, Cleaning ball, Check valve, liquid level meter, motor mixing, lighting, etc 5.Thickness: The thickness of copper liner is 3mm, the thickness of steam jacket is 2mm, and the outer casing is 1.5mm 6. Heating power: 30kW 380V / 50Hz / 3N ( Two 15kw ) |
Onion head | 1. Material: TP2 Red Copper 2. Thickness:3mm 3. Configuration: Sight glass, Cleaning ball |
Column | 1.Material:TP2 Red Copper 2.Thickness:3mm(shell wall thickness) 3. Configuration: It is equipped with red copper clapboard and copper bubble cover, Each layer is equipped with cleaning balls; 4 layer clapboard, 5 Sight glass, the bottom layer is the reflux layer. |
Dephlegmator | 1.Material: TP2 Red Copper 2. Style: Columnwise dephlegmator (Shell and tube) 3.Thickness:3mm(shell wall thickness) 4. Configuration: Thermometer and crown cap Capping |
Gin Basket (optional) | 1. Material: Red Copper 2. Configuration: Sight glass, crown cap, etc 3. Built in: clapboard 4. Thickness: shell thickness: 3mm ． |
Condenser | 1.Material: Red Copper 2. Style: Columnwise dephlegmator (Shell and tube), Inside are many stainless steel tubes 3.Thickness:3mm(shell wall thickness) 4. Configuration: Thermometer and crown cap Capping |
Mouth of wine | 1. Material: SUS304 stainless steel & glass cover 2. Style: simple type, easy to observe the wine situation |
Storage box support | 1. Material: SUS304 stainless steel(fish scale plate is used for coaming) 2. Style: new cabinet type bracket 3. Function: used to support tower and condenser |
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
