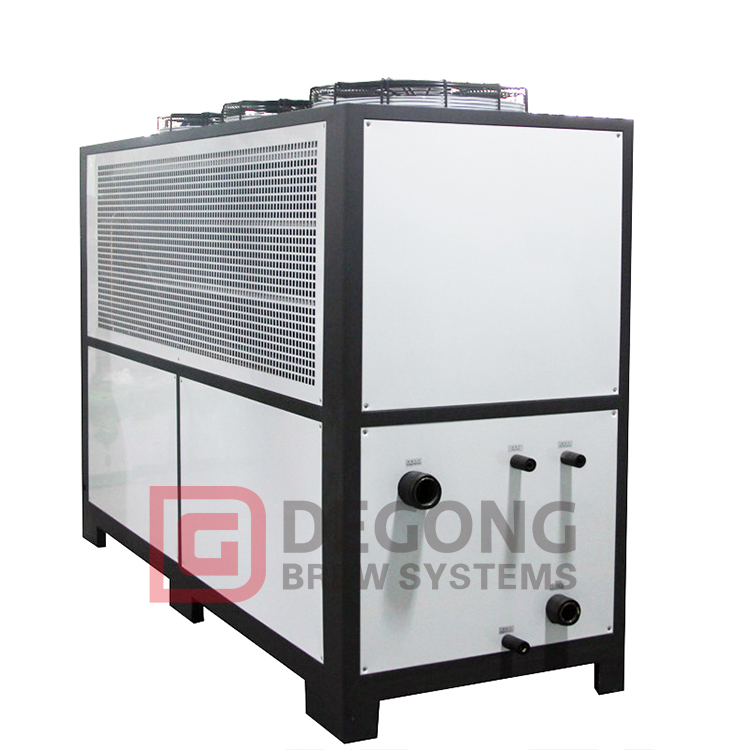

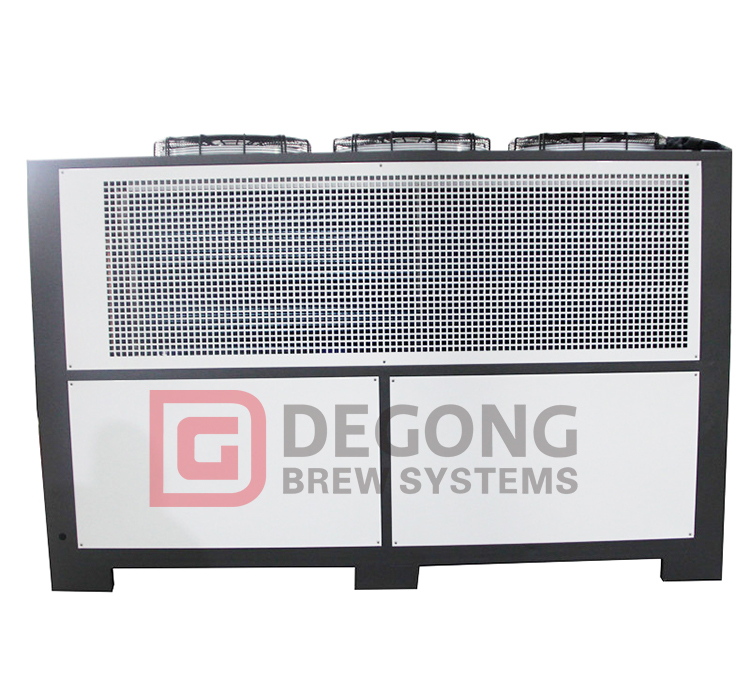

30HP Water Cooled Chillers
DEGONG
Features
The wide range from 2.5KW to 120kw is suitable for different applications.
Device with V-shaped heat exchanger: The panel, frame and base are made of galvanized steel and coated with polyester powder coating to ensure complete resistance to atmospheric factors.
Three-phase scroll compressor with built-in thermal overload cut-off device to ensure safe operation of the unit
The evaporator has a built-in high-efficiency tube-in-tube heat exchanger, and the factory uses flexible closed-cell materials for heat insulation.
Energy saving, green and environmental protection
Product parameter
Model | MACRW | 500ZB/S | ||
Cooling capacity | KW | 125 | ||
Rated input power | kW | 45 | ||
Rated input current | dB(A) | 81.3 | ||
Power supply | V/PH/Hz | 380/3/50 | ||
Water inlet/outlet | inch | 2" | ||
Water flow volume | m3/h | 27.5 | ||
Working temperature | ℃ | 5~45 | ||
Compressor protection | 3 minutes delay | |||
Defrost mode | Automatic | |||
Refrigerant | R410a | |||
Compressor | Scroll |
Features
Wide capacity range
The cooling capacity of Meikang heat pump chillers ranges from 2.5KW to 125KW, and the minimum set temperature can be as low as 7 degrees, which is suitable for different market needs, whether it is domestic or commercial. |
Multiple protection
The unit is designed with electronic water flow protection, compressor discharge temperature protection, compressor high and low pressure protection, compressor overcurrent protection, power supply lack of phase, and out of phase protection. |
Antifreeze technology
The unit is designed with multi-level antifreeze protection control function. When the outdoor environment temperature is lower than the set function, the unit will automatically cooperate with the antifreeze protection function to ensure the safety of the unit. |
Power-off memory function
Automatically record the working mode before the failure, and automatically restore the recorded working mode after the power is off. Automatically adjust the working status without manual operation. |
Electronic expansion valve
The 500-level linear electronic expansion valve has throttling control, and the refrigerant flow control range is adjustable. |
Modular combination design
This design is suitable for commercial, industrial, agricultural and places requiring refrigeration. Each group of central controller can control 16 units. |
24-hour timer function
Can be set regularly. The ON/OFF time of the unit can be set according to the actual situation of the user. |
Automatic constant temperature maintenance.
Semi-automatic PET bottle blowing machine PET bottle making machine is suitable for producing various shapes of PET plastic containers and bottles. |
Our vision
Do our best to solve every problem for our customers.
We warmly welcome any of your business.If you want to know more detailed information about our equipment, please contact us. |
