Liquid Emulsification Homogenization Tank Electric Steam Heating Stainless Steel Mixing Tank

Vacuum homogenizer, the most advanced homogenizer design in Germany, especially suitable for medicine, lotion, ointment, snow cream, facial mask, cream, lotion essence, oil-water emulsion, emulsified asphalt, resin emulsion, wax emulsion.
Availability:
Quantity:
  • Electric Steam Heating Mixing Tank

  • DEGONG

Product Description

Electric Steam Heating Mixing Tank


Product Details

  • Main pot of vacuum emulsifier: the main pot is hydraulically lifted. Three-layer stainless steel structure (ss304 ss316), which can be poured out manually. Equipped with feed port, vacuum gauge, vacuum valve, sight glass, air filter, perfume funnel, etc.

  • Lifting emulsifier series, including emulsification pot, operating platform, oil-water pot, oil-water pot and controller; emulsification pot device includes emulsification pot, emulsification pot rack and emulsification pot cover fixing plate, emulsification pot is set in the stirring mechanism, dumping, The controlled terminals of the cooling cycle mechanism, vacuum mechanism and emulsification pot lid lifting mechanism, stirring, dumping, cooling cycle machine, vacuum mechanism and emulsification pot lid lifting mechanism are connected to the output end of the controller.

  • Bottom homogenizer: Siemens motor frequency conversion 0-3000rpm, motor-oriented drive mode provides greater torque for the material homogenizer process and saves power. Stable operation, long service life, unique three-tank flat bottom valve

  • Variable mixing speed: 0-63RPM. Clockwise and counterclockwise mixed frequency conversion speed regulation

  • Modular design, convenient for installation, transfer and maintenance of equipment

  • The design of supporting adjusting wheel is convenient for horizontal adjustment. Extend equipment life

  • The PLC controller makes the machine easy to operate

  • All key components are imported from famous brand suppliers to ensure worry-free quality

  • Fast fittings and pipes. Easy to install the machine and cleaning system

  • Unique blade design, easy to clean process

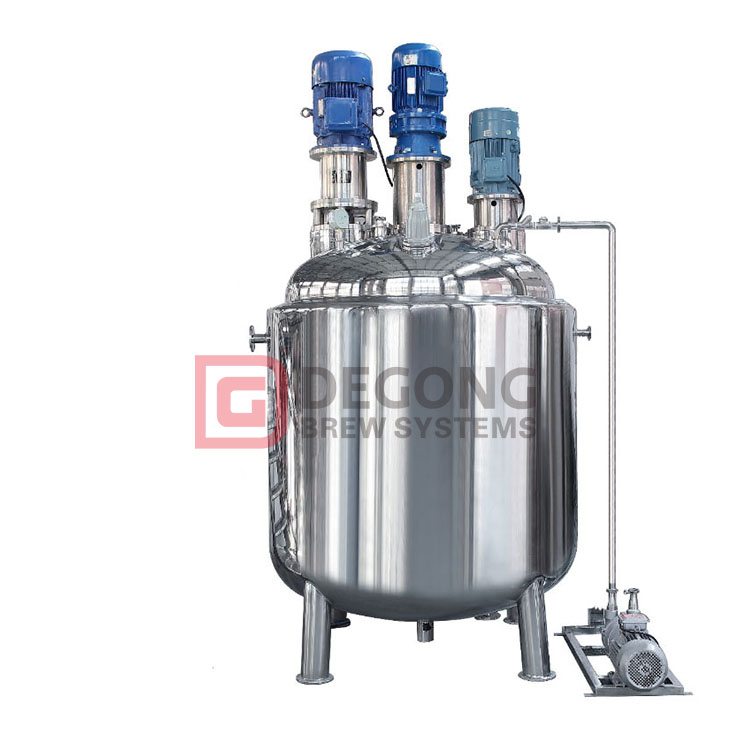

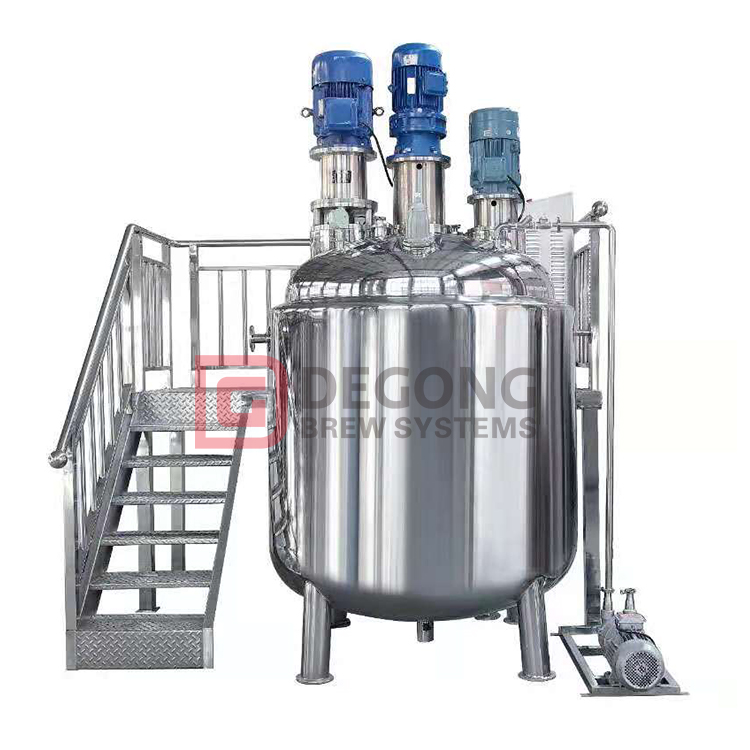

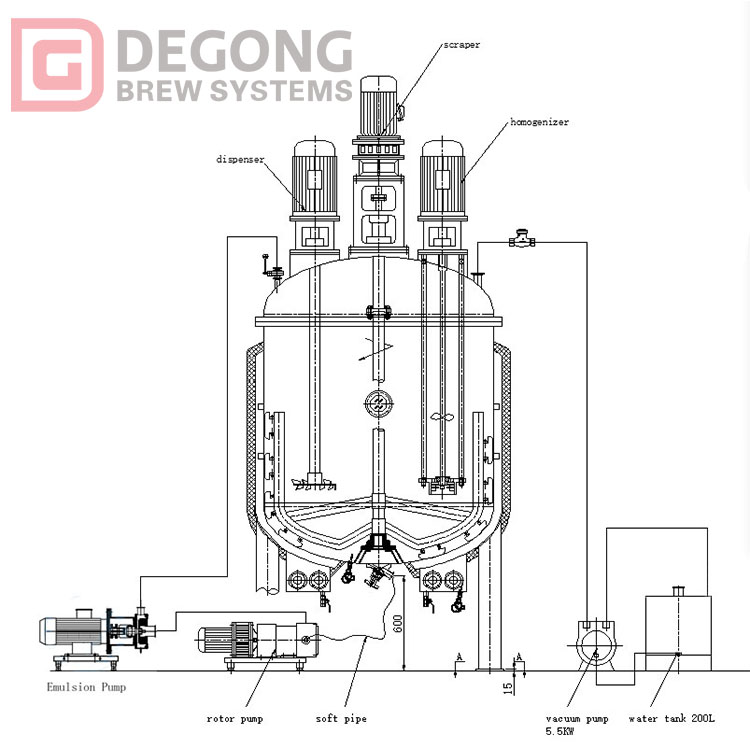

Products Show

878889


Advantage

  • Easy to clean, convenient and economical

  • Small footprint without losing modern beauty


Profile
Single layer tank
Double layer tank
Three layer tank
Tank material
SS304 or SS316L
Volume
up to 20T


Pressure
Vacuum-1Mpa
Structure
one layer
Inner layer+jacket
inner layer+jacket+insulation
Cooling method
No
ice water /cooling water
ice water /cooling water
heating method
NO
electric/steam heating
electric/steam heating
Agitator type
 per customer requirement
speed  0--63 rpm
PARTS DETAILS
open manhole / Pressure manhole
Various types of CIP cleaners
Sterile respirator
Inlet and Outlet sanitary valve
Inlet and Outlet sanitary valve
Paddle blender
According to customer requirements


Technical parameter

capacity
Homogenizer motor
Agitator motor
Size MM
(D*H*H)
Limit vacuum (mpa)
kw
RPM
kw
RPM
1000L
5.5
0--3000
5
0-63
Φ1000x1200*2200
-0.09
2000L
7.5
0--3000
5
0-63
Φ1200x1500*2500
-0.09
3000L
9
0--3000
7
0-63
Φ1600x1500*2750
-0.09
4000L
11
0--3000
7
0-63
Φ1600x1850*2950
-0.09
5000L
14
0--3000
11
0-63
Φ1800x2000*3300
-0.09
6000L
14
0--3000
11
0-63
Φ1800x2400*3750
-0.09
7000L
18.5
0--3000
11
0-63
Φ4200*4800*5400
-0.09
Up to 20000






Workshop show

807978


We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
