Isobaric Cylindrical-conical fermentation tanks cooling jacket fermenters Available 3bbl 5bbl 7bbl 10bbl 15bbl 20bbl 30bbl

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
Size:
Material:
Cooling jacket:
Availability:
Quantity:
  • DGET-20BBL

  • DEGONG

  • 8438400000

Product Description
Isobaric fermentation tanks double cooling zone

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

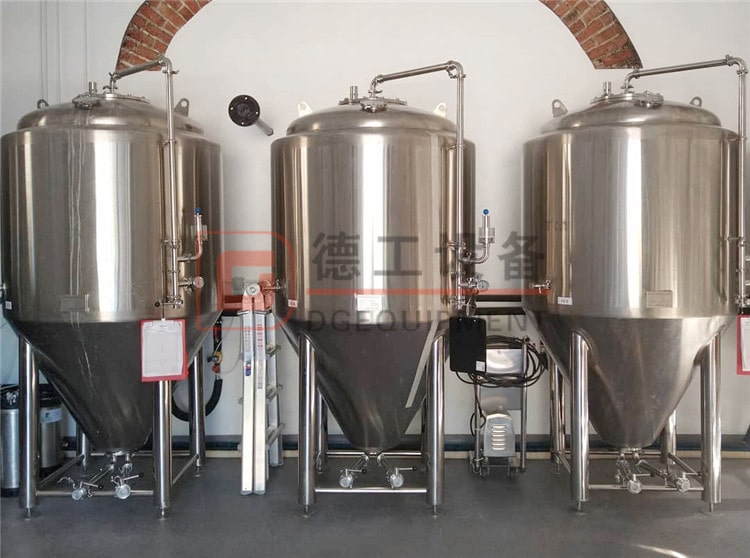

FV-min

Top or side manhole on the fermentation tanks


We are pleased to begin offering in-stock fermenters and brite tanks to breweries that need additional cellaring capacity.


We fabricate our vessels to the highest level of craftsmanship and build quality that will compare favorably to anything on the professional brewing equipment market.


All of our vessels are pressure tested, 100% sanitary welded, jacketed and insulated. 5, 7, and 10 BBL unitank fermenters are ready to ship from our warehouse.


 glycol line

Chiller model


Cylindrical-conical fermentation tanks

Gross volume: 1300L Available volume: 1000L

Cooling means: jacket cooling

Coolant medium: glycol

Inner and outer of the tank are all made of SUS304 stainless steel, the internal side polished, the external is polished by auto-polishing machine.

Stainless steel dimple plate glycol cooling jacket

Internal tank is 3mm

The external cladding is 2mm.

On the bottom there is a drain, on the top there is an exhaust and CIP port, coolant in and coolant out pipe.

The tank body is equipped with manway, sample valve, temperature sensor, spray pipe, CIP sprayball, pressure gauge and butterfly valves etc.

Quantity: Determined by number of tanks



 stacked FV-min

Stacked fermenters can save your floor space


fermentation 00-min

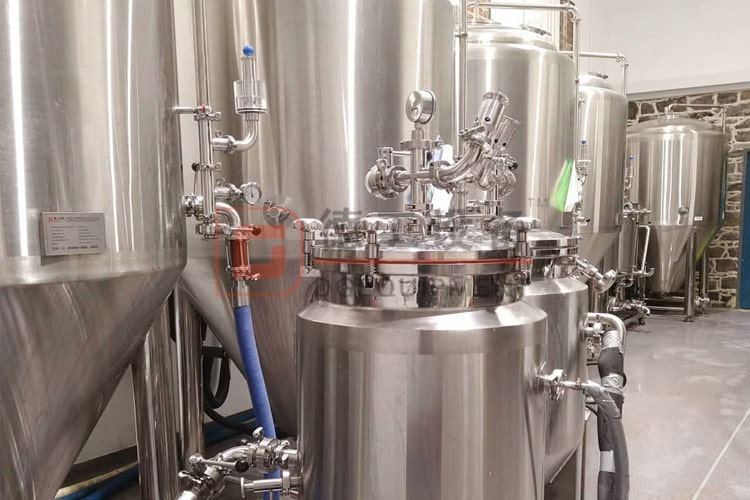

Small unitanks with quality stainless steel


Serving/Bright/Conditioning Tanks

Serving tank (Jacketed BBT version)

Gross volume: 1200L Available volume: 1000L

Inner and outer hull are all made of SUS304 stainless steel, polished

The thickness of the internal stainless steel hull is 3mm

The thickness of the external plate is 2mm

The beer in the tank body is cooled off by means of stainless steel dimple plate

On the bottom there is an entrance; on the top there is an exhaust and CIP port, coolant in-out pipe.

The accessories of the dispensing tank are spray ball, manway, sample cock, glass level tube, temperature sensor, spray pipe, pressure gauge and butterfly valves etc.


清酒正反-min

Bright beer tanks for maturing beer

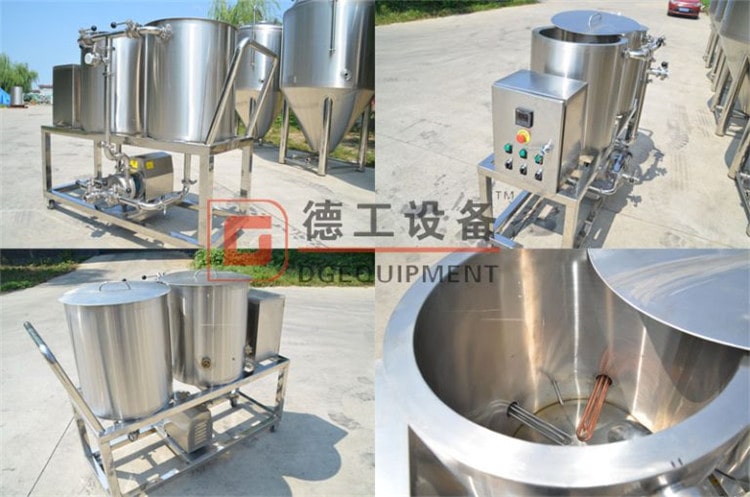

CIP-min

Portable CIP/Beer Transfer Pump Steel cart


Brewing tank needs to be cleaned after per batch. This portable washing cart with wheels can clean the brewing system tank,which includ acid tank, alkali tank and cleaning pump


Contact Alice today

Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.


Alice downroad
