Industry Storage Tanks | Stainless Steel Tanks | DEGONG | Professional Manufacturer

Vertical cylindrical container with 20° top and 20° bottom. Top and housing are made of 3mm thick 316L stainless steel, bottom cone is 4mm thick stainless steel with hygienic joint radius, 4 x tubular 8" sch 10 legs and adjustable feet.
Availability:
Quantity:
  • DG-10000L
  • DEGONG
Product Description

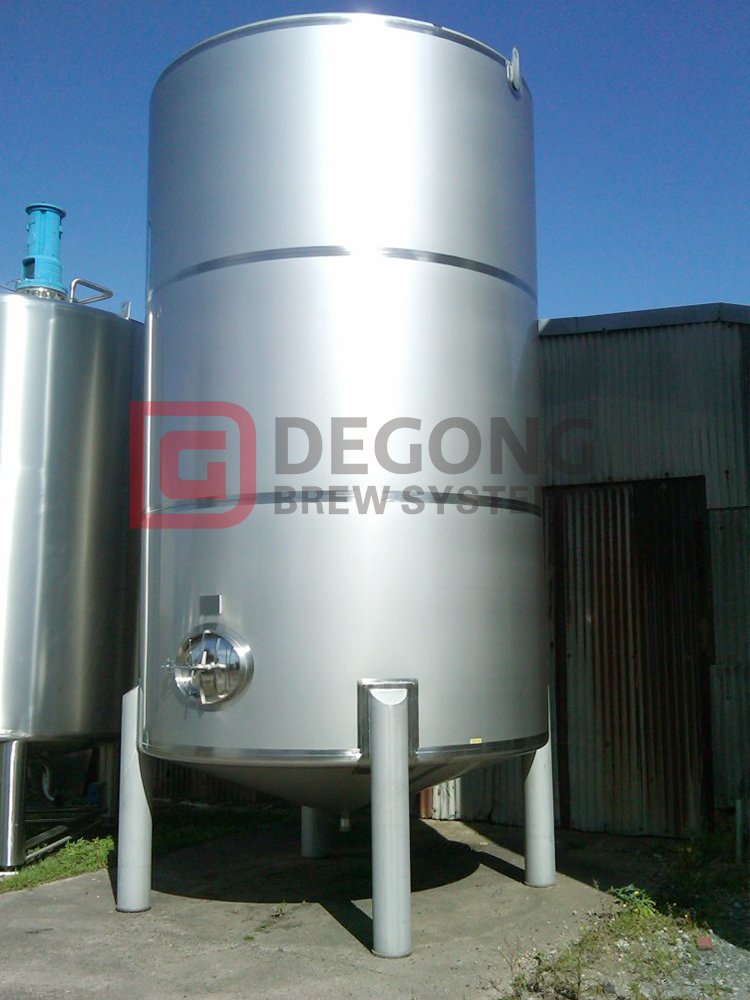

10000L Industry Storage Tanks


  • Connections:

      2 x 3" male connections

      1 x 3” RJT Female outlet

      1 x hygienic, Side Manway.

      2 x lifting lugs

  • Material: Stainless steel 316 L, with BS.1449 type 2b Overall surface.

      (Non-Contact Parts from 304L.)

  • Surface Finish: Internal Welds Ground Flush and Polished to 180 Grit x 50mm Wide Strip.

  • External: Cleaned by Band polishing a 50mm wide strip, (Weld cap left Intact)

  • Weld seams: All ground and polished

  • Max Gravity 1.0


70


Introduce
  • Material of Storage Tanks: SS304 or SS316L.

  • The Storage Tanks can be jacketed for cooling or heating. The heating method can be electric or heating.

  • DEGONG Storage Tanks can be produced according to customer requirements. Widely used in dairy, pharmaceutical, chemical and food processing industries.

  • According to the storage capacity, Storage Tanks are divided into 50-30000L tanks. If the capacity exceeds 10000L, we recommend outdoor Storage Tanks.


Name
Industry storage tank
Material
SUS304, 316L stainless steel
Volume
50L-30000L
Design Pressure
-0.1Mpa~2.0Mpa
Thinkness
3mm-20mm
Applicable range
Used as liquid storage tank, temporary storage tank and water storage tank etc.
Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure features
Made of single-layer or double layer stainless steel structure, also can be as your require;
Materials are all sanitary stainless steel or carbon steel( based on your demand)
Humanized structure design and easy to operate.


71


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
