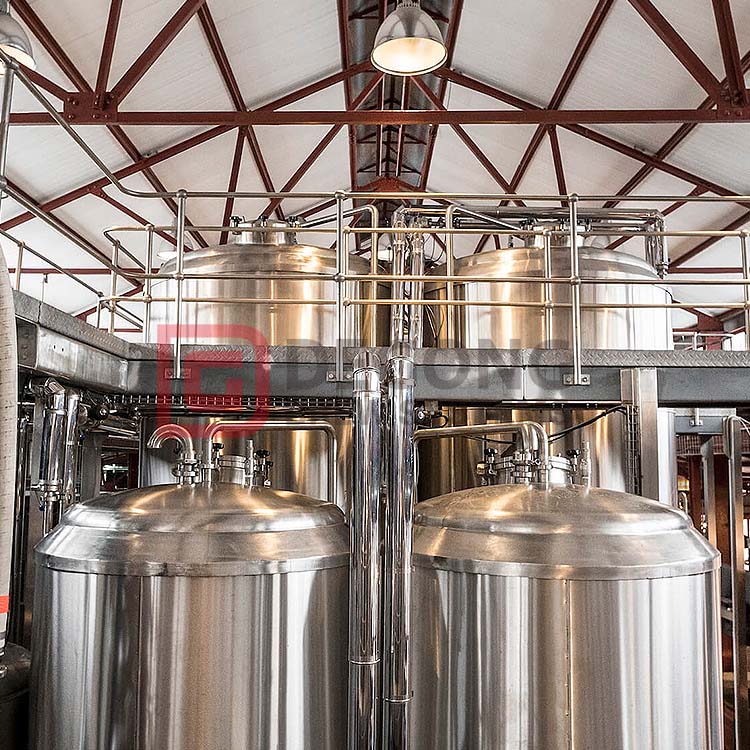

|Combination Method||Mash tun, Lauter tun, Boiling Kettle, whirlpool tank|
|Application||Restaurants, bars, hotels, brewery|
|Heating Way||Steam heating|
|Lauter Tun Diameter||3400mm|
|Lauter Tun Height||4800mm|
|Mash Tun/Boiling Kettle/Whirlpool Tank Diameter||2600mm|
|Mash Tun/Boiling Kettle/Whirlpool Tank Height||5000mm|
|Degree of automation||Fully automatic|

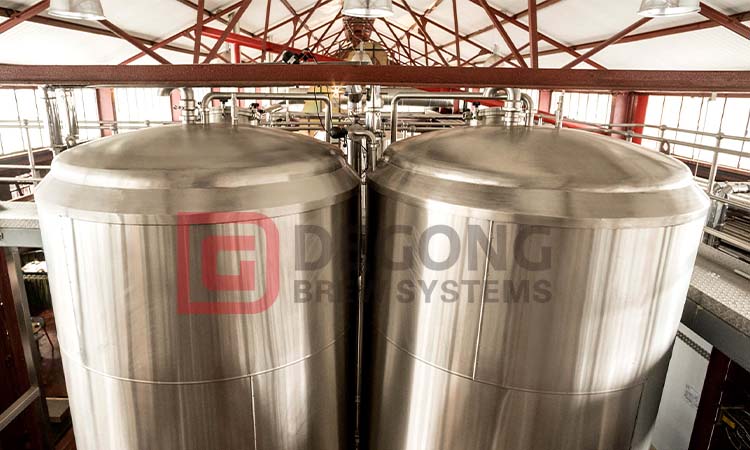

10000L Mash tun
10000L Mash tun is a vessel used in the mashing process to convert the starches in crushed grains into sugars for fermentation. Mash tuns are insulated to maintain a constant temperature. The mash tun can be single-function or can also have a false bottom and spigot so that the sparging process can be done in the same vessel. Steam jacket design will allow The systems are designed to do both decoction mashing and infusion mashing. The mashing tun/kettle is made out of stainless steel or copper.
10000L Lauter tun
The 10000L lauter tun is used for filtering and clarifying the sugar liquid (called wort) out of the heated water-malt mixture (called mash) that comes from the mashing tun.
The 10000L lauter tun typically has the same capacity as the cooking tun and can also be made out of stainless steel or copper cladding. It has a design with a false bottom in stainless steel v-wire and a raking gear that has the function of an agitator, a rake and a spent gain remover. This is a very unique and helpful tool because after filtering the spent grains will be removed from the lauter tun, saving a lot of time and energy of the brewmaster. Furthermore the lauter tun can be equipped with additional accessories such as sight glasses, CIP jets for simplifying the lautering.
10000L Boiling Kettle
After lautering, the beer wort is boiled with hops (and other flavourings if used) in a large tank known as a brew kettle. The boiling process is where chemical and technical reactions take place, including sterilization of the wort to remove unwanted bacteria, releasing of hop flavours, bitterness and aroma compounds through isomerization, stopping of enzymatic processes, precipitation of proteins, and concentration of the wort.
10000L Whirlpool Tank
At the end of the boil, the hopped wort settles to clarify in a vessel called a "whirlpool" where there is a tangential inlet of wort. Thus, a vortex is formed when the wort is infused along the arc inside surface, so that the more solid particles in the wort are separated out. Whirlpool can happen in the kettle because there is no obstacle inside the kettle.

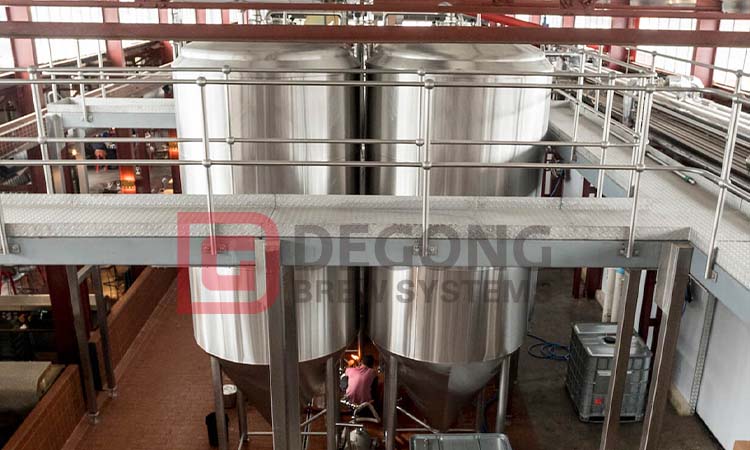

|Features of Fermentation Tanks|
Made of stainless food steel DIN 1.4301 (AISI 304)
Standardized dimensions and equipment, or according to individual customer requirements
Classic design, PUR insulation, double stainless steel jacket, water (or glycol) cooling duplicators
Accurate temperature control and reliable CIP are requirements to ensure a quality finished product
Fermenters offered with side rotating racking arms or standpipe design plus hop ports.
An extra tri-clamp fitting can be added for a carbonation stone if desired.
Cone angles can be changed to suit customer requirements.
Adjustable pressure valve for controlled fermentation – Overpressure setting mechanism with a glycerine manometer
PUR insulation – polyurethane insulation with thickness according to the size of the tank and the target environment
Guaranteed inner surface roughness : Ra < 0.8 μm or less (grinded surfaces) / Ra < 0.5 μm or less (polished surfaces), according to customer´s requirement
Service door (manhole) on the top cone or on cylinder part, according to customer requirements
Pure-beverage output armature with a butterfly valve for pure beverage (beer, wine, cider) output
Thermometer socket – welded socket for inserting of thermosensor or thermometer
Manometer – It is included in the set of the adjustable pressure valve. Made of stainless steel, with glycerine inside.
Filling level indicator – Sanitizable glass or plastic pipe for visualisation height level of the beverage product in the tank
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
