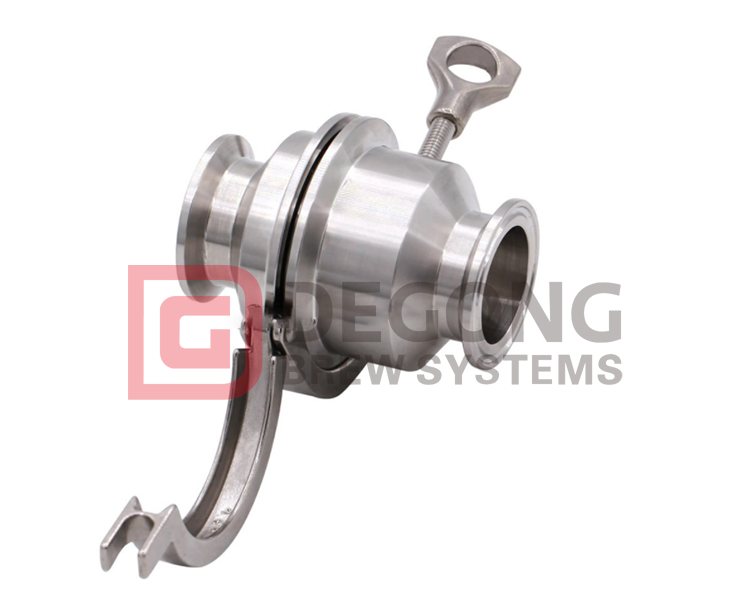

Hygienic 1.5-inch Three-clamp Check Valve-one-way Flow Stainless Steel 304 FKM Gasket

Check valve refers to a valve whose opening and closing parts are circular discs and rely on its own weight and medium pressure to generate actions to block the back flow of the medium. When the inlet pressure is greater than the sum of the weight of the disc and its flow resistance, the valve is opened.
Availability:
Quantity:
  • 1.5-4 inch
  • DEGONG
Product Description
DESCRIPTION:
Tube OD: 1-1/2 Inch, Ferrule Size: 50.5MM, Fits 1.5 Inch Tri-clamp
* Material: SAE 304 Stainless Steel,Max Temperature:130°C,Max Pressure: 10 Bar (145 PSI)
*  This one-way check valve allows flow in only one direction. When flow stops the valve automatically closes to stop materials from back-flowing

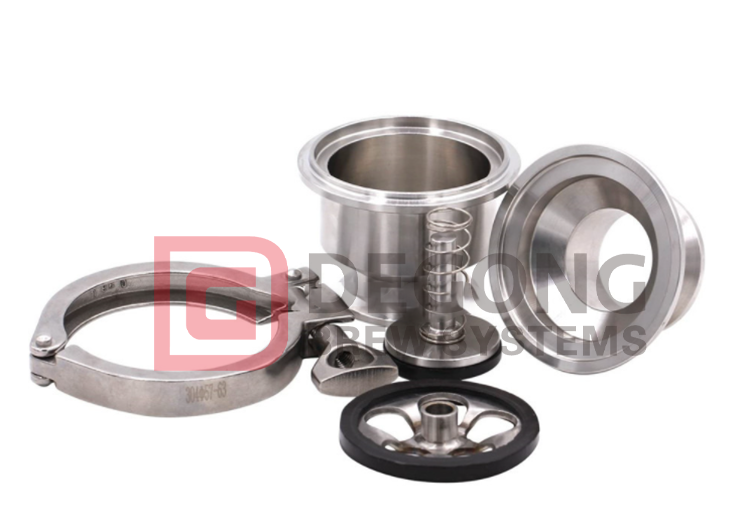

*Adjustable pressure via spring replacement (1 spring included)- Quickly comes apart for easy cleaning

* The pressure required to open the valve and be adjust by swapping out the inner spring (only one spring included) or rotating the spring plate


2930

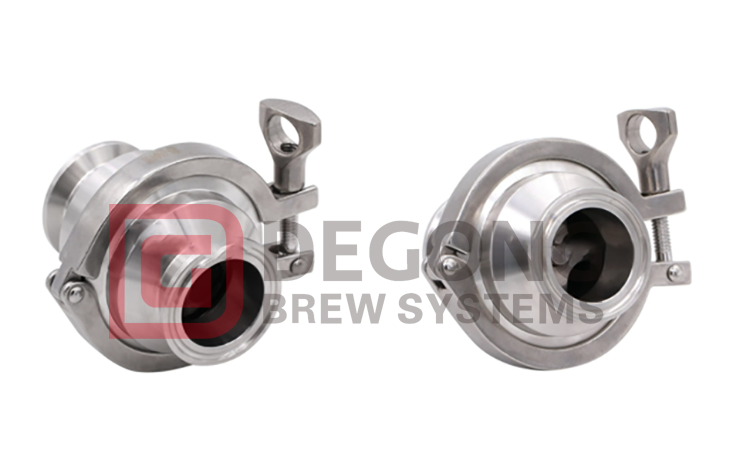

  • Size: 1.5" three-clamp check valve

  • 1.5 inch sanitary check valve: Sanitary check valve, also known as "check valve", is designed for process pipeline installation to prevent backflow. The sanitary check valve series are spring check valves with different connecting ends. 100% test/100% inspection. 100% pressure hydraulic test reliability. Wet the surface and polish it.

  • Available drives: double-acting, air spring, electric.


32

Structure classification:

1. Lift check valves are divided into two types: vertical and horizontal.

2. The swing check valve is divided into three types: single valve, double valve and multi valve.

3. The butterfly check valve is a straight-through type.

The above check valves can be divided into four types in connection form: threaded connection, flange connection, welding connection and wafer connection.


31


Degong products are sold all over the world. If you are interested in our  check valves, please contact us!
