High Quality Water-cooled Chiller Industrial Chiller CW3000 CW5000 CW5200

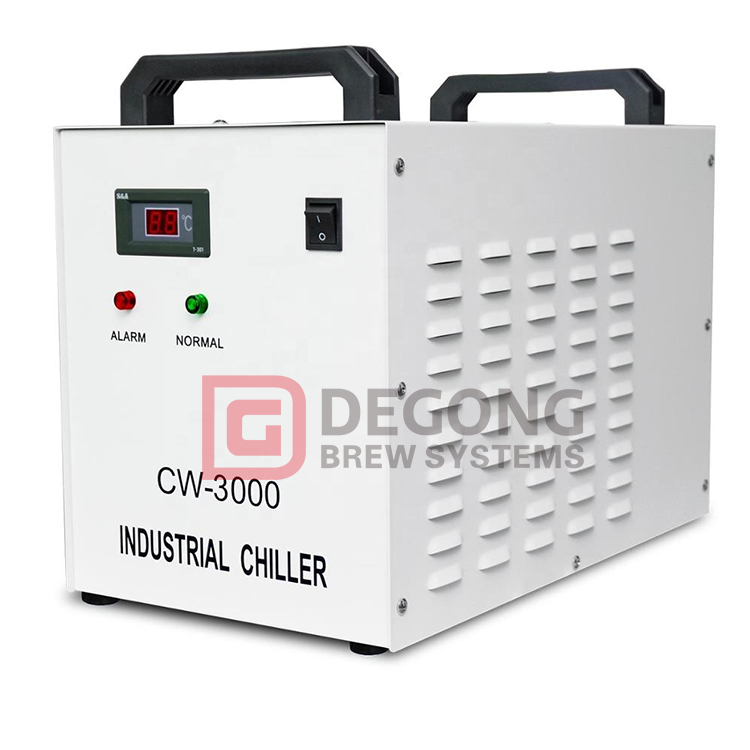

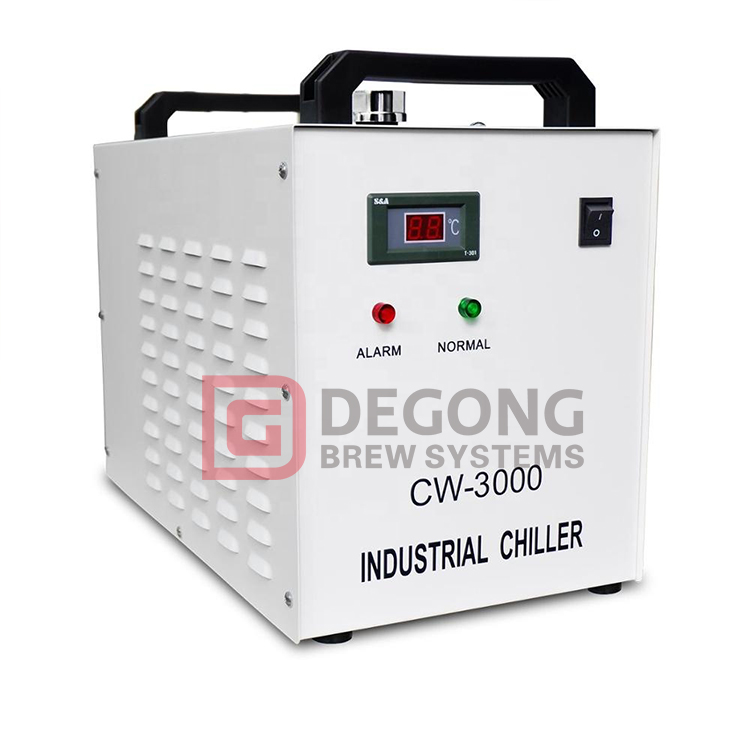

CW3000 Water Cooled Chillers

CW-3000 series is a professional cooler designed with reference to the international advanced pyrolysis cooling system, suitable for machinery required by small water-cooled cooling devices. Industrial chillers have patent certificates, CE and RoHS certificates. It is mainly sold in Europe, South America, Asia and other markets. Economical cooling equipment, easy to install and operate, compact structure and easy to move.

Application

Products are mainly used in high-power laser industry, water-cooled high-speed spindle precision optical machinery, experimental instruments and other professional fields. They are widely used in clothing, footwear, advertising, printing, marking, molds, glasses, chemicals, toys and many other industries.

Features

• Water coolers are divided into pyrolysis coolers and cooling coolers to meet the needs of different industries.

• The design is reasonable, which can meet the long-term use in the high-polluting environment.

• Using high-performance components, high reliability, low energy consumption and high environmental protection.

• Small size, light weight, convenient installation, use and maintenance. Water coolers are divided into pyrolysis coolers and cooling coolers to meet the needs of different industries.

• It has a complete alarm function and can be used for real-time monitoring of the status.

Products Show

Installation steps

• Open the package and check whether the machine is in good condition and whether all necessary accessories are complete.

• Open the mouth screw on the top of the machine and add cooling water (please do not power on the machine without water).

• According to the system conditions, connect the inlet and outlet pipes.

• Connect the power cord and turn on the power switch (note: do not let water overflow).

• Check the water level of the radiator again (keep the distance between the water level and the mouth 80-150mm).

Precautions

• Coolers that have not been used for a long time or are in transit must be drained of cooling water continuously.

• It is strictly forbidden to block the running cooler without water supply.

• Keep a distance of at least 30cm between the air outlet at the rear of the cooler and the obstacle, and keep a distance of at least 10cm between the obstacle and the air inlet on both sides.

• The cooler should be placed in a well-ventilated, dry environment and away from heat sources.

• In order to ensure a good heat dissipation effect, please open the cover to clean up the dirt after long-term use. For working in cold northern areas, it is best to use non-corrosive ones.

• In order to protect the laser tube, the cooling fan of the cooler will stop working when the water temperature is low (about 10°C), and will restart when the water temperature rises (about 20°C).

Packaging and delivery

In order to better ensure the safety of your goods, we will provide professional, environmentally friendly, convenient and efficient packaging services.
