330*430mm
DEGONG

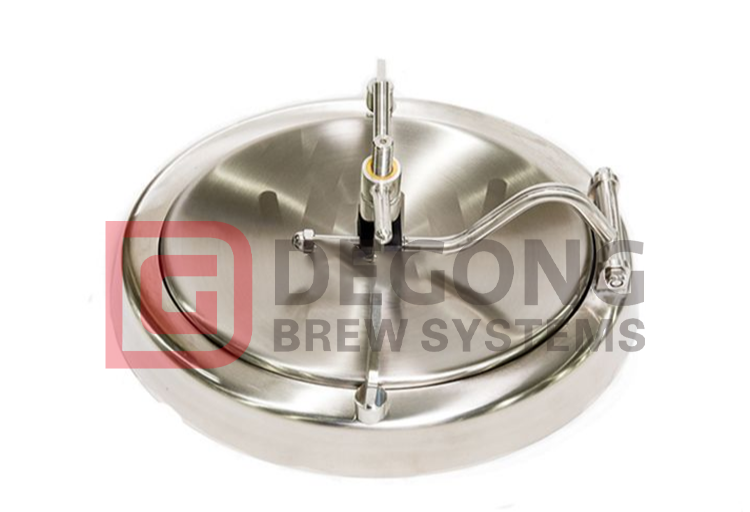

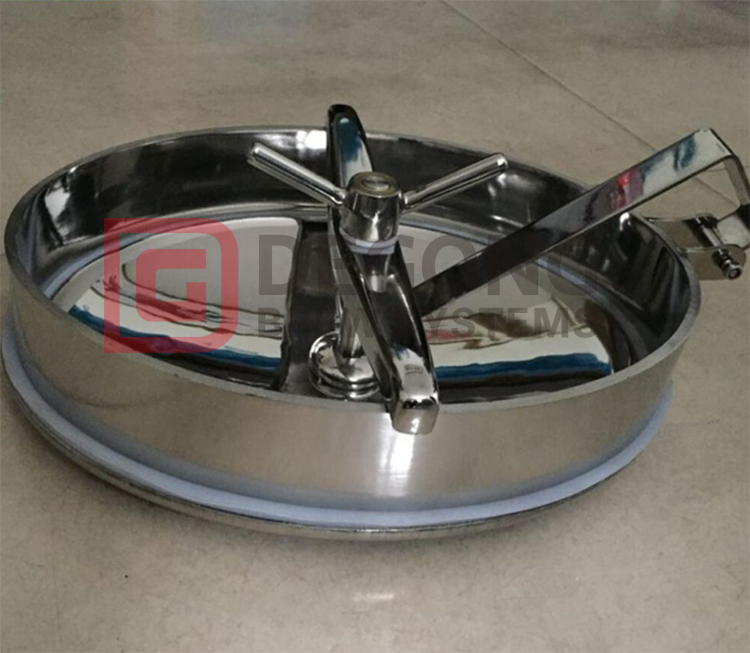

The manhole oval design mainly used in food, wine, beverage, pharmaceutical and other industries on the tank equipment.

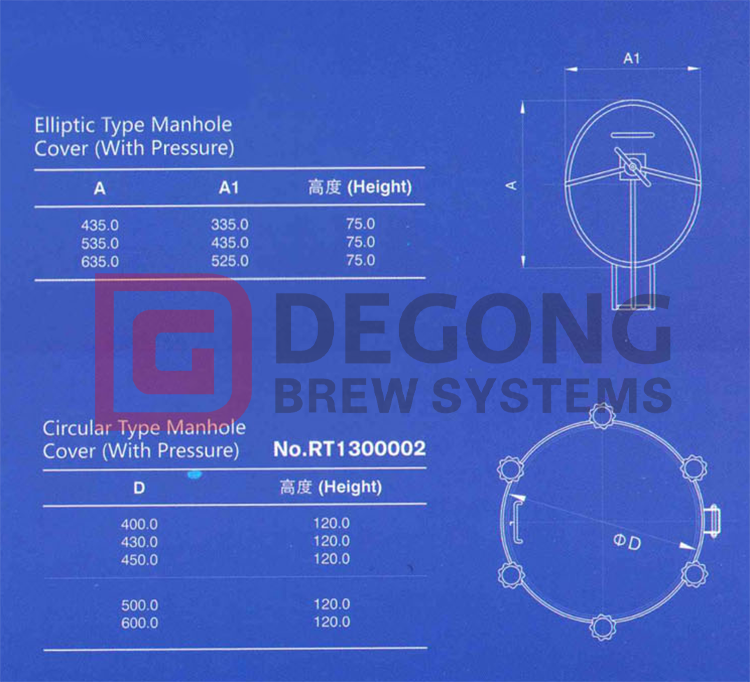

◎ Size: 435 * 335,530 * 430,635 * 525
◎ Height: 75,100,120,150

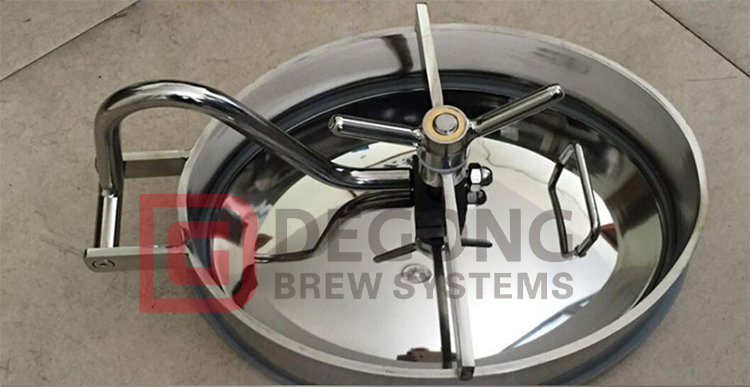

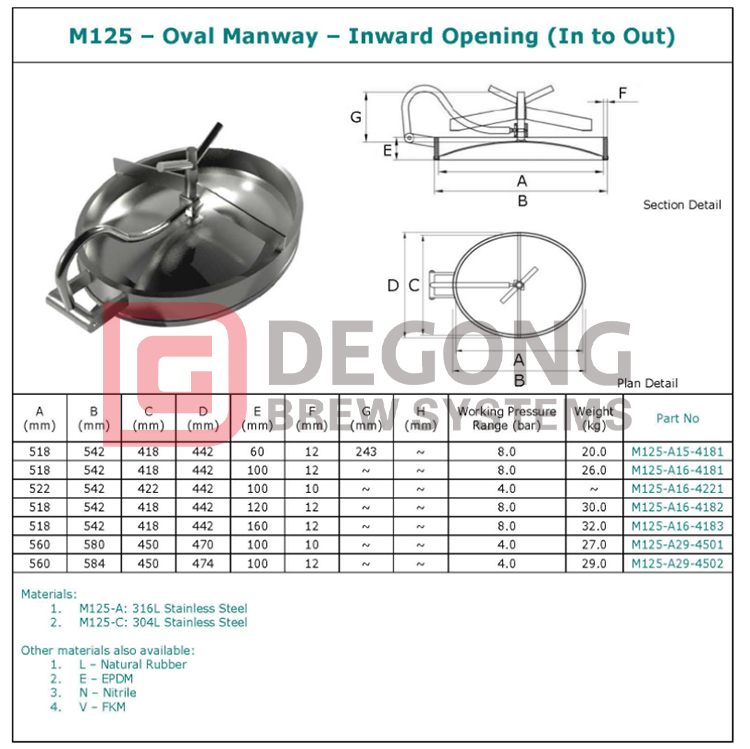

◎ Inward opening manhole cover
◎ Spanner type handle, hand wheel handle
◎ Internal surface: Ra0.8μm-0.5μm
◎ Outer surfaces: Mirror polish,Matt finish, sand-blasting
◎ Max. pressure: 3.0bar
◎ Gasket: EPDM, NBR, SILICON, FPM conform toFDA177.2600
◎ Material: AISI304 (1.4301) / 316L (1.4404)
◎ Certification: 3-A-84-02; FDA177.2600
Introduction：
The manhole is a safety emergency ventilation device installed on the top of the storage tank. It is usually used in conjunction with fire extinguishers and mechanical breathing valves. It can not only avoid accidents caused by sudden overpressure or vacuum in the tank due to accidents, but also damage to the storage tank. It is a safety device to protect the storage tank, and it is a safety device to protect the storage tank. It is especially suitable for the vaulted atmospheric tank with nitrogen topped by the storage material. It has the advantages of constant pressure discharge, constant pressure suction, flexible opening and closing, safe fire resistance, compact structure, good sealing performance, safety and reliability.
The manhole has been shaped and the diameter is generally 600mm. The center of the manhole is generally 750mm from the ground. It is convenient for the staff to enter and exit the fuel tank or ventilate during installation, cleaning and maintenance.
One of the holes should be located near the right side of the oil inlet and outlet pipes, and try to make the manhole face the closed door of the fuel tank chamber, so that people can enter and exit, repair the fuel tank and take over the fuel tank. Ventilation duct.
DEGONG's Tanks Manway products are exported to the world, using the most exquisite technology to create the best products, if you need or are interested in our products, please contact us!
